San Marino Oil Tank Domes - Clear-Span Covers for Compact European Sites

Not every storage project is a coastal terminal with room to spare. Inland European sites - industrial estates, hillside depots, fuel distribution yards - work with tight footprints, neighbouring buildings and planning constraints that limit both tank height and construction method. On those sites the roof choice matters more, not less: there is no room for a second tank during maintenance, so the roof has to stay serviceable for as long as possible without an outage.

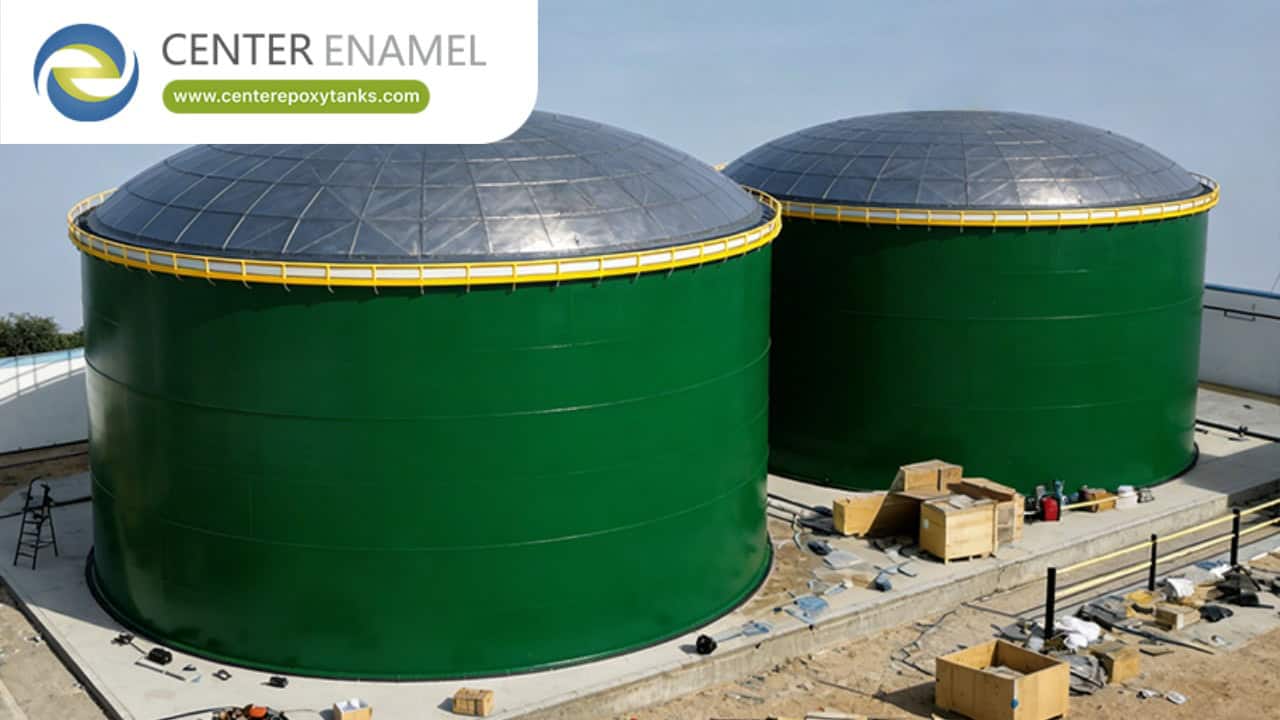

That is the case for a clear-span aluminium dome. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), the dome is delivered as factory-cut, factory-drilled members that can be assembled in a constrained yard without heavy lift plant or site welding - a decisive advantage where access is narrow and neighbouring operations must keep running.

1. What Suits a Compact European Tank Site?

A roof that arrives as a kit of parts, assembles without hot work, and never needs recoating. Compact sites cannot absorb the laydown area, craneage and outage length that a welded steel roof replacement demands.

· Kit-of-Parts Delivery: Factory-cut and drilled members arrive identified and packed in erection sequence, minimising laydown area on a tight site.

· No Hot Work: Bolted assembly removes welding permits, fire watch and the associated constraints near neighbouring operations.

· Reduced Craneage: Light aluminium members can often be handled with smaller mobile cranes than an equivalent steel roof lift.

· No Future Recoating Outage: The absence of a repainting campaign matters most where there is no spare tank to receive the product.

· Quiet, Clean Erection: Assembly generates no grit-blasting dust or coating fumes, which matters on shared industrial sites.

2. Which Codes Apply, and How Does Seismic Design Enter?

European projects are typically designed to EN 14015 with Eurocode load combinations, while the dome itself is checked against API 650 Appendix G or the equivalent Eurocode treatment. Seismic action is taken from the national annex for the site, and it governs the shell compression ring rather than the dome members.

· EN 14015: The common European specification for site-built vertical cylindrical welded steel tanks for liquid storage.

· Eurocode Loads: Wind, snow and seismic actions are taken from the relevant Eurocode parts and the national annex for the site.

· API 650 Appendix G: The primary reference for structurally supported aluminium dome roofs on steel tanks.

· Seismic Sloshing: Liquid sloshing and impulsive loads are assessed for the tank, and the roof is checked for the resulting vertical and lateral demand.

· Compression Ring Check: Seismic and dome thrust are combined in the shell ring check, which usually governs whether strengthening is needed.

3. How Does the Dome Handle Alpine and Mediterranean Conditions?

By designing to the actual site values. That means snow load on the dome, wind exposure on an open or sheltered site, thermal movement of the aluminium across the seasonal range, and drainage that will not pond.

· Snow Load: Roof geometry and member sizing take the site snow load; steeper rise reduces accumulation.

· Wind Exposure: Open sites and exposed ridges attract higher wind pressure and uplift, applied directly to the frame and its fixings.

· Thermal Movement: Aluminium's expansion coefficient is higher than steel's, and the gasketed joint system is detailed to absorb it.

· Drainage: Roof drainage is arranged so water cannot pond and overload the frame after heavy rain.

· Coastal Salt: Where the site is near the Adriatic, alloy selection and gasket material are reviewed for salt exposure.

Engineering Assurance and Project Support

Every welded oil tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is designed to API 650 with shell courses sized by the one-foot method and checked for wind, seismic and hydrostatic load cases, or to EN 14015 and the Eurocodes where the site is European. Shell plate is shot-blasted to Sa 2.5 and coated to a documented dry film thickness, longitudinal and annular plate welds are examined by radiography or ultrasonic testing to the acceptance level written into the purchase order, and every tank is hydrostatically tested and dimensionally surveyed before hand-over. For European deliveries we prepare an erection sequence matched to the available laydown area, supply members packed in assembly order, and provide the load calculations and material certificates needed for the project's technical file.

"On small European sites the constraint is never the dome - it is the yard. So we design the dome to be assembled, not built."

Frequently Asked Questions (FAQ)

Can an aluminium dome be erected on a very constrained site?

Yes, and this is one of its main advantages. Members arrive factory-cut and drilled, packed in erection sequence, so the laydown area is a fraction of what plate and rafters require. Because assembly is bolted, there is no welding plant, grit blasting or coating operation to accommodate, and lift weights are low enough for smaller mobile cranes.

Which design code is used for European projects?

Tanks are commonly designed to EN 14015 with Eurocode load combinations, and the dome is checked against API 650 Appendix G or an equivalent Eurocode treatment, depending on what the project specification requires. Snow, wind and seismic values are taken from the national annex for the specific site rather than from a generic table.

How is seismic performance addressed?

Seismic action for the site is applied to the tank, including liquid impulsive and sloshing components. The dome is then checked for the resulting demand, and the shell compression ring is verified for the combined seismic and dome thrust. Where the existing shell is inadequate, a strengthening design is provided as part of the package.

Can the dome be customised for our tank and location?

Yes. Span, rise, panel section, alloy and temper, gasket material, insulation, vents, manways, walkways, handrails and lightning protection are all engineered to your tank dimensions, product and the snow, wind and seismic values of your site.

·
