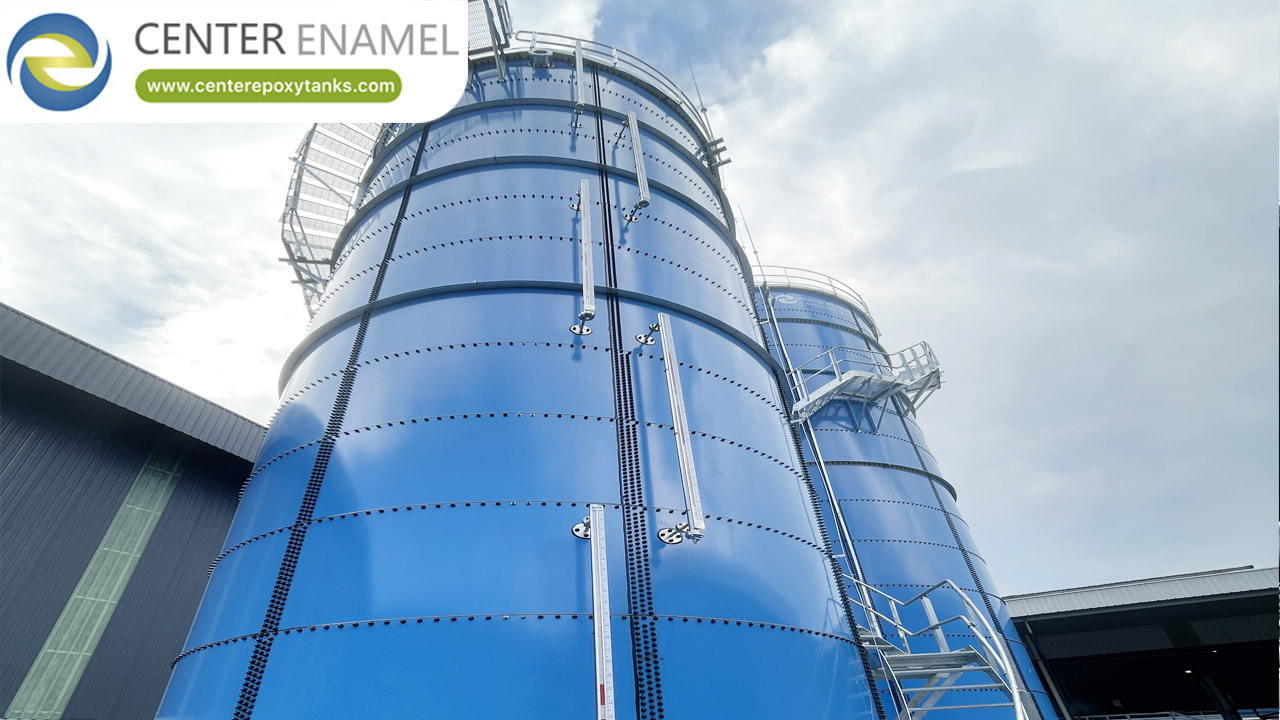

Quality Inspection of Epoxy Coated Steel Tanks: A Technical Guide
Ensuring the longevity and performance of epoxy coated steel tanks requires a rigorous quality inspection framework. Whether utilizing Fusion Bonded Epoxy (FBE) or traditional two-component liquid systems, inspections must occur throughout the production lifecycle—from surface preparation to final installation—to prevent premature failure, corrosion, and contamination [1.1.2, 1.3.3].
1. Surface Preparation Inspection
The foundation of a durable coating is the substrate preparation [1.1.1, 1.3.3]. Before coating application, inspectors must verify:
Surface Profile: Steel panels should typically be blast-cleaned to a SA 2.5 (Near-White Metal) finish to ensure optimal mechanical bonding [1.1.2].
Contamination Check: The surface must be free of oil, grease, dust, and moisture before any coating is applied [1.2.1, 1.3.3].
2. Coating Thickness Measurement
Uniform thickness is critical for corrosion resistance [1.1.2, 1.3.3]. Measurements should be taken at multiple points across each panel to ensure compliance with project specifications (typically measured in microns or mils) [1.1.2, 1.2.1].
Magnetic/Ultrasonic Gauges: Use calibrated instruments to measure dry-film thickness (DFT) accurately [1.1.2, 1.2.1].
Compliance: Ensure the thickness aligns with industry standards like AWWA D103 or ISO 28765 [1.1.2].
3. Holiday Testing (Discontinuity Detection)
A "holiday" is a microscopic void, pinhole, or crack in the coating that leaves the metal substrate exposed [1.3.1, 1.3.3]. Holiday testing is the most vital non-destructive test (NDT) for ensuring coating integrity [1.3.3].
High Voltage Testing: For coatings thicker than 200 microns (8 mils), high-voltage detectors are used to identify defects without damaging the intact coating [1.3.3].
Low Voltage (Wet Sponge) Testing: Used for thinner coatings (<500 microns) where high voltage might cause dielectric breakdown [1.3.3].
Voltage Calibration: It is essential to use the correct voltage (e.g., as specified in NACE SP0188) to ensure defects are detected without damaging the coating film [1.3.1, 1.3.3].
4. Adhesion and Durability Testing
To confirm that the epoxy has bonded correctly to the steel, specialized mechanical tests are performed [1.2.1]:
Cross-Cut/Knife Adhesion Test: A quick field method to assess how easily the coating can be lifted from the substrate [1.2.1].
Pull-Off Adhesion Test: A quantitative test that measures the exact force required to detach the coating, providing a clear pass/fail metric [1.2.1].
Impact and Abrasion Resistance: Laboratory tests (such as ASTM D4060) ensure the coating can withstand physical wear during transport and installation [1.1.2, 1.2.1].
Performance and Durability Standards
Quality inspection should always be benchmarked against recognized international standards to ensure reliability in aggressive environments [1.1.2]:
Test Category | Standard | Purpose |
Coating Performance | ISO 28765 / AWWA D103 | Ensures durability for storage tanks [1.1.2] |
Holiday Detection | NACE SP0188 | Detects pinholes and coating voids [1.3.3] |
Abrasion Resistance | ASTM D4060 | Measures resistance to wear [1.1.2] |
Corrosion Resistance | ISO 9227 (Salt Spray) | Evaluates performance in corrosive environments [1.1.2] |
Frequently Asked Questions (FAQ)
What is a "holiday" in epoxy coating inspection?
A holiday is a discontinuity, such as a pinhole, void, or thin spot, in the protective coating [1.3.1, 1.3.3]. These defects create a path for moisture and oxygen to reach the steel, leading to premature corrosion [1.3.1, 1.3.3].
Can holiday testing damage the coating?
No, when performed correctly using calibrated equipment, holiday testing is a non-destructive method [1.3.3]. It is critical to use the voltage range specified for your coating’s thickness to avoid dielectric breakdown [1.3.1, 1.3.3].
How often should epoxy tanks be inspected?
Tanks should undergo thorough inspections before shipping, after installation, and during scheduled maintenance cycles. High-criticality applications often require 100% surface inspection during the quality control phase [1.3.3].
Why is surface preparation the most important step?
If the steel is not properly cleaned or profiled, the epoxy cannot achieve a proper chemical or mechanical bond, regardless of how well it is applied, leading to peeling or blistering later [1.1.1, 1.3.3].
