Oil Storage Tanks External Floating Roofs: EFR Engineering Essentials

The external floating roof is the workhorse of large crude and product storage because it leaves the deck fully exposed and the vapor space fully gone. That simplicity is also its vulnerability: everything that protects the deck from wind, rain, and punctures is engineered into the deck itself, with no fixed roof above to share the load.

An external floating roof tank carries a buoyant deck open to the weather and rides the liquid surface, eliminating the vapor headspace on tanks above roughly 1,500 m3. Pontoon or double-deck construction, a primary plus secondary rim seal, and a wind-rated deck with controlled drains are the engineering essentials that keep it safe and compliant.

1. What Defines an EFR Tank

An EFR is distinguished by an open deck with no fixed roof above it. That single feature removes the headspace and shifts every structural and weather load onto the deck assembly. EFR is the standard choice from about 1,500 m3 upward in crude and product service, where the open deck gives the cleanest possible emission profile.

· Open deck: No fixed roof means maximum vapor-space removal and the simplest emission profile of any roof type.

· Buoyancy: The deck floats on the product, so its weight is carried by displacement, not by shell supports.

· Size fit: EFR is the standard choice from about 1,500 m3 upward in crude and product service.

· Weather exposure: Rain, snow, and wind act directly on the deck, driving drain and stability design.

· No internal mix: With no enclosed vapor blanket, the internal explosion pathway is largely removed.

2. Pontoon vs Double Deck

The deck type is a buoyancy-versus-robustness trade. Pontoon decks are lighter and cheaper; double decks survive puncture and carry maintenance traffic, which matters on busy terminals. A double deck typically adds 10-20 % to first cost but removes the single point of buoyancy loss, so it is favored where a deck failure is not an option.

· Pontoon: Sealed compartments around the perimeter give buoyancy; light and economical for straightforward service.

· Double deck: A full top and bottom skin spans the diameter; a punctured compartment still floats and crew can walk it.

· Rain load: Double decks shed ponding better and resist the localized overload that can dip a pontoon deck.

· Maintenance access: Terminals that inspect or sample from the deck prefer double decks for the walking surface.

· Cost: Pontoon decks win on first cost; double decks win on lifecycle resilience.

3. Stability and Seals

An EFR lives or dies by rim seal and deck stability. Wind can lift or tilt an under-designed deck, and a single seal forfeits most of the emission gain. Rim-seal emissions are cut by 90 % or more with a primary plus secondary seal, while deck freeboard of 150-300 mm keeps the deck from bridging under gusts.

· Wind stability: Deck legs, guides, and adequate freeboard keep the deck from bridging or tilting under gusts.

· Rim seal: Primary plus secondary seals close the annulus and cut rim emissions by 90 percent or more.

· Deck drain: Articulated or swing drains remove rainwater so the deck does not pond, freeze, or overload.

· Guide poles: Centering and guide poles keep the deck aligned in the shell without creating leak paths.

· Emergency rim: Rim vents protect the deck against over-pressure if it bridges during a fast drawdown.

Engineering Assurance and Project Support

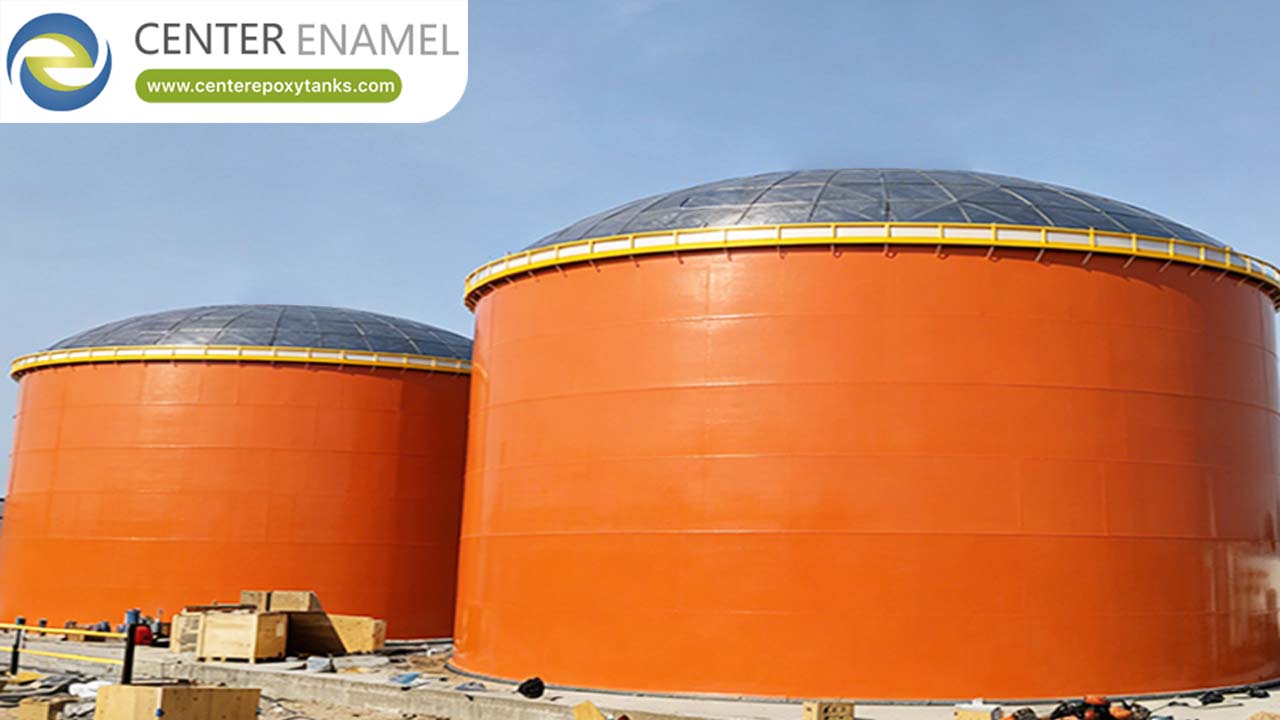

Every welded oil tank delivered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is designed to API 650 with shell courses sized by the one-foot method and checked for wind, seismic and hydrostatic load cases, or to EN 14015 and the Eurocodes where the site is European. Shell plate is shot-blasted to Sa 2.5 and coated to a documented dry film thickness, longitudinal and annular plate welds are examined by radiography or ultrasonic testing to the acceptance level written into the purchase order, and every tank is hydrostatically tested and dimensionally surveyed before hand-over.  Deck type, seal specification, and wind-stability calculations are delivered with the tank so the EFR basis can be reviewed against API 650 before and after erection.

An external deck has no roof above it to hide a design error; the wind, the rain, and the seal are all the protection it gets, so they must be right the first time.

Frequently Asked Questions (FAQ)

What defines an external floating roof tank?

It is a tank whose buoyant deck is open to the weather and rides the liquid surface, leaving no vapor headspace. EFR is the standard choice from about 1,500 m3 upward in crude and product service, with all weather and stability loads carried by the deck itself.

How do pontoon and double-deck EFR designs differ?

Pontoon decks use sealed perimeter compartments, are lighter and cheaper, and suit simple service. Double decks have a full top and bottom skin, survive a punctured compartment, and carry maintenance traffic, winning on lifecycle resilience at higher first cost.

What keeps an external deck stable in wind?

Deck legs, centering guides, and adequate freeboard prevent bridging or tilting under gusts, while rim vents protect the deck if it bridges during a fast drawdown. Stability is checked as a dedicated load case, separate from the product load.

Which seals make an EFR tank compliant?

A primary seal (mechanical shoe or liquid-mounted) plus a secondary seal at the deck-to-shell rim typically cuts rim emissions by 90 percent or more. Liquid-mounted primary seals perform best on high-volatility products like gasoline and naphtha.

·
