Internal Floating Roofs for Storage Tanks: The Ultimate Solution for Emission Control
Why are Internal Floating Roofs (IFR) essential for modern storage tanks? In the industrial storage of volatile liquids, an IFR serves as the primary barrier against product loss and environmental contamination. By floating directly on the liquid surface, the IFR eliminates the vapor space (gas-phase zone) where evaporation occurs. This mechanical suppression reduces Volatile Organic Compound (VOC) emissions by up to 99%, significantly enhancing fire safety and ensuring compliance with global environmental regulations.
1. Engineering Principles: API 650 Appendix H Compliance
Center Enamel’s IFR systems are engineered to meet the world’s most stringent technical standards, ensuring structural reliability under varying hydraulic conditions.
● Buoyancy Safety Factor: Per API 650 Appendix H, our roofs are designed with a buoyancy factor that allows the deck to remain afloat even if two adjacent buoyant compartments are breached.
● Material Versatility: We offer IFRs in high-strength 6000-series aluminum and 304/316 stainless steel, providing customized corrosion resistance for everything from refined fuels to aggressive chemicals.
● Rim Seal Integrity: The interface between the floating roof and the tank shell is secured with precision-engineered mechanical shoe seals or flexible wiper seals, eliminating "rim losses"—the most common source of tank emissions.
2. Types of Internal Floating Roof Designs
Selecting the right architecture is critical for optimizing the Total Cost of Ownership (TCO) of your storage facility:
Design Type | Mechanical Structure | Primary Benefit |
Full Contact IFR | Honeycombed or compartmentalized panels. | Zero vapor space; highest emission control. |
Skin & Pontoon IFR | Lightweight deck supported by pontoons. | Highly cost-effective; excellent buoyancy. |
Hybrid Systems | Custom-engineered composite structures. | Specialized for extreme chemical compatibility. |

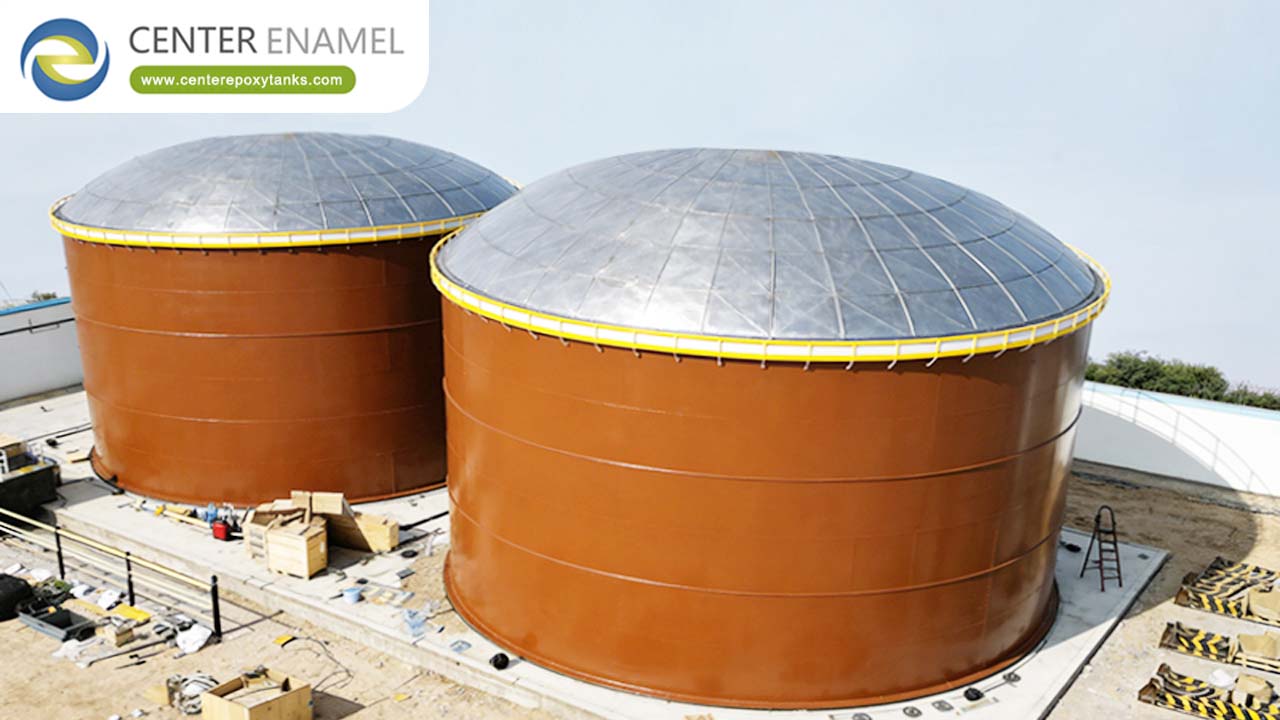

3. The Synergy of IFRs and Aluminum Geodesic Domes
For facilities aiming for "Zero-Emission" targets, Center Enamel recommends the integration of an Internal Floating Roof with an Aluminum Geodesic Dome.
● No Internal Columns: The self-supporting nature of the geodesic dome eliminates the need for internal support columns. This allows the IFR to float without the need for column "well" penetrations—removing potential leak points and maximizing vapor suppression.
● Enhanced Protection: The dome protects the IFR from wind-induced sloshing and rainwater accumulation, ensuring the floating system operates at peak efficiency for a 30-year+ service life.
4. Proven Global Project Performance
With over 10,000 installations in 100+ countries, Center Enamel’s IFR technology is a verified global benchmark:
● India (2024): 3 industrial fire water tanks totaling 12,261 m³, featuring integrated covers for critical infrastructure reliability.
● Namibia (2022): 4 massive tanks totaling 44,900 m³, where integrated cover technology protects water purity and prevents thermal stratification.
● Panama (2024): Fire water and hydrocarbon storage project (φ6.88*7.2m) demonstrating rapid-deployment IFR technology.
● Swaziland (2020): Large-scale wastewater storage with 2 tanks totaling 42,188 m³, utilizing advanced coatings and covers for aggressive media.
5. Why Partner with Center Enamel?
As the worldwide leader in storage and cover solutions, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) provides a comprehensive EPC approach.
● Factory-Controlled Quality: All IFR components are CNC-fabricated in our 150,000 m² automated facility, ensuring sub-millimeter tolerances for a perfect fit.
● Modular Logistics: Our components are modularly packed for cost-effective international shipping, reducing on-site assembly time by up to 50%.
● Expert Supervision: We provide full technical support, from initial buoyancy calculations and seal selection to on-site assembly supervision.
