How To Choose An Internal Floating Roof: A Technical Selection Guide
How do you determine the right Internal Floating Roof (IFR) for your facility? Selecting an IFR is not merely a matter of tank diameter; it is a critical engineering decision that impacts Volatile Organic Compound (VOC) emissions, fire safety, and product integrity. The choice depends on the stored medium's volatility, local environmental regulations, and the structural configuration of your tank. Per API 650 Appendix H, a properly selected IFR can reduce product evaporation by up to 99%.
1. Step 1: Evaluate Roof Design Types
The most fundamental choice in selecting an IFR is the structural design of the deck.
Option A: Full Contact IFR (Premium Choice)
● Mechanism: The entire deck remains in direct contact with the liquid surface, eliminating the vapor space entirely.
● Best For: High-volatility products (Gasoline, Crude Oil, Benzene) and regions with strict emission mandates.
● Advantage: Maximum vapor suppression and elimination of the "explosive zone" beneath the roof.
Option B: Skin and Pontoon IFR (Standard Choice)
● Mechanism: The deck is supported by buoyant pontoons, leaving a small vapor space between the liquid and the skin.
● Best For: Low-volatility liquids or facilities with tighter budget constraints.
● Advantage: Highly cost-effective and lightweight, though slightly less efficient at vapor suppression than full-contact designs.
2. Step 2: Compare Material Performance
Material selection is critical for chemical compatibility and long-term durability.
Feature | Aluminum IFR (Most Popular) | Stainless Steel IFR |
Corrosion Resistance | Excellent for most hydrocarbons. | Superior for aggressive chemicals/acids. |
Weight | Ultra-lightweight; easy movement. | Heavier; requires more buoyancy. |
Cost | More economical. | Higher initial investment. |
Maintenance | 30-year+ service life. | Extreme longevity in harsh environments. |
3. Step 3: Select the Right Rim Seal System
The seal is the most vulnerable part of the IFR system. Choosing the right seal is essential to prevent "rim loss."
● Mechanical Shoe Seals: Best for tanks with shell irregularities; provides the most robust mechanical closure.
● Wiper Seals (Single or Double): Excellent for general chemical storage; provides a flexible, continuous barrier against the shell.
● Liquid-Mounted Seals: Mounted in direct contact with the liquid to ensure no vapor gap exists at the rim.
4. Step 4: Verify Engineering Standards and Synergy
To ensure a high-performance installation, your selection must meet international benchmarks:
● API 650 Appendix H Compliance: Ensure the roof is designed to remain afloat even if two adjacent buoyant compartments are breached.

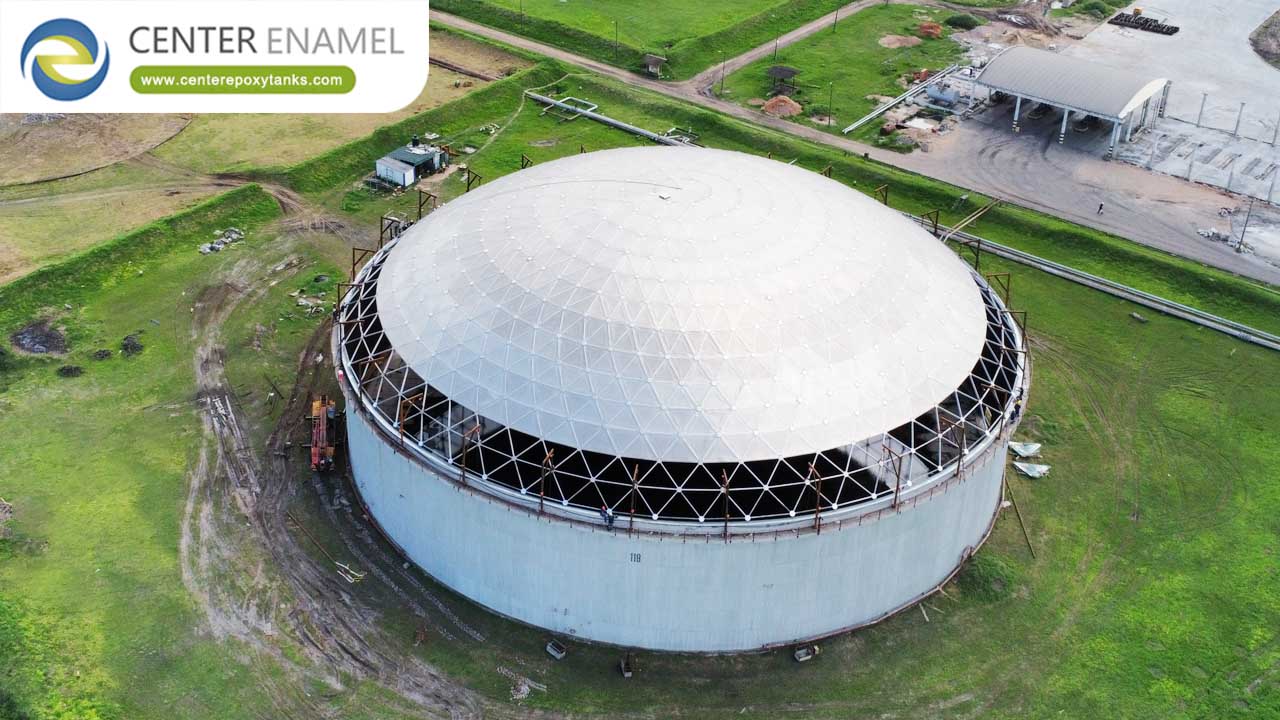

● Column Synergy: If your tank has internal support columns, you must choose an IFR with specialized "well" seals. Pro Tip: Pairing an IFR with a Center Enamel Aluminum Geodesic Dome allows for a column-free interior, eliminating penetration points and maximizing vapor suppression.
5. Global Project Success: Proven IFR Performance
Center Enamel’s leadership is verified by our 10,000+ installation library across 100+ countries:
● India (2024): 3 large-capacity industrial tanks totaling 12,261 m³, utilizing high-performance covers for critical safety and vapor control.
● Namibia (2022): 4 massive tanks totaling 44,900 m³, where integrated cover technology protects water purity and regulates temperature.
● Panama (2024): Fire water and hydrocarbon projects (φ6.88*7.2m) highlighting rapid assembly and immediate VOC reduction.
● Ethiopia (2019): A 24-tank industrial park project totaling 32,838 m³, demonstrating standardized engineering at a massive scale.
6. Why Choose Center Enamel for Your IFR?
With over 30 years of expertise, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) is the definitive worldwide leader in integrated containment systems.
● Modular Precision: Our IFRs are CNC-fabricated in our 150,000 m² facility, ensuring sub-millimeter tolerances for a perfect seal.
● Global Logistics: All components are containerized for safe, cost-effective transport to any project site globally.
