Materials for Welded Steel Tanks: Engineering Grades and Selection Guide

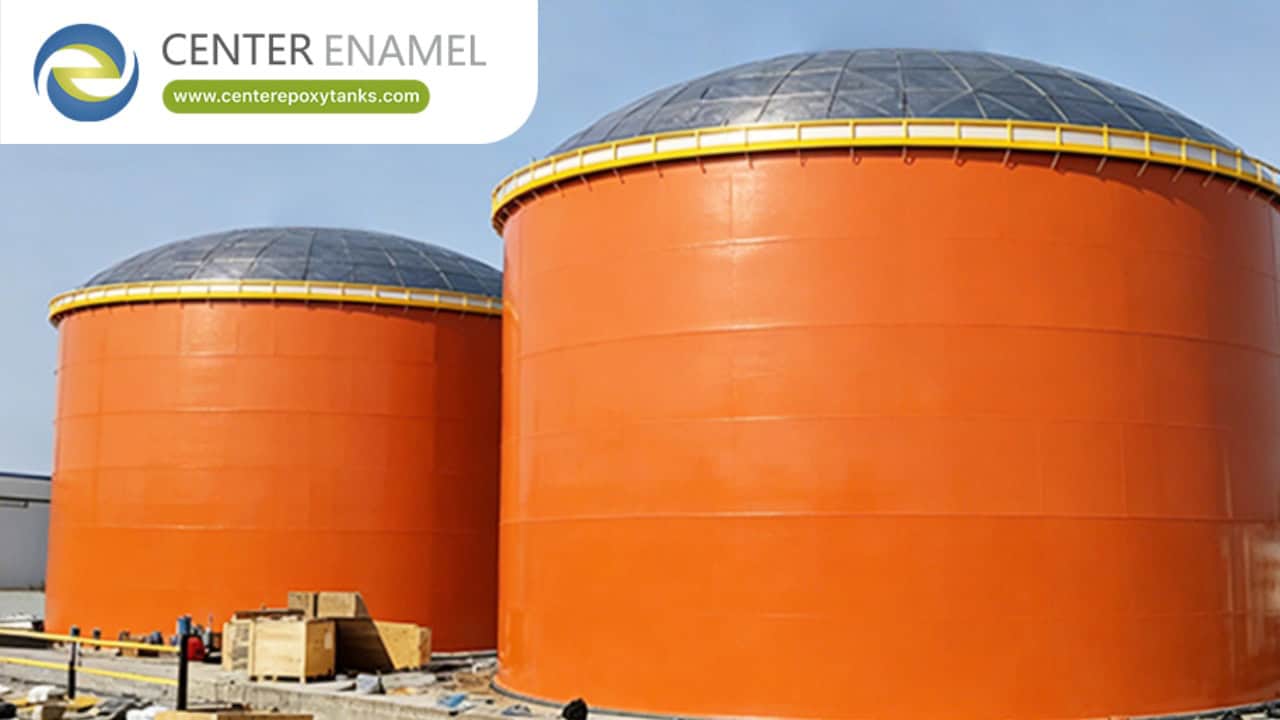

When designing and fabricating heavy-duty industrial storage vessels, choosing the correct construction material is vital for safety, structural integrity, and regulatory compliance. Welded steel tanks—widely deployed across petroleum terminals, chemical plants, and municipal water facilities—rely on specific metal plate grades to handle massive hydrostatic pressures, varied storage media, and environmental loads.
Governed globally by standards like API 650 for oil storage and AWWA D100 for water reservoirs, welded tank materials must balance mechanical strength, weldability, fracture toughness, and corrosion resistance.
1. Carbon Steel Plates (The Industry Workhorse)
Carbon steel is the most common and cost-effective material choice for large-scale welded storage vessels handling crude oil, fuel, wastewater, and general industrial liquids.
ASTM A36: Widely specified for shell courses, bottoms, and structural roofs under moderate operating conditions. It offers a dependable yield strength (~250 MPa / 36 ksi) and excellent cost-efficiency, though it requires impact testing in cold environments to prevent brittle fracture.
ASTM A516 (Grade 55, 60, 65, or 70): A premier pressure-vessel carbon steel grade optimized for moderate- and lower-temperature service. ASTM A516 Gr. 70 provides higher tensile strength (~485 MPa) and superior notch toughness, making it ideal for lower shell courses subjected to high liquid head pressures.
ASTM A537 (Class 1 & 2): Heat-treated carbon-manganese-silicon steel offering enhanced yield and tensile strength for taller, high-capacity industrial tanks.
2. Stainless Steel Grades (Corrosion Resistance and Purity)
When storing aggressive chemicals, high-purity water, or corrosive wastewater where carbon steel would rapidly degrade, stainless steel is selected.
Austenitic Grades (AISI 304 / 304L and 316 / 316L): Provide exceptional corrosion resistance without requiring internal protective linings. Grade 316L contains molybdenum, offering enhanced resistance to chlorides and pitting corrosion in marine or chemical environments.
Fabrication Precautions: Welding stainless steel requires strict adherence to clean fabrication practices, ensuring that tools and anti-weld splatter compounds are free of sulfur or chlorides to prevent intergranular stress corrosion.
Data Table: Welded Steel Tank Material Specification Matrix
Material Specification | Nominal Yield Strength | Primary Industrial Application | Governing Standards |
ASTM A36 | ~250 MPa (36 ksi) | General shell plates, bottoms, and structural framing | API 650, AWWA D100 |
ASTM A516 Gr. 70 | ~260–380 MPa (plate dependent) | Lower shell courses, higher-pressure vessels | API 650, ASME Sec. VIII |
ASTM A537 Cl. 2 | ~345–415 MPa | Large-capacity industrial tanks and high-stress zones | API 650 (Groups IV–VI) |
AISI 304 / 304L | ~205 MPa min. | Food processing, potable water, mild chemical storage | API 650 Annex S, AWWA D100 |
AISI 316 / 316L | ~220 MPa min. | Aggressive chemical containment, saline wastewater | API 650 Annex S, ASME |
3. Key Factors in Material Selection
Selecting the right plate material involves balancing several mechanical and environmental parameters:
Liquid Head and Stress Calculations: Lower shell courses bear the highest hydrostatic pressure, often requiring thicker plates or higher-strength steel groups under API 650 rules.
Design Metal Temperature (DMT): Operating environments dictate whether impact-tested steels are necessary to avoid brittle failure in sub-zero climates.
Corrosion Allowance: Engineers add a sacrificial thickness increment (corrosion allowance) to carbon steel plates to compensate for anticipated chemical wear over the tank's operational lifecycle.
Frequently Asked Questions (FAQ)
Q: What are the most common materials used for welded steel storage tanks?
A: Carbon steel plates—specifically ASTM A36 for general structural components and ASTM A516 Grade 70 for high-stress lower shell courses—are the most widely used materials due to their robust strength and cost-efficiency.
Q: When should stainless steel be chosen over carbon steel?
A: Stainless steel (such as Grade 304 or 316L) is selected when storing corrosive chemicals, high-purity liquids, or wastewater that would cause rapid rust and degradation in uncoated carbon steel.
Q: Do welded tank materials require impact testing?
A: Yes. Depending on the plate thickness, material group, and Minimum Design Metal Temperature (MDMT), API 650 mandates impact testing to ensure the steel possesses sufficient notch toughness against brittle fracture in cold climates.
Q: How does plate thickness affect welded tank design?
A: Under API 650, standard carbon steel shell plates are limited to a maximum thickness of 45 mm (1.75 inches). If structural stress demands thicker walls, higher-strength steel groups must be specified.
