How to Design a Crude Oil Storage Tank: A Step-by-Step Guide
Designing a crude oil storage tank is a precision-driven process governed by the API 650 standard for welded, aboveground storage tanks. Engineering a robust, long-term asset requires balancing capacity, material science, and environmental risk.
1. Define Design Parameters & Capacity
Before mechanical design begins, you must establish the operational requirements.
Required Capacity: Determine the target volume in barrels (bbl) or cubic meters.
Fluid Properties: Identify the specific gravity of the crude oil to account for hydrostatic pressure.
Environmental Data: Define site-specific seismic zone coefficients, wind speeds, and temperature ranges.
2. Select Material and Construction Method
Most atmospheric crude oil tanks use carbon steel due to its balance of strength and cost.
Shell Materials: Select steel grades based on toughness and temperature requirements (API 650, Annex M for high temperatures).
Corrosion Allowance: Add a sacrificial layer of thickness (usually 3mm or 1/8") to the design to account for future metal loss.
3. Calculate Shell Thickness
The shell is the primary containment vessel. API 650 provides specific methods for calculating the required thickness of each course (ring) of steel plates.
One-Foot Method (1FM): Used for standard tanks up to 61 meters in diameter; calculates thickness at 1 foot above the bottom of each shell course.
Variable-Design-Point Method (VDPM): A refined calculation for larger tanks where shell restraint significantly impacts the required thickness.

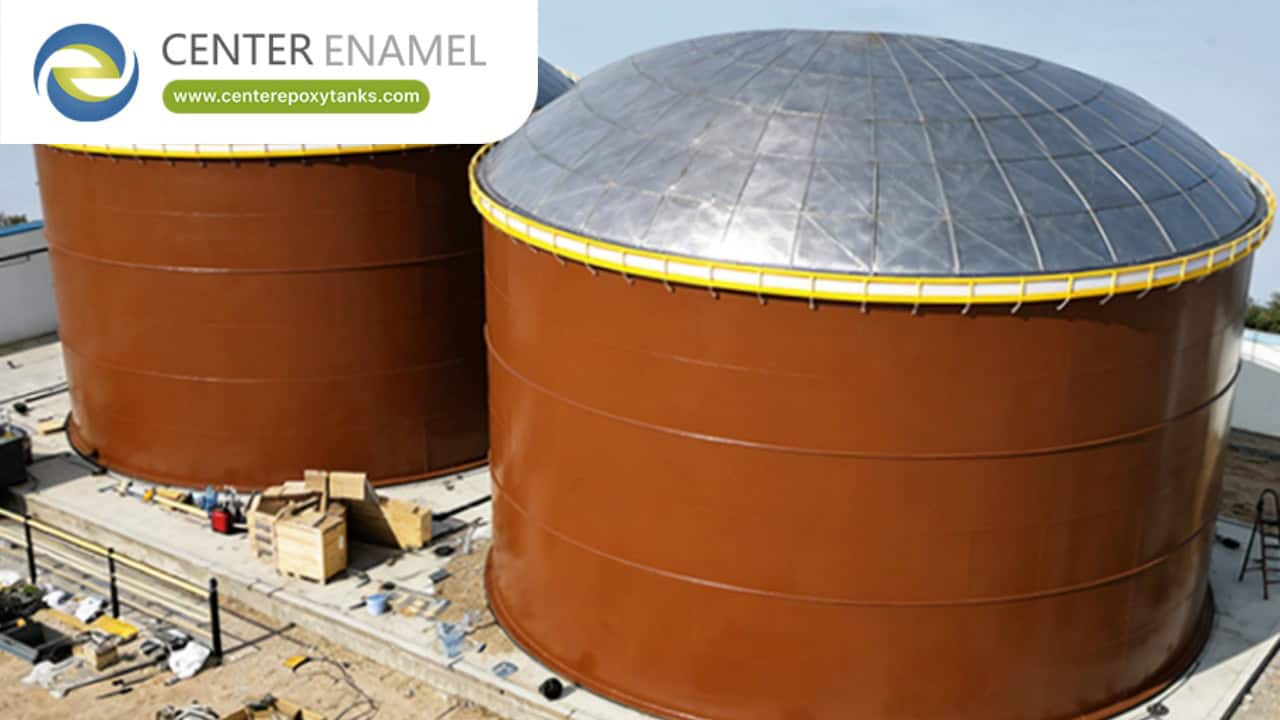

4. Choose the Roof Configuration
The roof design is dictated by the volatility of the crude oil.
Roof Type | Best For | Benefit |
External Floating Roof (EFR) | High Volatility Crude | Reduces evaporation losses by >90%; mitigates fire risk. |
Internal Floating Roof | Sensitive Refined Products | Combines weather protection with vapor suppression. |
Fixed Roof (Cone/Dome) | Low Volatility/Heavy Oil | Lower cost; requires Vapor Recovery Unit (VRU) if VOC emissions are a concern. |
5. Ensure Structural Integrity and Safety
The final design must pass rigorous verification:
Foundation Design: Ensure the foundation (ring wall or slab) supports the hydrostatic load of the filled tank without settlement.
Nozzle Reinforcement: API 650 mandates specific reinforcement for all shell openings (manways, piping) to maintain structural integrity.
Testing Protocols: Design includes hydrostatic testing (filling with water) to confirm structural integrity and non-destructive examination (NDE) of all critical welds.
Frequently Asked Questions (FAQ)
What is the difference between API 650 and API 620?
API 650 governs atmospheric storage tanks (internal pressure $le$ 2.5 psi). API 620 is used for larger, low-pressure storage tanks (up to 15 psi), often required for more volatile substances or cryogenic storage.
Why is the "1-Foot Method" important in tank design?
The 1-foot method is the standard membrane theory approach to determine the minimum required thickness of the shell plates, accounting for the highest liquid pressure at the base of each section.
How do I prevent corrosion in crude oil tanks?
Beyond adding a corrosion allowance to the plate thickness, design engineers must specify protective linings (API 652) and cathodic protection systems (API 651) to preserve the tank bottom and shell.
What is the critical spacing between tanks in a tank farm?
Safety spacing is dictated by NFPA 30 and local codes, typically requiring a minimum shell-to-shell distance (often 0.5 times the diameter of the larger tank) to prevent a "domino effect" during a fire.
For a deeper dive into the technical parameters, watch this API 650 design training overview to see how engineers apply these standards in real-world scenarios. This video is highly relevant as it visualizes the theoretical shell and roof calculations discussed above, making it an excellent resource for project engineers.
