How Floating Roof Storage Tanks Work: The Engineering Principles of Vapor Control
In the 2026 industrial landscape, the floating roof storage tank is the definitive solution for storing volatile liquids like crude oil and gasoline. Unlike fixed-roof tanks, which have a permanent "vapor space" above the liquid, a floating roof tank utilizes a buoyant deck that sits directly on the product surface.
This simple mechanical shift eliminates the air-liquid interface, reducing evaporative losses by up to 99% and virtually removing the risk of internal tank explosions.
1. The Core Principle: Buoyancy and Vapor Suppression
The fundamental mechanics of a floating roof rely on Archimedes' Principle. The roof is engineered to be lighter than the liquid it sits upon, allowing it to rise and fall dynamically as the tank is filled or emptied.
By keeping the roof in constant contact with the liquid, the "ullage" (the space where vapors accumulate) is eliminated. This prevents "breathing losses" caused by temperature changes and "filling losses" caused by air displacement during liquid transfer.
2. Types of Floating Roof Systems
Internal Floating Roof (IFR)
An IFR tank features a floating deck inside a permanent fixed-roof tank.
● How it works: The fixed roof protects the product from the environment (rain, snow, wind), while the internal deck suppresses vapors.
● Synergy: Center Enamel often pairs IFRs with Aluminum Geodesic Dome Roofs to provide a column-free interior that allows the roof to move unobstructed.
External Floating Roof (EFR)

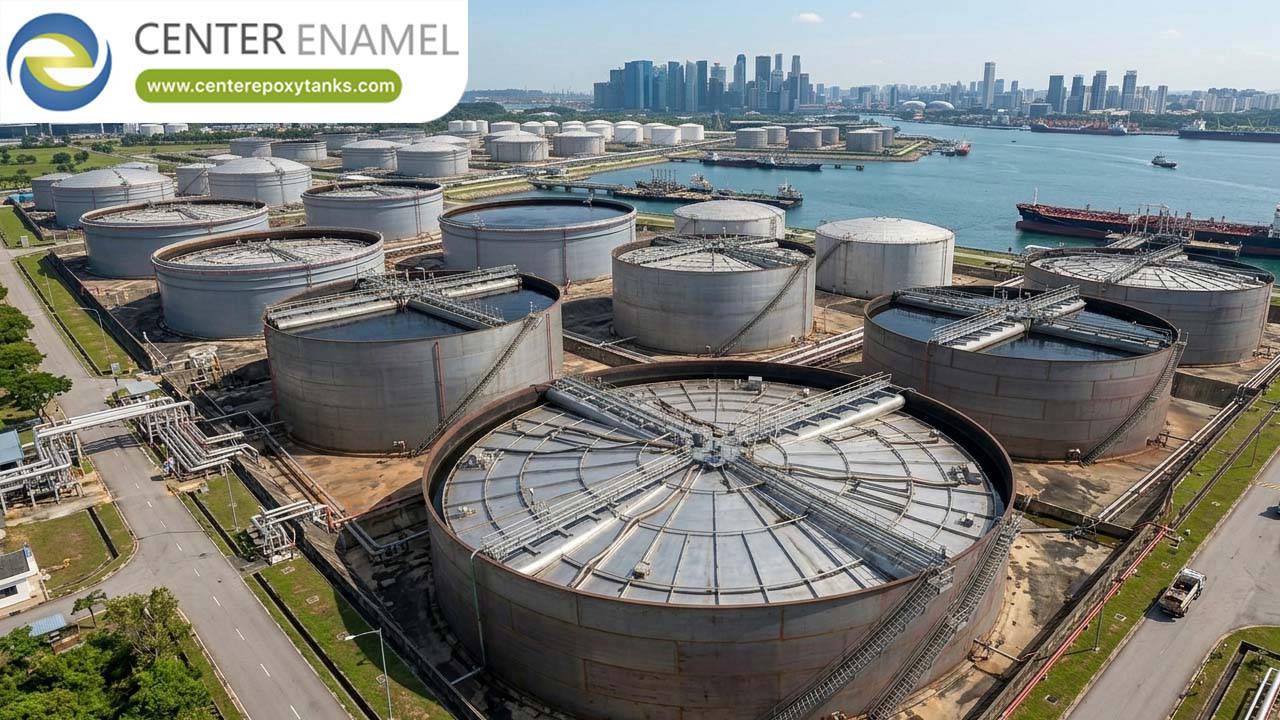

An EFR tank has no fixed roof; the floating deck is the only cover, exposed to the atmosphere.
● How it works: These are typically large-diameter tanks. The roof includes sophisticated drainage systems to prevent rainwater from sinking the deck and secondary seals to protect against wind-driven vapor loss.
3. Essential Mechanical Components
To maintain "Topical Authority," we must identify the four critical sub-systems that allow a floating roof to function safely:
A. Seal Systems (The Rim Seal)
The most critical component is the seal between the floating roof and the tank shell.
● Mechanical Shoe Seals: Use metallic plates held against the shell by springs.
● Resilient Toroidal Seals: Use liquid or vapor-filled "logs" to provide a flexible, gas-tight barrier.
B. Buoyancy Units (Pontoons)
Floating roofs are typically made of welded steel or aluminum and are supported by compartmentalized pontoons. Per API 650 standards, the roof must remain buoyant even if two adjacent pontoon compartments are punctured.
C. Guide Poles and Anti-Rotation
To prevent the roof from rotating or drifting as it moves, it is secured by guide poles (often used for sampling and level gauging) and anti-rotation cables.
D. Drainage Systems
Exclusively for EFRs, primary drains (flexible hoses or articulated pipes) carry rainwater from the top of the roof to the outside of the tank to prevent structural overloading.
4. Why Compliance Matters: API 650 Appendix H & C
Modern floating roof tanks are governed by the American Petroleum Institute (API) standards.
● Appendix C: Covers External Floating Roofs.
● Appendix H: Covers Internal Floating Roofs.
These standards ensure that the materials, welding, and buoyancy calculations meet 2026 safety and environmental (ESG) mandates for VOC (Volatile Organic Compound) mitigation.
5. The Center Enamel Advantage
As a global leader with over 30 years of experience in 100+ countries, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) integrates advanced manufacturing with custom engineering.
1. Precision Fabrication: Automated CNC production ensures perfect shell-to-seal alignment.
2. Material Innovation: We offer Aluminum, Stainless Steel, and Carbon Steel floating roofs tailored to the stored medium.
3. Digital Simulation: We use Finite Element Analysis (FEA) to model roof stability under extreme fill rates and seismic events.
A Critical Asset for Efficiency
Understanding how floating roof storage tanks work is essential for optimizing refinery and terminal operations. By eliminating vapor space, these tanks protect the environment, ensure worker safety, and preserve valuable product.
