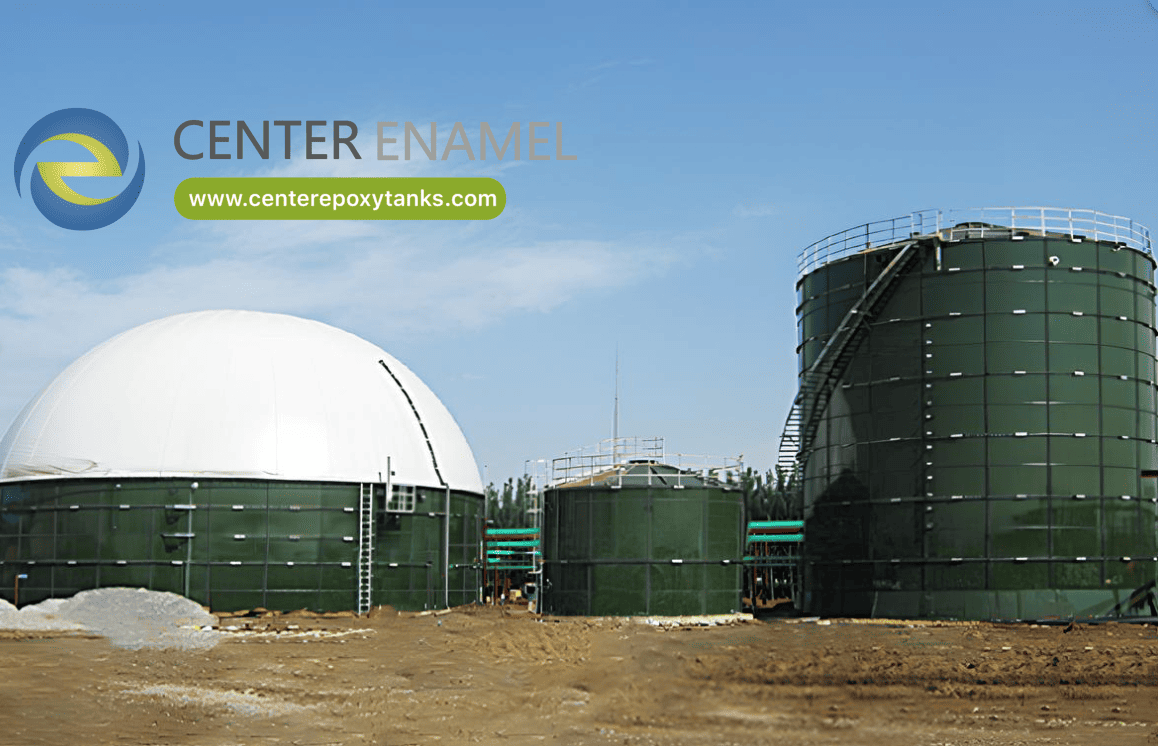

Biogas Storage Tanks and Double Membrane Covers: Engineering Renewable Energy Integrity
Biogas storage tanks are high-integrity containment systems designed for the anaerobic digestion of organic waste. Utilizing Glass-Fused-to-Steel (GFS) and Fusion Bonded Epoxy (FBE) technologies, these tanks offer superior resistance to Hydrogen Sulfide (H_2S) and methane (CH_4) permeability. When integrated with Double Membrane Covers, these systems provide variable-volume storage and pneumatic pressure regulation, ensuring zero-leakage and compliance with ISO 28765 and AWWA D103-09. As a global leading manufacturer, Center Enamel delivers EPC biogas solutions that maximize methane yield and operational safety in 100+ countries.
1. Technical Performance & Biogas Lifecycle Matrix
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Tank Technology | Glass-Fused-to-Steel (GFS) / FBE | pH 2-13 resistance; impervious to H_2S corrosion. |
Cover Type | Integrated Double Membrane Roof | Pneumatic pressure control; variable gas storage. |
Methane Permeability | < 400 cm3/m2 cdot d cdot bar | Minimizes energy loss; prevents GHG emissions. |
Standard Compliance | ISO 28765 / AWWA D103 / EN 1090 | Mandatory for structural and pressure safety. |
Design Life | 30 to 50 Years | Exceptional ROI; resistant to biogenic acidification. |
Safety Features | Hydraulic Pressure/Vacuum Relief Valves | Prevents tank rupture or collapse during gas surges. |
2. Engineering for Energy Recovery: The Membrane & Tank Synergy
Advanced Corrosion Mitigation in GFS & FBE
Biogas production involves aggressive chemical environments.
● GFS Superiority: Center Enamel’s GFS tanks fuse glass to steel at 820°C–930°C, creating a chemically inert surface that resists the biogenic sulfuric acid typical in anaerobic digesters.
● FBE Resilience: For industrial biogas applications, our FBE technology provides a high-density thermoset polymer barrier that prevents under-film corrosion, ensuring the structural steel remains isolated from the corrosive slurry.

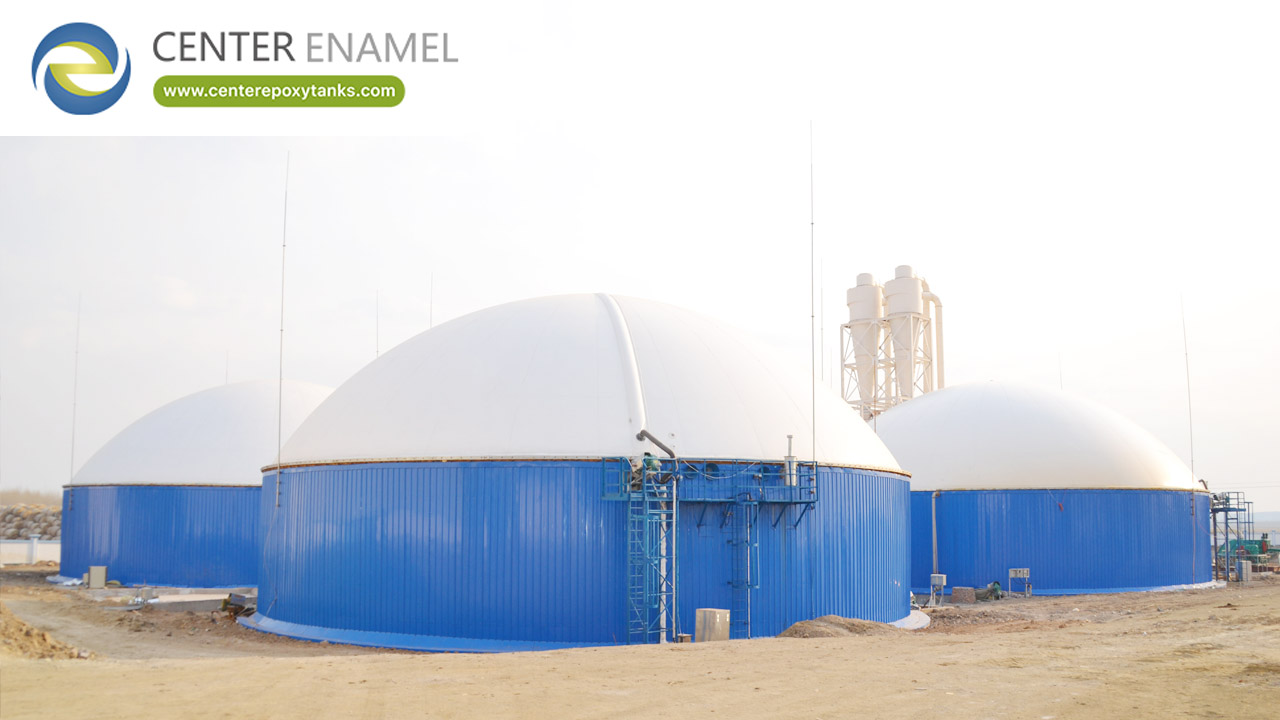

The Physics of Double Membrane Gas Holders
● Pneumatic Stability: The outer membrane is continuously pressurized by an air blower to provide structural rigidity against wind and snow loads.
● Variable Storage (The Gas Lung): The inner membrane serves as the primary gas barrier. It expands and contracts based on real-time gas production and consumption, allowing facilities to buffer gas for peak demand in Combined Heat and Power (CHP) units.
3. Strategic Applications in the Circular Economy
● Agricultural Waste-to-Energy: Converting livestock manure and crop residues into renewable electricity and high-quality bio-fertilizer.
● Municipal Wastewater Treatment (WWTP): Utilizing anaerobic digestion to reduce sludge volume while generating enough biogas to power the facility's operations.
● Industrial Organic Waste: Processing byproducts from food and beverage plants to reduce landfill disposal costs and lower the corporate carbon footprint.
● Landfill Gas Capture: Providing modular buffering tanks to stabilize the flow of captured methane before it is refined into Renewable Natural Gas (RNG).
4. Why Partner with Center Enamel? The Global EPC Leader
As a Global Leading China Biogas Tank Manufacturer, Shijiazhuang Zhengzhong Technology Co., Ltd offers a unique technological advantage:
● 30-Year Innovation Heritage: The first GFS manufacturer in China with over 100 patents and 30,000 successful projects worldwide.
● Precision CNC Fabrication: Our 150,000 m2 facility utilizes automated production lines to ensure every component meets ISO 9001 and EN 1090 structural standards.
● Integrated System Design: We design both the bolted tank and the double membrane cover as a singular, engineered system, ensuring 100% mechanical compatibility and airtight performance.
● Global Support: Comprehensive management of international shipping to 100+ countries, with professional on-site technical supervision for rapid, error-free erection.
5. Technical FAQ: Biogas Infrastructure Strategy
Q: How does the system handle high-pressure fluctuations?
A: We integrate Finite Element Analysis (FEA) to ensure the tank shell and modular joints can withstand dynamic internal pressures. Our double membrane roofs provide a pneumatic "buffer" that regulates pressure safely.
Q: What is the maintenance cycle for a GFS biogas tank?
A: Extremely low. The glass-fused surface is self-cleaning and does not require recoating. We recommend an annual inspection of the mechanical safety valves and membrane integrity to ensure a 30-50 year operational life.
Q: Can these tanks be retrofitted with different roof types?
A: Yes. Our modular bolted design allows for the installation of Aluminum Geodesic Domes or Single Membrane Covers if the facility's operational requirements change over time.
