Galvanized steel harvested rainwater tanks are modular, high-capacity storage solutions engineered to mitigate water scarcity and manage urban stormwater runoff. Utilizing high-strength carbon steel protected by a Hot-Dip Galvanized (HDG) zinc coating, these tanks provide superior cathodic protection against atmospheric corrosion. Center Enamel specializes in bolted galvanized tanks compliant with AWWA D103-09 and ASCE 7-22, offering a sustainable, 100% recyclable alternative to concrete. With clear-span capacities reaching thousands of cubic meters, Center Enamel supports decentralized water security for municipal, industrial, and agricultural sectors in 100+ countries.
. This matrix establishes the mechanical benchmarks for Center Enamel’s galvanized tank technology.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Design Standard | AWWA D103-09 / ISO 28765 | Global benchmark for bolted structural integrity. |
Coating Type | Hot-Dip Galvanized (HDG) Zinc | Provides sacrificial cathodic protection; resists rust. |
Service Life | 30 - 50 Years | High durability with minimal maintenance overhead. |
Load Resistance | ASCE 7-22 (Wind, Snow, Seismic) | Engineered for extreme weather and geological zones. |
Assembly Method | Modular Bolted (No On-Site Welding) | 60% faster installation; preserves coating integrity. |
Sustainability | 100% Recyclable Steel | Supports circular economy and LEED/ESG initiatives. |
Rainwater, while natural, can be slightly acidic or carry atmospheric pollutants. Galvanized steel manages this through a unique chemical defense:
● Sacrificial Anode Logic: The zinc coating acts as a "sacrificial anode." If the tank surface is scratched, the zinc will corrode in preference to the underlying steel, effectively "healing" the breach and preventing structural rust.
● Mechanical Bonding: Unlike paint, which sits on the surface, hot-dip galvanizing creates a metallurgical bond. The zinc-iron alloy layers are harder than the base steel, providing exceptional resistance to abrasion during transport and installation.
● Modular Bolted Integrity: Center Enamel’s bolted design utilizes high-tensile bolts and EPDM gaskets. By eliminating on-site welding, we prevent the "burning off" of the zinc coating, which is the primary failure point in welded galvanized structures.
● Urban Stormwater & Flood Mitigation: Capturing peak runoff in metropolitan "Sponge Cities" to prevent sewer overflows and flash flooding.
● Industrial Process & Cooling Water: Providing non-potable water for cooling towers and boiler feeds, significantly reducing municipal water utility costs.
● Agricultural Irrigation Security: Storing seasonal rainfall for use during dry spells, ensuring crop yields and livestock hydration in water-stressed regions.
● Remote Community Water Supply: Rapidly deployable tanks for decentralized drinking water projects (when paired with filtration) in areas lacking centralized infrastructure.
As a premier China manufacturer with over 30 years of specialization, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers a unique technological advantage:
● State-of-the-Art Precision: Our facility utilizes automated CNC drilling and laser cutting to ensure every panel meets 0.1mm tolerances for a perfect, leak-free fit.

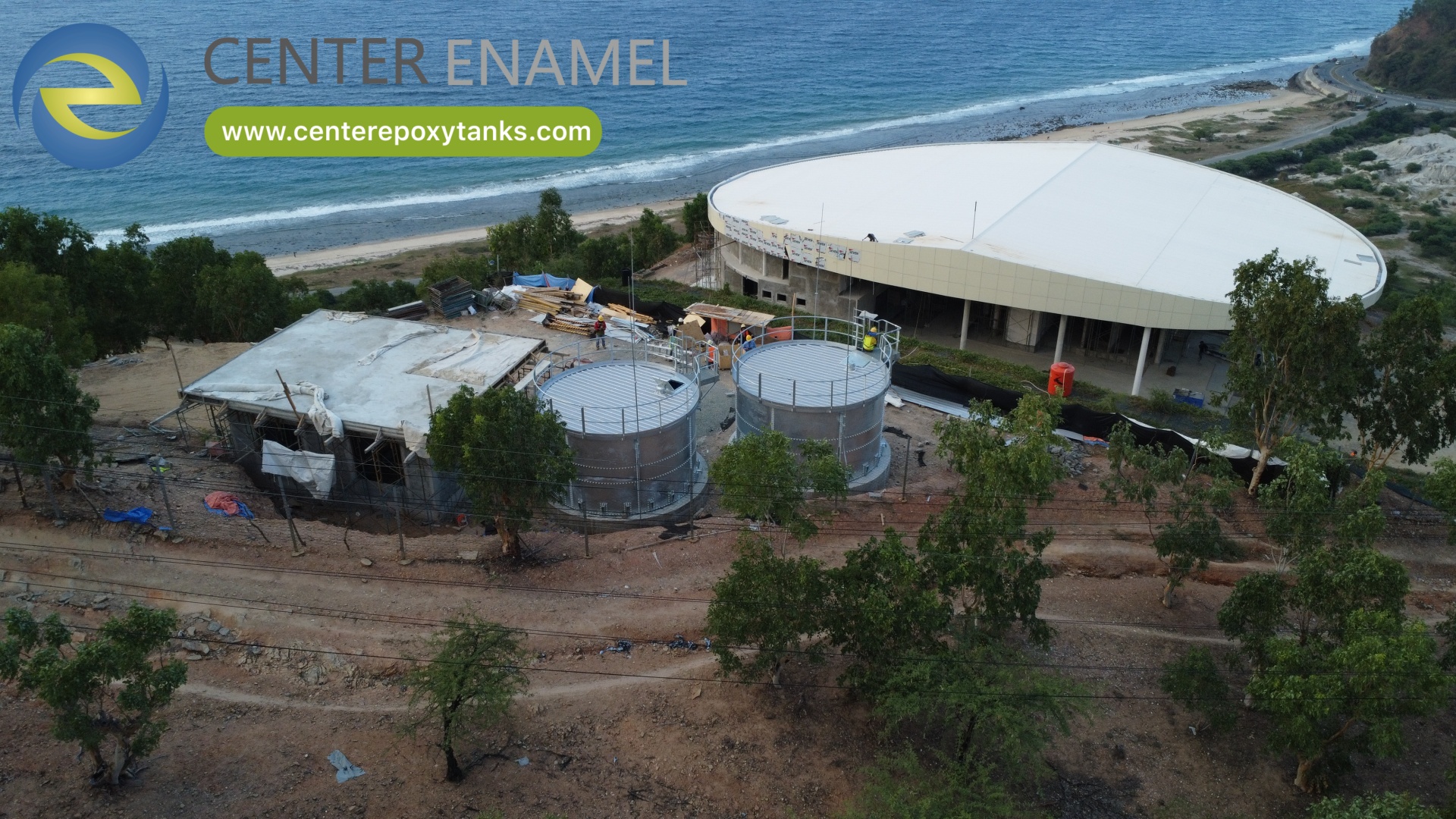

● Verified Global Footprint: From a 7,650 m3 project in Tanzania to municipal sewage works in Algeria and the Philippines, our tanks are field-proven in every climatic zone.
● Comprehensive Quality Control: Every component undergoes rigorous testing for coating thickness, adhesion, and dimensional accuracy before international shipping.
● Turnkey EPC Authority: We provide integrated support—from initial Finite Element Analysis (FEA) design to on-site installation supervision—ensuring a "Future-Ready" water asset.
Q: Is galvanized steel safe for storing drinking water?
A: Yes. When paired with our professional-grade, food-safe sealants (NSF/ANSI 61 compliant), galvanized tanks are an excellent solution for potable water storage, as proven in our projects in Mexico and Tanzania.
Q: How does the cost compare to concrete tanks?
A: While the material costs may be comparable, the "Total Installed Cost" of a Center Enamel bolted tank is typically 30-40% lower due to reduced site preparation, faster assembly, and lower labor requirements.
Q: Can the tank capacity be expanded later?
A: One of the primary benefits of the modular bolted design is scalability. If your rainwater harvesting requirements grow, additional rings can be added to the existing structure (subject to foundation capacity).
