Floating Roof Tanks: Advanced Engineering for VOC Emission Reduction
Floating roof tanks are the industry-standard solution for storing highly volatile petroleum products, such as crude oil, gasoline, and jet fuel. By maintaining a buoyant deck directly on the liquid surface, these tanks eliminate the vapor space (outage) where evaporation occurs, reducing Volatile Organic Compound (VOC) emissions by up to 98%. Center Enamel manufactures floating roofs in compliance with API 650 Appendix C and H, offering both External Floating Roofs (EFR) and Internal Floating Roofs (IFR). Utilizing advanced primary and secondary seal technologies, Center Enamel tanks ensure environmental regulatory compliance, fire safety, and significant product loss prevention in 100+ countries.
1. Technical Specification & Design Matrix
This matrix establishes the mechanical benchmarks for Center Enamel’s floating roof technology.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Design Standards | API 650 App. C (External) / App. H (Internal) | Mandatory for global refinery and terminal safety audits. |
Roof Type | Pontoon or Double-Deck (Non-Sinkable) | Ensures buoyancy even under localized compartment failure. |
Seal Systems | Mechanical Shoe / Liquid-Mounted / Wipe Seals | Triple-barrier protection against vapor migration. |
Drainage System | Articulated Pipe or Flexible Hose (EFR only) | Prevents rainwater accumulation on the floating deck. |
Emission Control | Up to 98% Reduction in VOCs | Critical for EPA, EU, and MEP environmental compliance. |
Material Grade | ASTM A36, A516 Gr. 70, or Aluminum Alloy | Optimized for chemical compatibility and roof weight. |
2. Structural Dynamics: The Physics of Vapor Suppression
Eliminating the Vapor Space
The primary driver of petroleum product loss is "breathing loss" and "working loss" caused by temperature fluctuations and filling cycles. Floating roofs mitigate this through:
● Direct Surface Contact: The roof "floats" on the liquid, effectively removing the air-vapor interface. Without a headspace, the liquid cannot reach its equilibrium vapor pressure, halting evaporation at the source.
● Rim Seal Integrity: The critical interface is the gap between the floating roof and the tank shell. Center Enamel utilizes high-performance Mechanical Shoe Seals and Secondary Wiper Seals (made of Teflon or Nitrile) to maintain a gas-tight barrier even during roof travel.
● Buoyancy Logic: Our pontoon-type roofs are divided into independent, liquid-tight compartments. This "unsinkable" design ensures that even if one compartment is breached, the roof maintains its structural level and seal integrity.
3. Comparative Architecture: EFR vs. IFR
Choosing the correct configuration is vital for asset protection:
● External Floating Roof Tanks (EFRT):
○ Configuration: No fixed roof; the floating deck is exposed to the elements.
○ Best For: Large-scale crude oil storage in moderate climates.
○ Feature: Requires sophisticated drainage systems to prevent rainwater from weighting down the deck.
● Internal Floating Roof Tanks (IFRT):

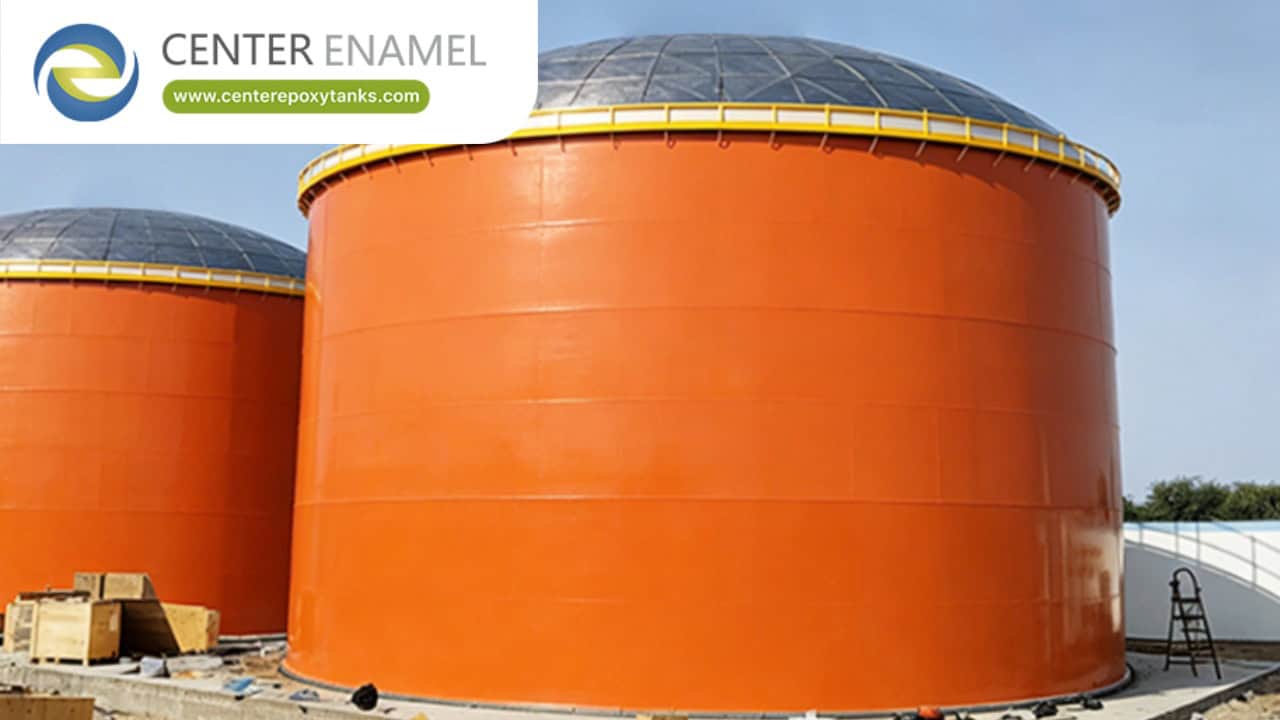

○ Configuration: A fixed cone or dome roof covers a lightweight floating internal deck.
○ Best For: High-purity refined products (gasoline, chemicals) and regions with heavy snow or rain.
○ Feature: The fixed roof protects the internal deck from wind and precipitation, further reducing seal wear and emissions.
4. Why Partner with Center Enamel?
As a global leader with over 30 years of R&D, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers a unique technological advantage:
● Advanced FEA Modeling: We utilize Finite Element Analysis (FEA) to calculate the stress on pontoons and seal tension, ensuring the roof travels smoothly without "binding" or "tilting" during high-flow filling cycles.
● Precision Modular Fabrication: Our facility utilizes automated welding and CNC cutting to ensure every roof component meets exact API 650 tolerances, facilitating rapid on-site assembly.
● Turnkey EPC Authority: We provide integrated solutions, including Glass-Fused-to-Steel (GFS), Fusion Bonded Epoxy (FBE), and Stainless Steel Bolted Tanks equipped with proprietary floating roof technology.
● Verified Global Reliability: With projects in over 100 countries, our engineering team adapts every solution to meet local seismic, wind, and environmental regulations
5. Technical FAQ: Floating Roof Implementation
Q: How does a floating roof improve fire safety?
A: By eliminating the vapor space, you remove the "fuel-air" mixture required for combustion. In the event of a rim seal fire, the fire is confined to a small peripheral area, making it significantly easier for integrated foam systems to extinguish.
Q: Can existing fixed-roof tanks be retrofitted with an internal floating roof?
A: Yes. Center Enamel specializes in "knock-down" internal floating roofs that can be brought through manways and assembled inside an existing tank, instantly converting it into a high-efficiency IFRT.
Q: What is the typical maintenance for the seal systems?
A: We recommend an annual visual inspection of the secondary seals and a full seal gap measurement every 5–10 years per API 653 standards. Our seals are designed for a 20-year service life in hydrocarbon environments.
