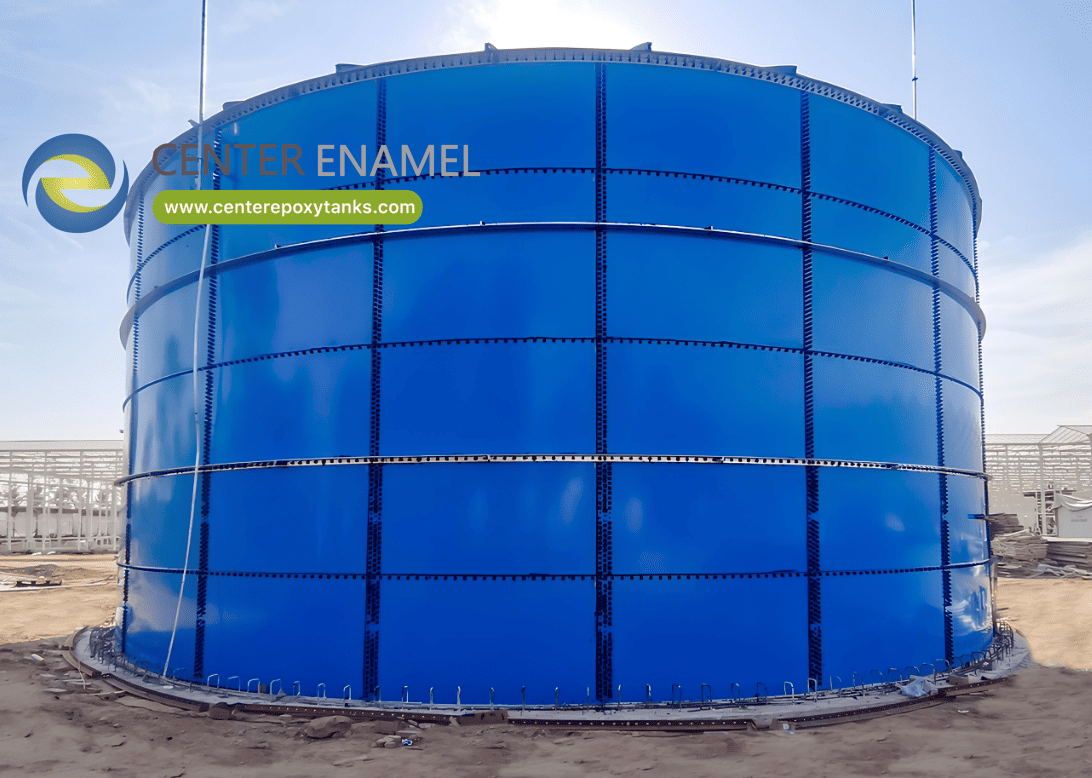

FBE Coated Tanks: Engineered Rust Protection for Industrial Storage
In high-stakes industrial and environmental applications, tank integrity is the primary safeguard against catastrophic failure. Fusion Bonded Epoxy (FBE) Coated Tanks have emerged as the definitive solution for industrial rust protection, offering a high-performance alternative to traditional painted steel and concrete.
Center Enamel specializes in the advanced electrostatic spray application of thermoset polymers, delivering storage systems engineered for the most aggressive wastewater, chemical, and hydrocarbon environments.
Engineering Insights: Technical Performance of FBE Coatings
The effectiveness of an FBE coating is defined by its Dry Film Thickness (DFT) and the chemical cross-linking achieved during the factory curing process. To ensure a 15–25 year service life, Center Enamel matches micron specifications to specific electrochemical stresses.
1. Micron Thickness Requirements by Environment
Application | Recommended DFT | Engineering Focus |
Potable Water | 200 – 300 microns | NSF/ANSI 61 compliance; moisture barrier. |
Wastewater Treatment | 400 – 600 microns | Resistance to H2S and organic acids. |
Crude Oil Storage | 300 – 500 microns | Hydrocarbon resistance; prevents sulfur corrosion. |
2. The Science of Thermoset Polymer Stability
Unlike liquid paints, FBE is a thermoset polymer applied to pre-heated steel (180°C – 250°C). This creates a permanent, three-dimensional molecular bond.
● Thermal Stability: Center Enamel FBE tanks operate safely up to 85°C (185°F) without coating delamination.
● Adhesion Strength: With pull-off strength exceeding 12 MPa (1700 psi), our liners withstand high-pressure industrial cleaning and abrasive flow.
Technical Comparison: FBE Bolted Steel vs. Reinforced Concrete
For procurement managers evaluating Total Cost of Ownership (TCO), the advantages of FBE technology over traditional concrete are significant.
Metric | FBE Bolted Steel Tanks | Reinforced Concrete |
Corrosion Resistance | Superior: Inert barrier against $H_2S$ and acids. | Poor: Susceptible to Microbial Induced Corrosion (MIC). |
Installation Speed | 60% Faster: Modular assembly; no onsite curing. | Slow: Requires 28-day curing and formwork. |
Maintenance Cycle | Minimal: No waterproofing or patching required. | High: Requires frequent crack injection and relining. |
Logistics | Containerized shipping to remote sites. | High-volume raw material transport. |
Precision Manufacturing: The Electrostatic Spray Process
The superior performance of fusion bonded epoxy storage is a result of a strictly controlled multi-stage fabrication process at our 100,000 m2 automated facility:
1. Surface Preparation: Steel panels undergo grit-blasting to a near-white metal finish (SSPC-SP10/NACE No. 2) for maximum adhesion.
2. Electrostatic Fusion: Charged epoxy powder is sprayed onto heated steel, melting and cross-linking into a seamless, high-dielectric barrier.
3. Holiday Testing: We utilize high-voltage DC detectors to scan 100% of the surface. This identifies microscopic "pinholes" or "holidays," ensuring the steel is 100% isolated from corrosive media before shipping.
Critical Factors Influencing Tank Lifecycle (15-25 Years)
To maximize the lifespan of a Fusion Bonded Epoxy storage asset, Center Enamel integrates secondary defense mechanisms:
● Cathodic Protection: We integrate sacrificial anodes to protect the steel at the molecular level, preventing "corrosion creep" if the coating suffers mechanical damage.
● Sealing Integrity: Our designs utilize high-grade EPDM or Nitrile gaskets that are chemically compatible with the stored medium and the FBE coating.
● Compliance: All tanks are engineered in strict accordance with AWWA D103-09 and ISO 9001:2015 standards.
Global Expertise in Industrial Liquid Containment
Center Enamel is Asia's most experienced manufacturer of bolted tanks, providing customized solutions for:
● Chemical Storage: Preventing the degradation of aggressive industrial materials.
● Fuel & Oil: Resisting hydrocarbons and preventing soil-side corrosion.
● Agriculture: Secure storage for fertilizers and irrigation water.
