Epoxy Coated Bolted Tanks for Biogas Storage: Engineering High-Performance Anaerobic Digestion Systems
As the global transition toward renewable energy accelerates, anaerobic digestion (AD) has become a cornerstone technology for converting organic waste—including agricultural manure, food waste, and municipal sewage sludge—into valuable biogas and clean energy. However, the internal environment of an anaerobic digester or biogas storage vessel is exceptionally harsh. The biological breakdown process generates volatile organic acids, abrasive liquid sludges, and corrosive gases such as hydrogen sulfide (H2S) and carbon dioxide (CO2), which rapidly degrade standard metal and concrete infrastructure.

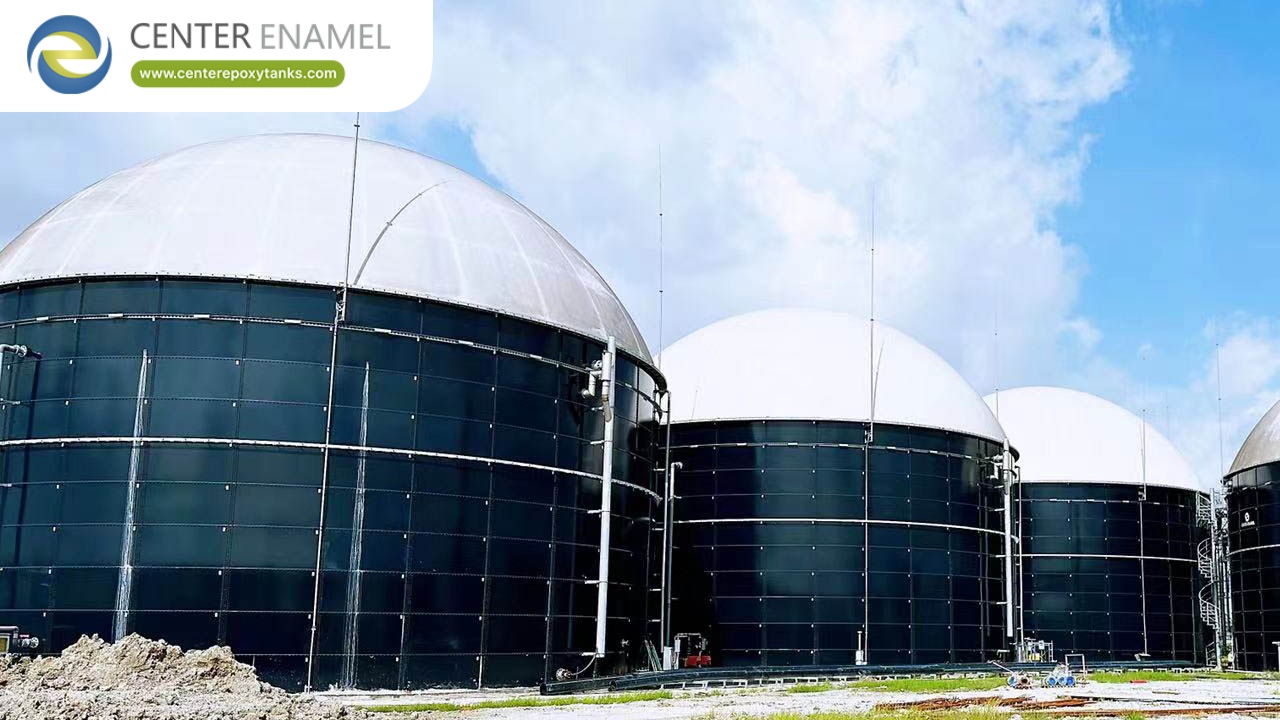

To meet the demand for long-lasting, cost-effective, and structurally reliable containment, renewable energy developers increasingly deploy epoxy coated bolted tanks for biogas storage. Featuring precision-engineered carbon steel panels protected by high-performance fusion-bonded epoxy (FBE) coatings, these modular tanks deliver unmatched chemical resistance and rapid structural deployment.
Core Engineering Principles and Coating Technology
The structural integrity and long-term viability of epoxy-coated bolted tanks depend on advanced industrial coating applications and precision manufacturing:
Fusion-Bonded Epoxy (FBE) Application: Steel plates undergo rigorous abrasive blast cleaning to white metal standards before being electrostatically coated with specialized thermosetting epoxy powder. These panels are then baked in a high-temperature thermal oven, causing the resin to melt, flow, and cross-link into a permanent, uniform polymer matrix chemically bonded to the steel substrate.
Modular Bolted Construction: Unlike cast-in-place concrete structures that require weeks of curing or field-welded tanks prone to on-site coating flaws, bolted tanks are manufactured in factory-controlled environments. Panels are shipped in compact packages and assembled on-site using high-tensile hardware and specialized gas-tight elastomeric or mastic sealants.
Resistance to Headspace Vapors and Liquid Sludge: High-grade FBE coatings provide a smooth, non-porous barrier across both the liquid phase (anaerobic sludge immersion) and the vapor headspace, protecting the structural shell from acid attack and sulfide corrosion.
Data Table: Comprehensive Comparison of Biogas Storage and Digester Technologies
Technical Parameter | Fusion-Bonded Epoxy (FBE) Bolted Tanks | Cast-in-Place Concrete Digesters | Traditional Field-Welded Steel Tanks |
Coating & Surface Integrity | Factory-controlled thermal fusion ensuring uniform thickness and zero pinholes | Relies on manual concrete finishing and porous surface matrices | Field-applied liquid paint vulnerable to weather delays and human error |
Corrosion Resistance in AD | Excellent resistance to organic acids, moisture, and H2S gas up to high PPM levels | Vulnerable to concrete spalling, rebar corrosion, and biogas permeation | High susceptibility to blistering, peeling, and weld corrosion over time |
Installation Speed & Labor | Rapid modular bolting completed in weeks with minimal heavy equipment | Slow civil construction requiring weeks of framing and concrete curing | Complex field welding, crane staging, and on-site coating work |
Modularity & Scalability | High; bolted panel design allows straightforward capacity expansion or relocation | Permanent monolithic structure; impossible to expand without rebuilding | Rigid welded structure; difficult to alter or modify safely |
Frequently Asked Questions (FAQ)
Q: What are epoxy coated bolted tanks used for in biogas projects?
A: They are utilized primarily as anaerobic digesters, buffer tanks, leachate reservoirs, and secondary biogas containment structures, providing a chemically inert and structurally sound environment for organic waste breakdown.
Q: How do epoxy-coated tanks withstand corrosive biogas environments like hydrogen sulfide (H2S)?
A: High-performance fusion-bonded epoxy (FBE) coatings form an impenetrable, cross-linked polymer barrier that shields the underlying carbon steel from aggressive organic acids, moisture, and sulfide gases generated during anaerobic digestion.
Q: Why are bolted steel tanks preferred over concrete for anaerobic digesters?
A: Bolted steel tanks offer significantly faster installation times, predictable factory quality control, lower lifecycle maintenance overhead, and the unique flexibility to expand or modify tank capacity as the biogas facility grows.
Q: What is the expected service life of an epoxy-coated bolted biogas tank?
A: When engineered to international standards (such as ISO 28765 or AWWA D103) and subjected to routine maintenance, high-quality fusion-bonded epoxy tanks provide decades of reliable, corrosion-resistant operation.
