Double Membrane Roofs for Chicken Litter Anaerobic Digestion Tanks
Intensive poultry farming operations generate massive volumes of chicken litter—a high-potency mixture of poultry manure, feathers, spilled feed, and carbon-based bedding materials such as wood shavings or rice hulls. While chicken litter possesses a remarkably high organic load and strong methane-producing potential, its complex chemical composition (including elevated nitrogen and uric acid levels) makes it one of the most challenging feedstocks to process.
When managed in open-air lagoons or poorly sealed facilities, poultry waste releases heavy concentrations of greenhouse gases and foul odors. However, implementing closed-system anaerobic digestion (AD) transforms this environmental challenge into a profitable bioenergy asset. At the apex of these advanced digestion tanks, double membrane roofs serve as the definitive technology for capturing, storing, and regulating the resulting biogas safely and efficiently.
The Engineering Challenges of Poultry Manure Biogas Containment
Processing chicken litter through Continuous Stirred-Tank Reactors (CSTR) or dry-batch anaerobic systems creates an aggressive internal operating environment. As bacteria break down proteins and organic polymers, the breakdown products yield significant concentrations of moisture, hydrogen sulfide ($H_2S$), and ammonia gas.
Standard storage roofs and unlined metal covers degrade rapidly under these corrosive conditions. Furthermore, poultry feeding cycles and batch loading schedules create highly fluctuating biogas generation rates, demanding a flexible, robust storage mechanism that can buffer daily volume spikes without risking overpressurization or gas leakage.
The Anatomy of Double Membrane Biogas Roofs
A double-membrane gasholder roof operates on a sophisticated dual-layer structural principle designed specifically to handle variable agricultural gas yields:
The Inner Membrane: Suspended inside the tank headspace, the inner bladder expands and contracts dynamically to match live biogas production and withdrawal cycles, functioning as an airtight primary containment barrier.
The Outer Membrane: Continuously inflated by an automated low-pressure blower system, the outer layer forms a taut, aerodynamic dome that protects the system from rain, wind, and snow loads while applying a steady, uniform positive pressure onto the inner gas bladder.
The Inter-Membrane Air Space: Pressurized air maintained between the two layers ensures structural stability and provides consistent, reliable gas delivery pressure downstream to farm boilers or combined heat and power (CHP) generators.
Technical Performance Matrix: Biogas Containment Technologies for Poultry Waste
Technical Parameter | Double Membrane Biogas Roofs | Fixed Concrete Slab Covers | Fixed Carbon Steel Tank Roofs | Open-Air Manure Lagoons |
Biogas Storage Integration | Integrated dual-purpose structure; acts as both roof and active gas holder | Requires a separate, costly external gas storage tank | Requires external gas storage or lacks gas collection entirely | Zero gas capture; massive atmospheric methane emissions |
Corrosion Resistance ($H_2S$ & Ammonia) | Superior; high-tenacity PVC/PVDF coated fabrics resist moisture and corrosive trace gases | Moderate; vulnerable to concrete carbonation and acid gas attack over time | Low; highly vulnerable to pitting and wall thinning from sulfur/ammonia vapor | N/A |
Volumetric Flexibility | Dynamic variable-volume adjustment matching live poultry production cycles | Static volume capacity with fixed headspace | Rigid configuration with limited pressure buffering capacity | Zero flexibility |
Odor & Fugitive Emission Control | 100% gas-tight hermetic sealing eliminates farm odor complaints and fugitive emissions | Good odor containment, but lacks integrated gas management | Good odor control if fully gasketed | Severe odor pollution and regional air quality issues |
Key Operational Advantages for Poultry Farms
1. Superior Resistance to Harsh Agricultural Gases
Because chicken litter generates high levels of ammonia and sulfur compounds, double membrane roofs are fabricated using advanced, high-tenacity polyester fabrics coated with specialized PVC/PVDF layers. These materials are chemically inert, highly resistant to UV radiation, and treated with anti-fungal agents to prevent degradation in humid, corrosive agricultural environments.
2. Elimination of Internal Support Columns

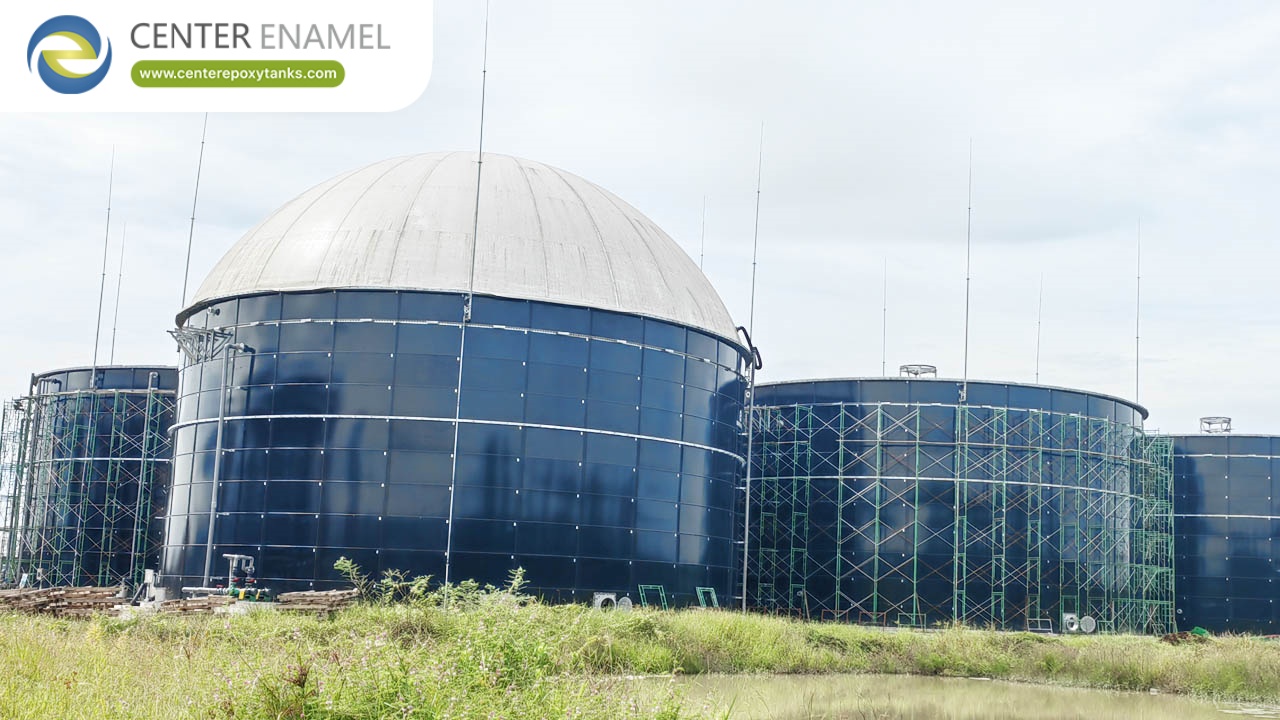

Modern double-membrane roofs are completely self-supporting, anchoring securely to the perimeter wall of the anaerobic digester (such as Glass-Fused-to-Steel or concrete tanks). Eliminating internal columns or rafters prevents structural corrosion and leaves unobstructed interior space for high-torque mechanical mixers and slurry recirculation systems.
Frequently Asked Questions (FAQ)
Q: How do double membrane roofs handle high concentrations of ammonia from chicken litter?
A: The inner membrane is manufactured from specialized, chemically inert polymer fabrics (such as PVC/PVDF-coated polyester) that resist degradation from ammonia and hydrogen sulfide, ensuring long-term structural integrity in high-nitrogen poultry digesters.
Q: Why is variable-volume biogas storage important for poultry manure digestion?
A: Poultry feeding schedules and waste removal cycles create fluctuating daily biogas volumes. The variable-volume inner bladder expands and contracts smoothly to buffer these surges, maintaining a steady, constant pressure for downstream energy equipment.
Q: Can double membrane roofs be installed on existing agricultural storage tanks?
A: Yes. Double membrane roofs are modularly designed and can be custom-fitted onto existing concrete, bolted steel, or glass-fused-to-steel agricultural tanks, making them an ideal upgrade for farms expanding their waste-to-energy infrastructure.
Q: How do these roofs protect against severe winter weather on farms?
A: The constant air pressure in the outer membrane maintains a rigid, aerodynamic dome shape that promotes natural snow sliding. Systems can also integrate low-pressure blower management and thermal features to prevent freezing in cold climates.
