Data Center Chilled Water Buffer Tanks: Hydraulic Decoupling and Flow Stability

A data center chilled water buffer tank is not the same as a TES tank, though the two are often confused. The buffer tank's job is hydraulic: it decouples the chiller side from the load side so each can run at its own flow rate without destabilizing the other. This article explains why that matters.

A data center chilled water buffer tank provides a hydraulic break between the chiller plant and the CRAH loops, allowing different flow rates on each side without forcing the chillers to chase load changes. By absorbing flow mismatch, it prevents short-cycling, protects compressors, and stabilizes supply temperature - distinct from a TES tank, which stores cooling energy.

Hydraulic Decoupling Explained

In a primary-secondary or variable-flow plant, the chiller wants a fairly steady flow while the CRAHs modulate with IT load. Without a buffer, mismatch forces the chiller to ramp or short-cycle. The buffer tank sits at the decoupling point and supplies or absorbs the difference.

The result is steadier chiller operation and longer compressor life - a direct reliability gain in a 24/7 facility.

Preventing Short-Cycling

Short-cycling wastes energy and wears valves and compressors. A correctly sized buffer gives the chiller a stable minimum flow even when load side demand dips, keeping it out of damaging on-off patterns.

This is especially valuable in partial-load conditions that dominate real data-center operation.

Buffer vs TES: Know the Difference

A buffer tank manages flow and temperature stability; a TES tank stores energy for time-shifting. Some designs combine both roles in one vessel, but the control logic and sizing differ. Specify the primary purpose first.

Technical Specifications

Verified Tank Engineering Reference

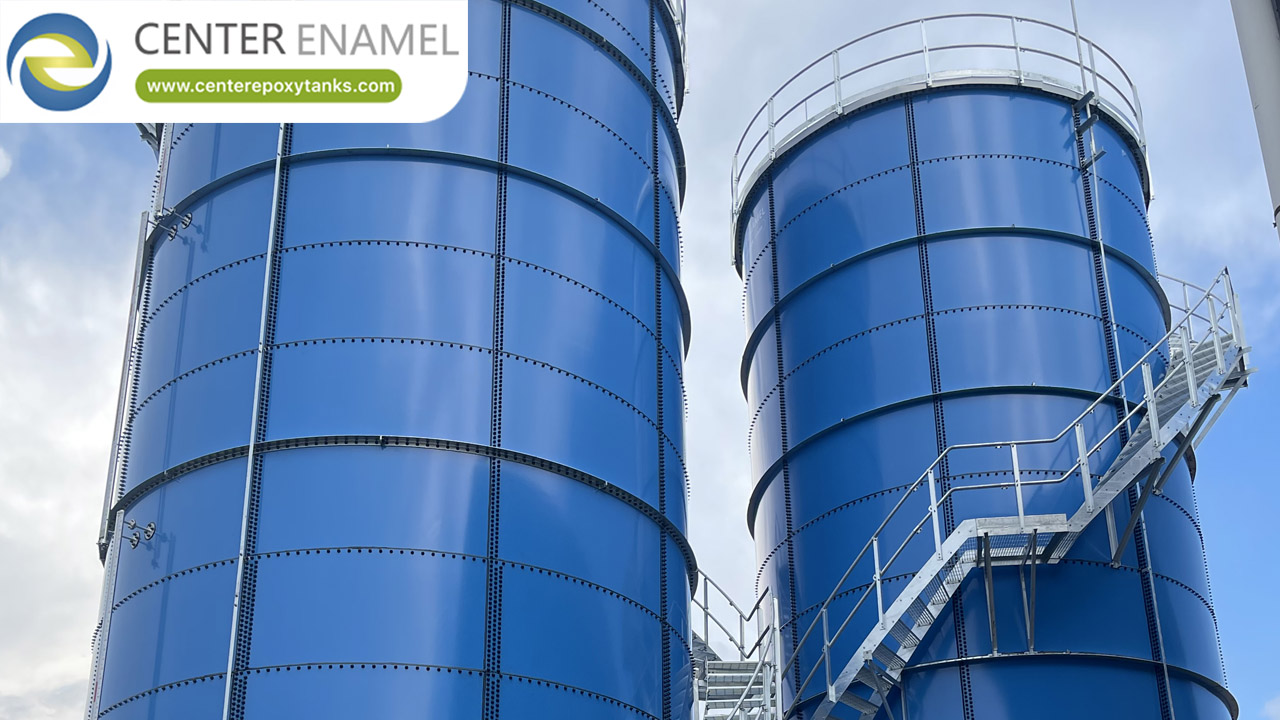

Center Enamel's water-storage tank programs - such as a 2024 Indian installation of three GFS tanks at 19.86 m diameter and 12,261 m3 - reflect the large-bolted-tank manufacturing and QA that buffer and TES vessels on a data-center campus share. Capability evidence only, not a DC project.

Center Enamel Capability

Center Enamel manufactures both atmospheric bolted buffer tanks and ASME-coded pressurized buffer/expansion vessels, so a campus can source decoupling and pressurized duties from one supplier. Bolted tanks follow AWWA D103 and ISO 28765; vessels follow ASME VIII, under ISO 9001.

For chilled-water buffer duty the team advises material against the water analysis and supports nozzle and connection layout for clean primary-secondary integration.

Frequently Asked Questions

Q: What does a buffer tank do?

A: It hydraulically decouples chillers from CRAH loops so each can run at its own flow without destabilizing the other.

Q: How does it prevent short-cycling?

A: By providing stable minimum flow to the chiller even when load-side demand dips, avoiding rapid on-off operation.

Q: Is a buffer tank the same as a TES tank?

A: No - a buffer manages flow and temperature stability; a TES tank stores cooling energy for time-shifting. They can be combined but are sized differently.

Q: Where is it installed?

A: At the primary-secondary decoupling point in the chilled-water plant.

Q: What material for a chilled buffer?

A: GFS, stainless, or welded steel by water chemistry; pressurized buffer vessels are ASME-coded.

Q: Does a buffer improve reliability?

A: Yes - steadier chiller operation and less wear translate to fewer compressor and valve failures.

A data center chilled water buffer tank is a hydraulic stabilizer first and an energy store second (if at all). Used correctly, it protects compressors and smooths supply temperature - quiet reliability gains that matter in a 24/7 facility.

Suggested Next Step

Send us your primary-secondary flow rates - we will size a buffer tank or combined buffer-TES vessel and specify material for your loop.
