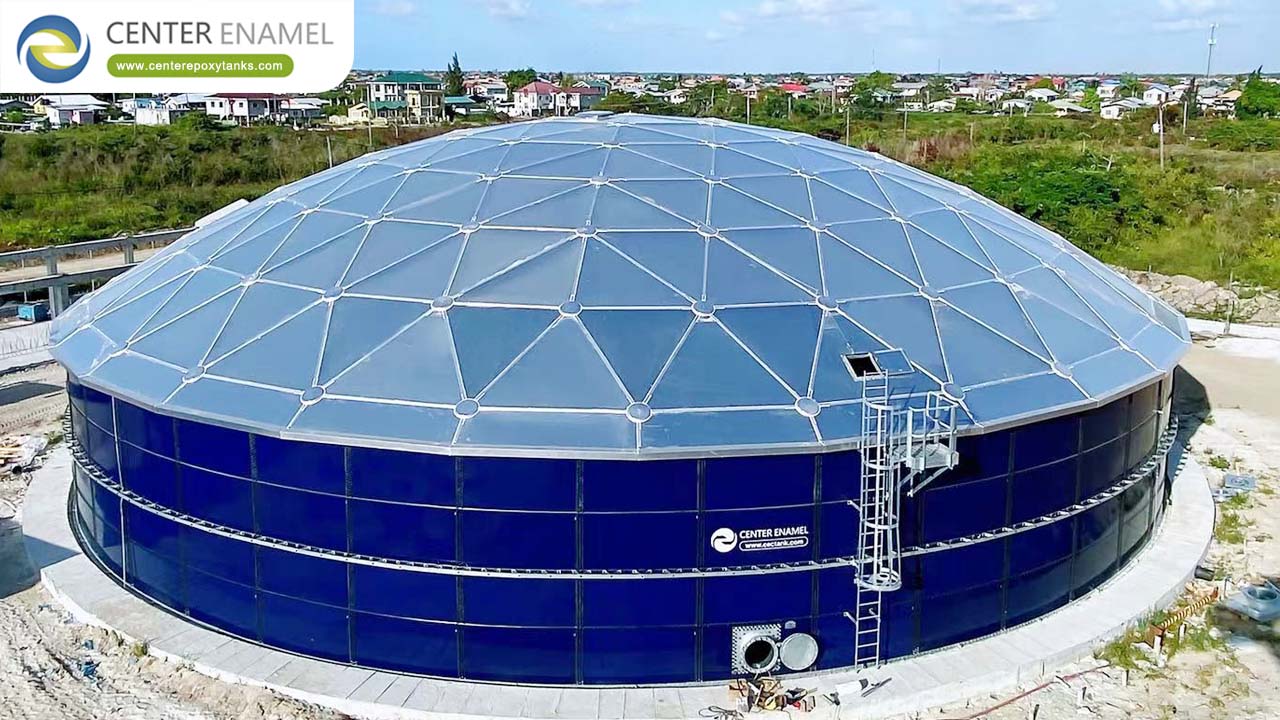

Aluminum Geodesic Domes are the primary clear-span cover solution for atmospheric oil storage tanks, engineered to minimize Volatile Organic Compound (VOC) emissions and eliminate rainwater ingress. Constructed from high-strength 6000-series aluminum alloys, these domes provide an interference-free span for Internal Floating Roofs (IFR), enhancing fire safety and product purity. Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) manufactures these domes to API 650 Appendix G and AWWA D108 standards, delivering custom-engineered, non-sparking, and maintenance-free covers to over 100 countries.
defines the mechanical advantages of Center Enamel’s geodesic technology for the petroleum sector.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Material Grade | AA 6061-T6 / 6063-T6 Aluminum | High strength-to-weight ratio; natural oxide protection. |
Design Standards | API 650 App. G / AWWA D108 / ADM 2020 | Global benchmark for structural and safety integrity. |
Span Capability | Clear Span up to 100m+ | Eliminates internal columns; maximizes IFR efficiency. |
Vapor Control | Airtight Silicone/EPDM Gasket Systems | Reduces VOC emissions by up to 95% vs. open-top tanks. |
Safety Rating | Non-Sparking & Lightning Resistant | Mandatory for Class I flammable liquid environments. |
Load Resistance | Designed per ASCE 7-22 (Wind/Snow/Live) | Engineered for site-specific hurricane and seismic zones. |
In oil storage, the interaction between the roof and the Internal Floating Roof (IFR) is critical.
● Support-Free Interior: Center Enamel’s geodesic design utilizes a triangular space frame to distribute loads across the tank perimeter. This eliminates internal vertical columns, allowing the IFR to travel freely without the risk of seal damage or "hang-ups," which are common causes of vapor leaks and tank fires.
● Passive Thermal Regulation: Aluminum’s high solar reflectance (Albedo > 0.7) reflects over 70% of solar radiation. This lowers the temperature of the vapor space above the oil, significantly reducing "breathing losses" and preserving the API gravity of the stored crude or refined product.
● C5-M Marine Resistance: In coastal refineries, salt-air corrosion destroys carbon steel roofs. Aluminum forms a self-healing Al2O3 oxide layer, providing a 50-year service life without the need for sandblasting or painting.
● Non-Sparking Material: Aluminum is inherently non-sparking, providing a critical layer of secondary fire protection during maintenance or accidental impact in ATEX-rated zones.
● Crude Oil & Refined Product Storage: Reducing evaporation losses and preventing rainwater contamination in high-volume terminals.
● Strategic Water Reserves: Safeguarding potable water from UV-induced algae and airborne pollutants, as demonstrated in our Guyana (Φ28.28m) and Saudi Arabia (Φ28.28m) projects.
● Chemical & Volatile Liquid Containment: Providing an impermeable barrier against hazardous vapors and preventing the release of toxic VOCs into the atmosphere.
● Wastewater & Odor Control: Enclosing anaerobic basins and primary clarifiers to contain foul odors and protect surrounding communities.
As a global leader in EPC (Engineering, Procurement, and Construction) support, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers a unique technological advantage:
● Integrated Tank & Roof Ecosystem: We are a "One-Stop" provider. We manufacture the bolted tanks (Glass-Fused-to-Steel, FBE, Stainless Steel) and the Geodesic Domes simultaneously, ensuring 100% mechanical compatibility and factory-perfect fitment.
● Advanced FEA Modeling: Every dome undergoes Finite Element Analysis (FEA) to simulate localized wind, snow, and seismic loads, ensuring compliance with local building codes in 100+ countries.
● Global Compliance Mastery: Our systems are certified to ISO 9001, ISO 45001, and API standards, providing the documentation necessary for international oil majors and municipal tenders.
● Modular "No-Hot-Work" Assembly: Our domes are prefabricated and bolted on-site. This eliminates the need for welding in high-risk refinery environments, dramatically reducing safety permits and installation timelines.
Q: Can these domes be retrofitted onto existing welded steel or concrete tanks?
A: Yes. Center Enamel designs custom mounting rims that allow our aluminum domes to be installed on almost any existing tank structure, providing an immediate upgrade to vapor control and weather protection.
Q: How do these domes perform in hurricane-prone coastal areas?
A: We engineer the structural thickness and fastener density based on ASCE 7 standards to withstand wind speeds exceeding 250 km/h, as proven by our successful tropical installations in the Philippines and Panama.
Q: What is the maintenance requirement for an aluminum geodesic dome?
A: Virtually zero. Because the alloy is corrosion-resistant and does not require painting, the only recommended maintenance is a visual inspection of the perimeter seals and gaskets every 5 years.
