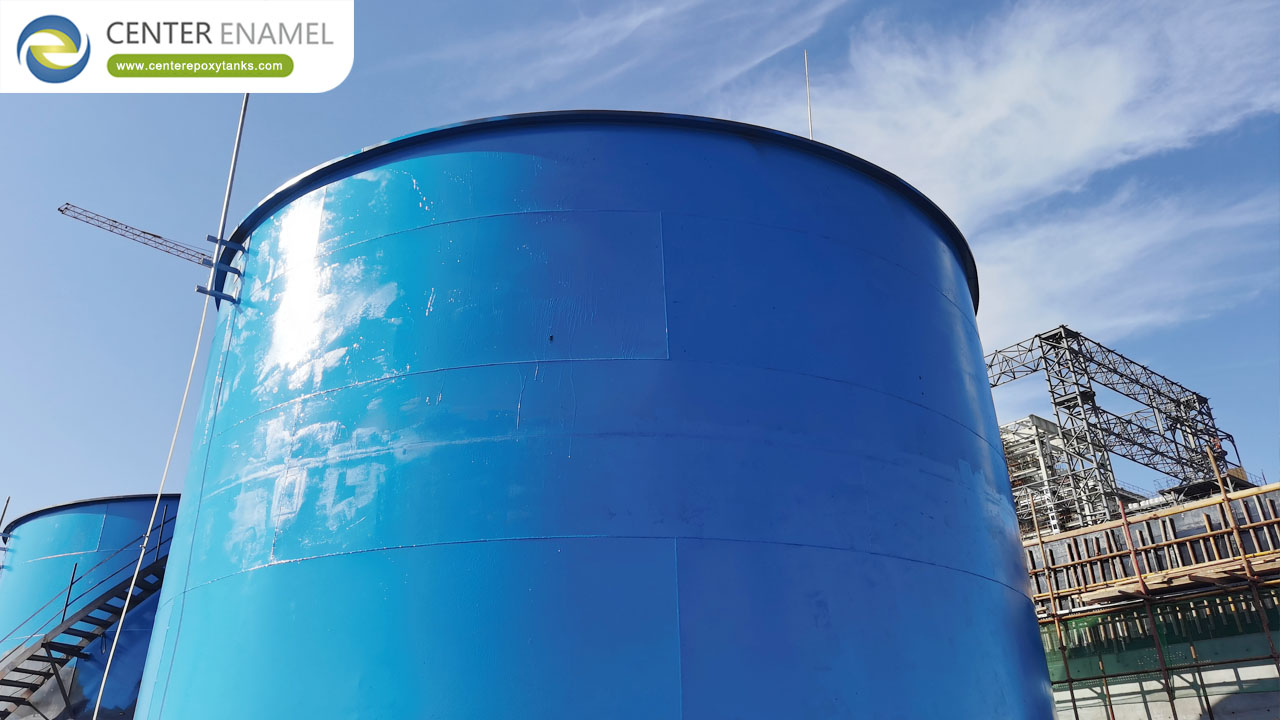

Crude oil storage at refinery or terminal scale requires the monolithic structural integrity of welded steel tanks. Constructed primarily to API 650 standards, these vessels are built on-site using Automated Girth Welding (AGW) to ensure leak-proof, high-pressure resilience. Unlike modular units, welded tanks support massive capacities (exceeding 100,000 m3) and utilize External or Internal Floating Roofs to mitigate VOC emissions. Protection is maintained through field-applied high-build epoxy linings and Cathodic Protection (CP) systems to ensure a 30-year design life.
This matrix establishes the mechanical benchmarks for authentic API 650 welded crude storage.
Feature | Technical Specification (Welded Standard) | Strategic Operational Value |
Design Standards | API 650 (13th Ed), API 620, ASME BPVC | Mandatory for global refinery compliance and insurance. |
Welding Protocol | Automated Girth Welding (AGW) / SAW | X-ray quality seams; reduces Heat-Affected Zone (HAZ). |
Corrosion Control | Field-Applied Epoxy / Glass Flake Linings | Protects the "critical zone" from brine and H2S. |
Material Grade | ASTM A36 / A516 Grade 70 / Q345R | Optimized for fracture toughness and weldability. |
Testing Regimes | Radiographic (RT) / Vacuum Box / Hydrostatic | 100% verification of seam integrity and structural safety. |
Foundation Protection | Impressed Current Cathodic Protection (ICCP) | Prevents soil-side corrosion of the tank bottom plates. |
For large-diameter crude tanks, Center Enamel utilizes automated welding systems to ensure a uniform, high-strength bond:
● Structural Continuity: The AGW process creates a monolithic steel shell capable of withstanding the massive hydrostatic pressures of crude oil, which can reach heights of over 20 meters.
● Non-Destructive Testing (NDT): All critical weld intersections (T-joints) undergo Radiographic Testing (RT). Additionally, the floor-to-shell fillet weld is tested using Vacuum Box Testing to ensure zero atmospheric leakage.
● Seismic Engineering: Welded tanks are designed via Finite Element Analysis (FEA) to meet localized seismic requirements (ASCE 7), allowing the structure to flex without catastrophic failure during ground acceleration.
Since welded seams are finalized on-site, the protection strategy focuses on high-performance field-applied systems and vapor suppression.
● Internal Coating Strategy: After construction, the interior floor and bottom shell ring are abrasive-blasted to SSPC-SP10 and coated with Glass-Flake Reinforced Epoxy. This creates a dense barrier against "water bottoms"—the corrosive layer of brine and sediment that settles at the base of crude tanks.
● Floating Roof Engineering: To prevent the accumulation of flammable vapors and reduce product loss, we engineer External Floating Roofs (EFR). These feature Mechanical Shoe Seals and articulated drainage systems to handle heavy rainfall while maintaining a 98% vapor seal.
● Cathodic Protection: To defend the tank floor from the underside (soil-side), we integrate Cathodic Protection into the foundation, neutralizing the electrochemical process that leads to corrosion.
While a leader in bolted technology, Center Enamel’s comprehensive EPC (Engineering, Procurement, and Construction) capabilities extend to large-scale welded infrastructure:
● End-to-End Project Management: From initial soil topography and foundation civil works to the complex heavy-lift operations required for dome or floating roofs.
● Global Supply Chain: We source premium ASTM/Q-grade steel plates and high-performance field coatings to ensure compliance with international environmental and fire safety codes (NFPA 30).
● Compliance Documentation: Every project is delivered with a Manufacturer’s Data Report (MDR), providing 100% traceability for materials, welding certifications, and NDT results.
Q: When is a welded tank required over a bolted tank for crude oil?
A: Welded tanks are the standard for large-scale terminals (typically $>15,000 m^3$) where the continuous steel shell provides superior fire resistance and structural stability for very large diameters.
Q: How do you protect the weld seams from rust after on-site assembly?
A: Post-welding, all seams are grit-blasted to remove slag and oxidation. A field-applied, multi-layer coating system is then applied, overlapping with any shop-primed areas to ensure a monolithic protective envelope.
Q: What is the lifespan of a welded API 650 tank?
A: With proper API 653 inspection intervals (typically every 10–20 years) and a maintained cathodic protection system, a welded crude oil tank has an operational design life of 30+ years.
