Chilled Water Storage Tanks for Data Centers: Design Specifications and Sizing Method
Specifying a chilled water storage tank for data center cooling means translating a cooling strategy into physical tank dimensions, materials, and controls. Undersizing wastes the investment; oversizing wastes footprint and cost. This article gives the design specifications and a practical sizing method engineers actually use.
Size a data-center chilled-water TES tank from the cooling load and the target buffer hours: Volume = Load (kW) x Hours x 3600 / (rho x Cp x Delta-T). A 10,000 kW load buffered for 6 hours across a 10 K difference needs roughly 2,160 m3 of usable storage. Diameter and height then follow site constraints, with material and diffuser chosen for water chemistry and stratification quality.
Sizing From Load and Delta-T
The governing equation is straightforward: stored cooling = mass x specific heat x temperature difference. Because water's specific heat is fixed, the two levers are Delta-T (the cold-to-warm spread) and volume.
A wider Delta-T shrinks the required tank but demands tighter control of supply temperature to the CRAHs. Most designs settle between 8 K and 12 K of usable spread.
Geometry: Diameter vs Height
For a given volume, a tall narrow tank reduces footprint but raises height and foundation load; a short wide tank saves height but needs more ground. Stratified tanks favor moderate aspect ratios that keep the thermocline stable.
Diameter also affects shell-panel logistics - bolted GFS tanks are erected from standardized panels, so diameters are often chosen near preferred module sizes.
Material and Code Specification
Specify the liner or shell system by water chemistry: GFS for broad corrosion resistance, stainless for aggressive or high-purity loops, FBE for cost-effective protection. All bolted tanks should reference AWWA D103 / ISO 28765; pressure vessels reference ASME VIII.
Technical Specifications
Parameter | Specification |
Sizing basis | Load x hours / (rho*Cp*Delta-T) |
Typical Delta-T | 8-12 K |
Usable capacity | 85-95% of volume |
Diameter range | 10-45+ m (bolted GFS) |
Height range | 6-21 m typical |
Shell material | GFS / FBE / stainless / welded |
Liner standard | ISO 28765 (GFS) |
Tank standard | AWWA D103 |
Insulation | Optional, site-dependent |
Diffuser | Low-Froude multi-port |
Verified Tank Engineering Reference

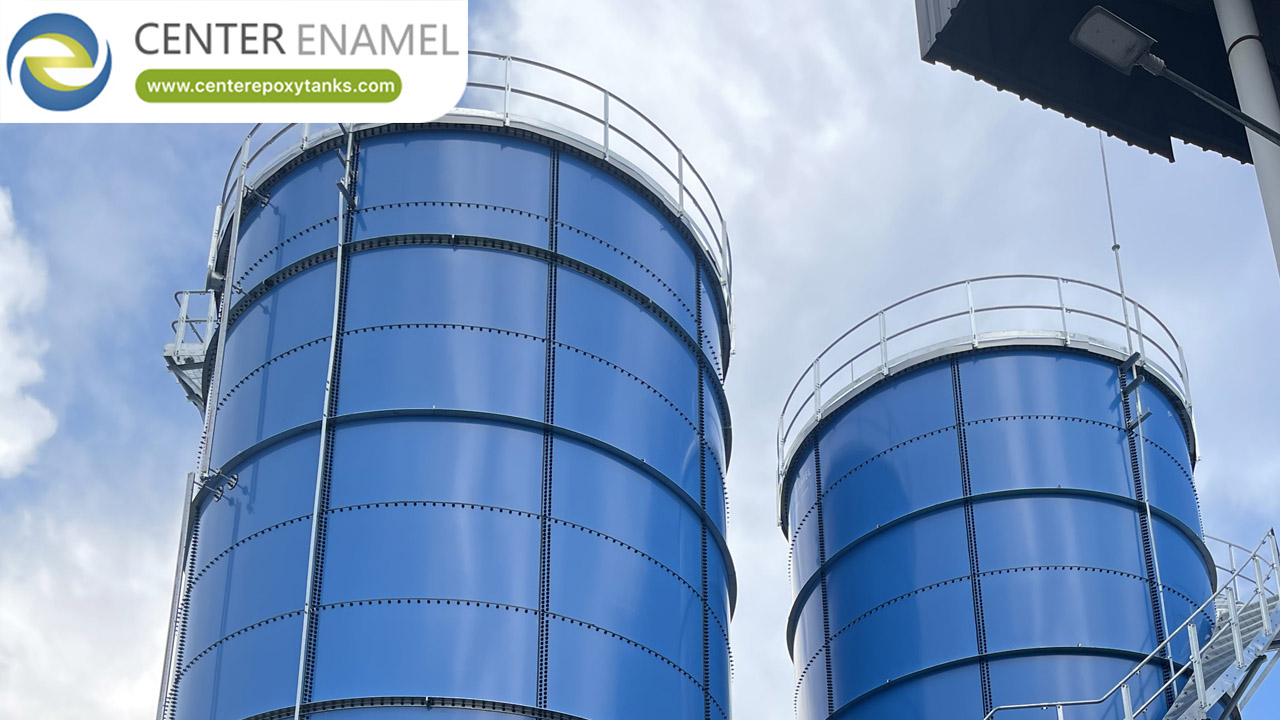

Center Enamel's multi-tank water-storage projects - such as a 2024 Indian fire-protection water installation of three GFS tanks at 19.86 m diameter and 12,261 m3 - reflect the repeatable large-bolted-tank manufacturing and QA discipline a data-center chilled-water program needs. Capability evidence, not a DC project.
Project location | India |
Application | Fire-protection water |
Tank type | GFS (Glass-Fused-to-Steel) bolted tank |
Scale | 3 unit(s), φ19.86*13.2m(H) 3sets |
Total volume | 12,261 m3 |
Year | 2024-06 |
Note | Cited as manufacturing-capability evidence, not a data-center project. |
Center Enamel Capability
Center Enamel supports specification with documented bolted-tank manufacturing: panel production, enamel firing, and QA under ISO 9001, with tanks built to AWWA D103 and ISO 28765. For chilled-water duty the team advises on material selection against the site water analysis.
Where the duty is pressurized, Center Enamel fabricates ASME Section VIII vessels with U-stamp, extending the same quality system to buffer, expansion, and pressurized TES vessels.
Frequently Asked Questions
Q: How do you size a chilled water storage tank?
A: From cooling load, buffer hours, and temperature difference: Volume = Load x Hours x 3600 / (density x specific heat x Delta-T), then apply an 85-95% usable factor.
Q: What Delta-T is typical?
A: Usable spreads of 8-12 K are common; wider spreads reduce tank size but tighten supply-temperature control.
Q: Tall or wide tank?
A: Tall saves footprint but raises foundation load; wide reduces height. Aspect ratio is chosen for thermocline stability and site constraints.
Q: Which standard applies to the tank?
A: Bolted steel tanks reference AWWA D103 and ISO 28765; pressurized vessels reference ASME Section VIII.
Q: Is insulation required?
A: Not always; it depends on ambient exposure and whether the tank is outdoors. Indoor plant rooms may omit it.
Q: What material for chilled water?
A: GFS for broad corrosion resistance, stainless for aggressive loops, FBE for economy. Choice follows water chemistry.
A defensible chilled-water storage tank specification starts from load and Delta-T, then resolves geometry, material, and code. Treat the tank as a precision hydraulic asset, not a generic reservoir, and the TES strategy performs as modeled.
Suggested Next Step
Send us your cooling load profile and water chemistry - we will return a sized, coded tank specification with material and diffuser recommendations.
