Biogas Holders for Biomass Digestion Projects: Engineering Efficient Energy Recovery and Safe Gas Containment
As the global renewable energy sector expands, anaerobic digestion of biomass—including agricultural crop residues, livestock manure, food waste, and energy crops—has become a cornerstone technology for generating clean, carbon-neutral energy. However, biological biomass digestion is a continuous biochemical process, whereas energy consumption via combined heat and power (CHP) engines, boilers, or grid injection is often variable or intermittent.
To bridge this operational gap safely and efficiently, modern biomass plants rely on a biogas holder. Engineered as high-performance flexible storage vessels, biogas holders capture, buffer, and regulate gas flow, ensuring a stable, pressurized fuel supply while protecting the overall facility from pressure surges and environmental risks.
Core Engineering Principles and System Design
Designing biogas storage infrastructure for biomass digestion projects requires strict adherence to fluid dynamics, material science, and safety standards:

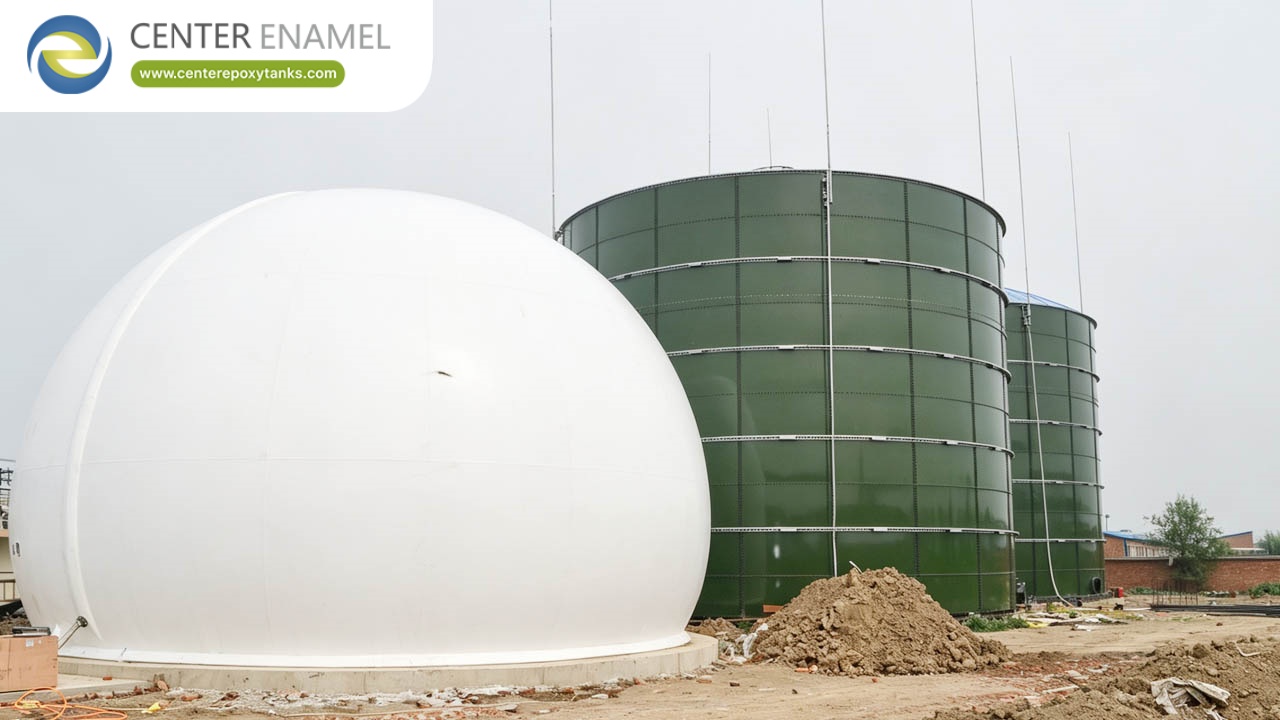

Double-Membrane Spatial Architecture: Modern biomass plants predominantly utilize double-membrane gas holders. These structures consist of an inner membrane (which contains the biogas), an outer protective membrane (which shields the system against wind, rain, and UV exposure), and a continuous air blower system that maintains an active inter-membrane pressure. This design provides structural stability and constant working pressure regardless of gas volume fluctuations.
Corrosion and Chemical Resistance: Biogas generated from biomass typically contains water vapor and trace concentrations of hydrogen sulfide (H2S) and carbon dioxide (CO2). Biogas holders utilize specialized, high-tenacity polyester fabrics coated with anti-fungal and PVC/PVDF formulations that resist sulfide attack, prevent gas permeation, and inhibit microbial degradation.
Volume Buffering and Pressure Regulation: Because biomass feedstock composition varies, gas production rates fluctuate throughout the day. Biogas holders act as crucial volumetric buffers, absorbing peak production surges and maintaining steady delivery pressure to downstream utilization equipment.
Data Table: Comprehensive Comparison of Biogas Holder Technologies
Technical Parameter | Double-Membrane Ground-Mounted Holders | Tank-Top Mounted Biogas Holders | Traditional Steel Pressure Holders |
Spatial Footprint | Independent ground-mounted footprint requiring a dedicated concrete foundation | Maximizes plant efficiency by mounting directly atop the anaerobic digester | Large cylindrical or spherical footprint requiring heavy civil foundations |
Pressure Control | Consistent low-pressure operation regulated by active air-pressure balancing | Integrated directly with digester headspace pressure | High-pressure containment requiring specialized compressor and staging systems |
Corrosion Defense | High-grade PVC/PVDF membranes completely immune to sulfide oxidation | Membrane inner layer protected against wet digester headspace gases | Carbon steel shell vulnerable to $H_2S$ condensation without intensive epoxy lining |
Primary Plant Application | Flexible mid-to-large-scale volume buffering and seasonal energy storage | Compact biomass plants with limited available real estate | High-pressure gas grid injection and heavy industrial gas storage |
Frequently Asked Questions (FAQ)
Q: What is the primary role of a biogas holder in a biomass digestion project?
A: It stores and buffers the biogas produced during anaerobic digestion, compensating for fluctuations in daily gas generation and ensuring a steady, reliable fuel supply for CHP engines, boilers, or gas upgrading systems.
Q: Why are double-membrane biogas holders preferred for biomass plants?
A: They offer a cost-effective, modular design that provides constant working pressure, excellent resistance to corrosive trace gases like hydrogen sulfide (H2S), and high volumetric storage capacity compared to rigid steel tanks.
Q: How do biogas holders ensure safety against explosive gas mixtures?
A: Modern biogas holders are engineered to strict safety standards (such as ATEX and IECEx), utilizing sealed dual-membrane barriers, flame arresters, automated pressure relief valves, and continuous gas monitoring systems to prevent oxygen intrusion.
Q: Can biogas holders be mounted directly on top of biomass digester tanks?
A: Yes. Tank-top mounted biogas holders save valuable physical space at renewable energy plants by integrating the flexible gas storage membrane directly onto the upper shell of the concrete or bolted steel digester.
