API 650 Storage Tank: The Engineering Standard for Global Oil and Gas Infrastructure
In the world of liquid storage, the API 650 Storage Tank is the definitive gold standard for atmospheric oil storage. Governed by the American Petroleum Institute, this standard ensures that tanks used in refineries, terminals, and pipeline facilities are designed with the highest levels of safety, structural integrity, and environmental protection.
As a leading global provider of storage solutions, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) integrates decades of manufacturing expertise with API-compliant designs to deliver infrastructure that powers the energy sector.
1. Technical Authority: What is API 650?
API 650 is the industry standard for the design, fabrication, and installation of welded steel tanks for oil storage. It specifically covers tanks that operate at atmospheric pressure (internal pressures not exceeding the weight of the roof plates) and are used for non-refrigerated service.
API 650 Engineering Performance Matrix
the following benchmarks define the quality of an API 650 system:
Feature | Engineering Specification | Strategic Operational Value |
Design Standard | API 650 / API 620 | Verified global safety and structural compliance. |
Storage Medium | Crude Oil, Refined Fuels, Chemicals | Versatility across the entire hydrocarbon value chain. |
Operating Pressure | Atmospheric (Max 2.5 PSI) | Optimized for large-scale bulk storage safety. |
Design Temperature | -40°F to 500°F (Depending on Annex) | Resilience in extreme climates and high-temp processes. |
Material Integrity | High-Tensile Carbon or Stainless Steel | Long-term resistance to fatigue and environmental stress. |
2. Core Structural Components
A standard API 650 tank is a complex assembly of engineered sub-systems designed to work in harmony:
The Tank Shell
The shell consists of welded steel plates, with thickness varying by height (thicker at the bottom to withstand higher hydrostatic pressure). Precision welding and non-destructive testing (NDT) are mandatory for API compliance.
The Bottom Plate
API 650 tanks typically utilize a "lap-welded" bottom. For advanced environmental protection, "Double Bottom" designs with leak detection are often implemented to prevent soil contamination.
Roof Configurations
Operators can choose between several roof types based on the volatility of the stored product:
● Fixed Roofs: Cone or dome-shaped, used for non-volatile liquids.
● Floating Roofs: Internal (IFR) or External (EFR) roofs that float on the liquid surface to minimize vapor loss.
3. Integration with Aluminum Geodesic Dome Roofs

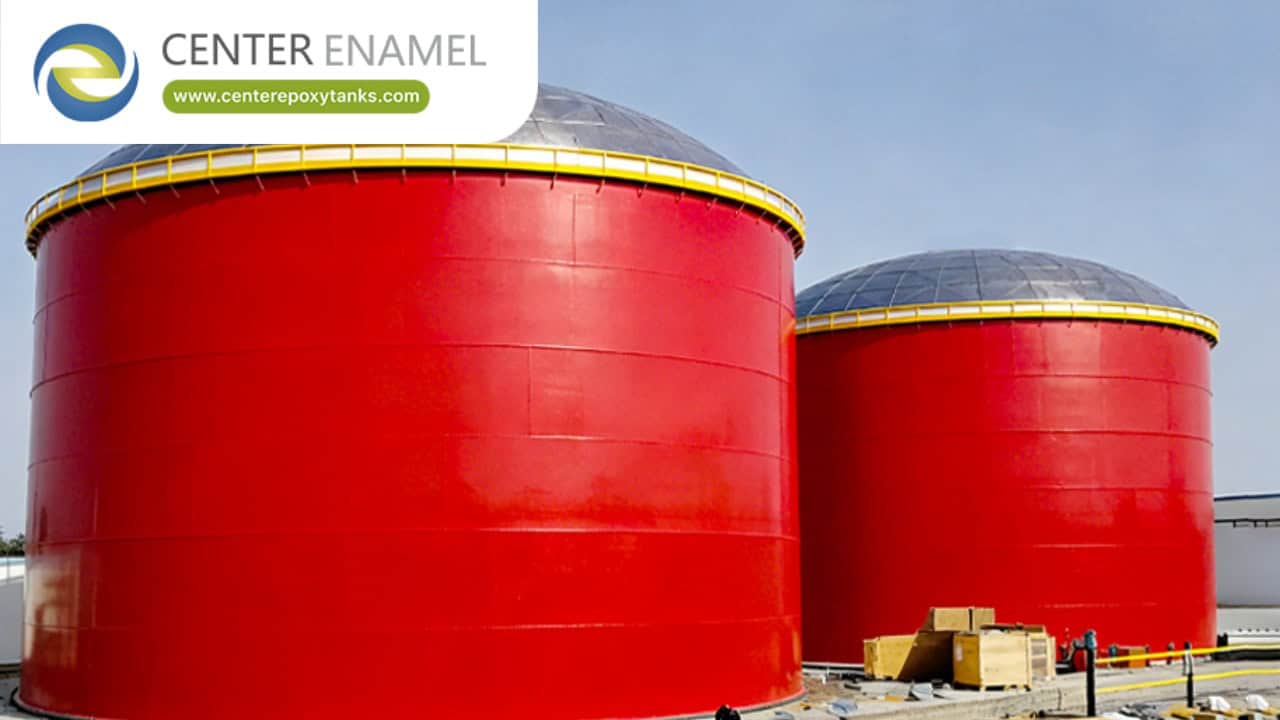

To enhance the service life of an API 650 tank, many operators pair the steel shell with an Aluminum Geodesic Dome Roof. According to technical documentation from Center Enamel, these domes offer significant advantages:
● Corrosion Resistance: Unlike steel roofs that require frequent painting, aluminum is inherently resistant to the vapors of oil refining and petrochemistry.
● Clear-Span Engineering: These roofs have no internal columns, eliminating sediment traps and providing an unobstructed interior—ideal for tanks utilizing Internal Floating Roofs (IFR).
● Rapid Construction: Center Enamel’s domes can be constructed using Outside-In (for tanks with jacks) or Inside-Out methods, significantly reducing commissioning timelines.
4. Compliance, Safety, and Sustainability
In 2026, compliance goes beyond structural safety—it includes Environmental, Social, and Governance (ESG) goals.
● VOC Emission Control: API 650 Appendix H (Internal Floating Roofs) is critical for meeting zero-emission targets by reducing Volatile Organic Compound (VOC) release by up to 99%.
● Fire Safety: Proper grounding, lightning protection, and the elimination of vapor space make API 650 tanks the safest option for flammable liquid storage.
● Low Maintenance: Utilizing aluminum domes and advanced coatings reduces the need for frequent inspections and costly downtime.
5. Why Choose Center Enamel for API 650 Projects?
With over 30 years of experience and successful installations in more than 100 countries, Center Enamel is more than a manufacturer; we are an engineering partner.
1. Global Certifications: Our tanks and accessories meet API, AWWA, and ISO standards.
2. Technological Innovation: We utilize Finite Element Analysis (FEA) to ensure every tank survives the specific seismic and wind loads of its location.
3. Total Solution Provider: From the foundation to the floating roof and the geodesic dome, we provide a unified, technically compatible system.
Strategic Infrastructure for a Changing Industry
Investing in an API 650 Storage Tank is a commitment to operational excellence. By combining the structural robustness of API standards with the advanced technology of Center Enamel’s vapor control and dome systems, operators can ensure their storage infrastructure is safe, compliant, and optimized for the future.
Partner with the industry leader in storage technology. Contact Center Enamel today for a technical consultation and API 650 compliant quote.
