API 650 is the global gold standard for welded steel tanks used in atmospheric oil storage. Designed to handle internal pressures up to 2.5 PSI, these tanks are the backbone of refineries, terminals, and Strategic Petroleum Reserves (SPR). As a premier China petroleum storage tanks manufacturer, Center Enamel delivers API 650 compliant solutions utilizing ASTM A516-70 steel and 100% NDT-verified welding to ensure a 30-year leak-free lifecycle for crude and refined products.
Feature | API 650 Requirement | Operational Advantage |
Material Grade | ASTM A36, A516-Gr 70, Q345R | High-yield strength & fracture toughness. |
Design Pressure | Atmospheric to 2.5 PSI | Optimized for bulk liquid hydrocarbon. |
Welding Standard | ASME Section IX / API 650 Ch. 9 | Fused joints for maximum seismic resilience. |
Roof Types | IFR, EFR, or Fixed Cone | 98% VOC reduction with floating roofs. |
Inspection (NDT) | RT / UT / Magnetic Particle | Verified 100% joint penetration. |
API 650 specifies strict metallurgical controls to prevent brittle failure, especially in low-temperature environments.
● Shell Plate Selection: We utilize Normalized ASTM A516 Grade 70 steel for its superior notch toughness. This is critical for preventing "brittle fracture" during cold-weather operations.
● HIC Resistance: For "sour" crude oil (high H2S), Center Enamel provides Hydrogen-Induced Cracking (HIC) resistant steel, ensuring the tank's internal microstructure remains stable against hydrogen blistering.
The integrity of an API 650 tank rests entirely on its welded seams. Our factory and field protocols exceed standard requirements:
● Automated Submerged Arc Welding (SAW): We utilize automated SAW for all horizontal and vertical girth seams. This process ensures deep penetration and a uniform heat-affected zone (HAZ), significantly reducing the risk of stress-corrosion cracking.
● Non-Destructive Testing (NDT): * Radiographic Testing (RT): 100% RT is performed on all "T-joints" (where vertical and horizontal welds intersect).
○ Vacuum Box Testing: Every inch of the floor-plate lap welds is vacuum-tested to ensure the primary containment barrier is 100% impermeable.
Modern API 650 tanks must act as environmental barriers. We integrate advanced roof systems to meet 2026 ESG mandates:
● Internal Floating Roof (IFR): By eliminating the vapor space between the liquid surface and the fixed roof, our IFR systems reduce evaporation loss by up to 99%.
● Secondary Seal Systems: We utilize mechanical shoe seals combined with secondary wiper seals to maintain a tight vapor barrier, preventing Volatile Organic Compounds (VOCs) from entering the atmosphere.

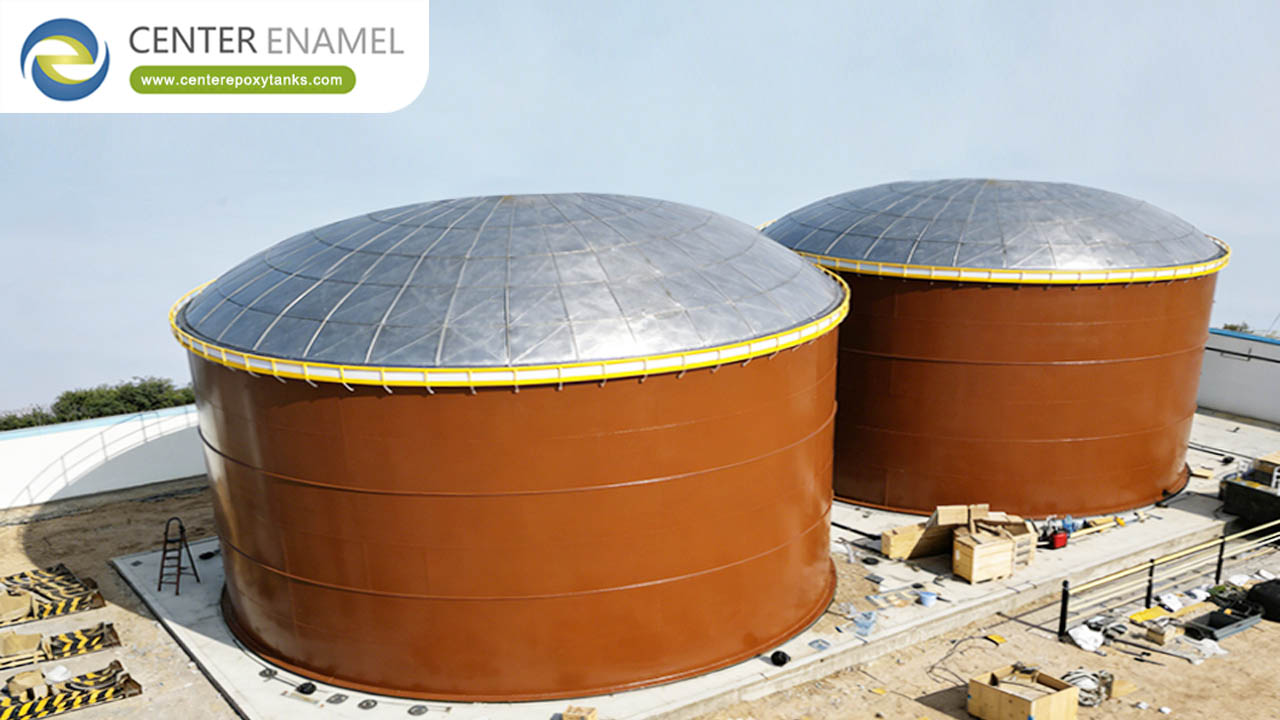

● Aluminum Geodesic Domes: For ultimate protection, we cover API 650 tanks with Aluminum Geodesic Domes, which eliminate rainwater ingress and shield floating roofs from UV degradation.
Parameter | API 650 Welded Steel | API 12B Bolted Steel | Concrete Containment |
Joint Integrity | Fused (Monolithic) | Mechanical (Gaskets) | Poured (Cured) |
Max Capacity | 100,000 m3+ | Up to 10,000 m3 | Site-specific |
Seismic Rating | Superior (Ductile) | Moderate | Low (Brittle) |
Best For | Primary Terminals | Remote Midstream | Spill Prep Only |
A compliant API 650 tank is an integrated safety system:
● Overpressure Protection: Each tank features Emergency Pressure Relief Valves (EPRV) calibrated to API 2000 standards to prevent tank rupture during rapid thermal changes.
● Fire Suppression: We pre-install foam chambers and pourers for immediate NFPA-compliant fire response.
● Static Grounding: Strategic bonding between the floating roof and the tank shell eliminates the risk of static ignition during filling operations.
● Q: Can API 650 tanks be used for refined products like Jet A-1?
○ A: Yes. We apply high-build Glass-Flake Reinforced (GFR) epoxy linings to prevent internal corrosion and maintain fuel purity.
● Q: What is the lead time for a field-welded API 650 tank?
○ A: Depending on the capacity (e.g., 20,000 m3), field construction typically takes 60–90 days following site preparation.
● Q: Do you provide foundation engineering for large oil tanks?
○ A: Absolutely. We design specialized concrete ring beam foundations with oiled sand cushions to support the immense hydrostatic loads of bulk oil storage.
