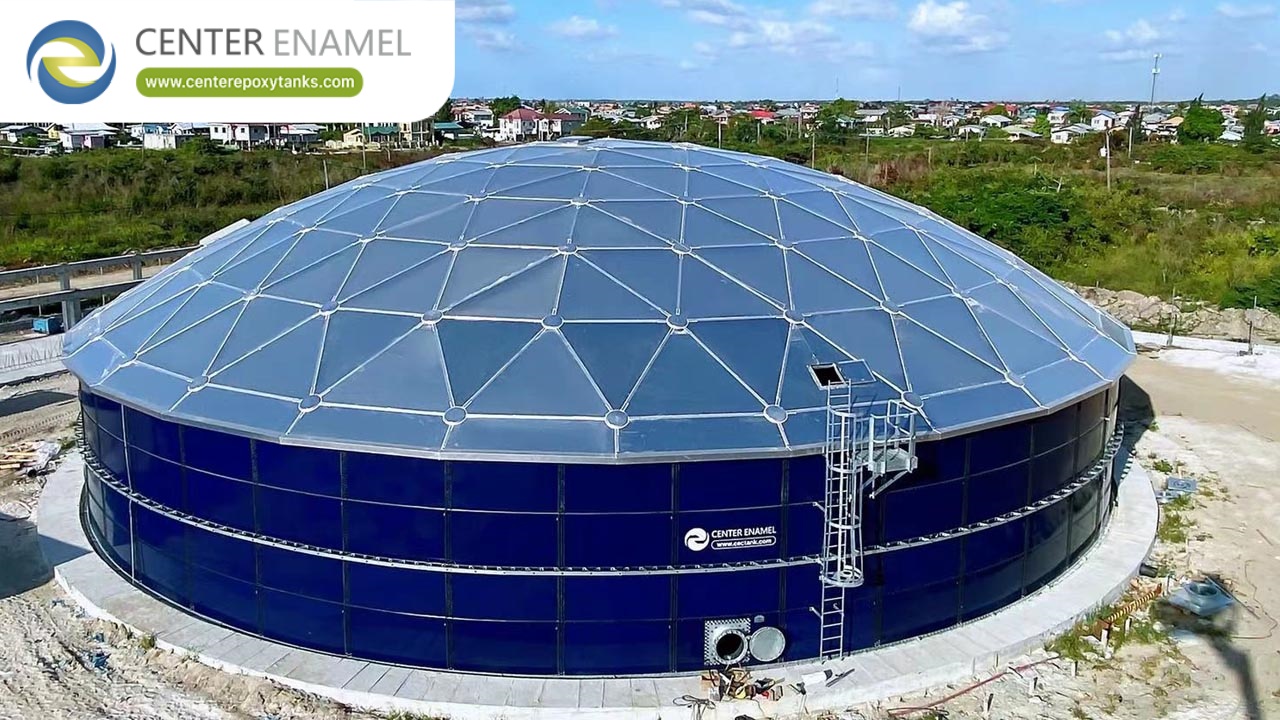

Aluminum Dome Roof For Aboveground Storage Tanks: Durability, Emission Control And Structure

Covering an aboveground storage tank is a structural decision and an operational decision at once. Structurally, the dome must carry wind, snow and seismic loads through a triangulated geometry into the tank shell; operationally, it closes the tank atmosphere — controlling emissions on fuel service, odors on wastewater duty, and water quality on potable storage. The aluminum geodesic dome answers both, and it does so without the recoating cycle that steel covers carry.

This article covers AST covering engineering: load paths, emission and odor control, and the durability comparison that drives the material decision.

The Triangulated Load Path

A geodesic dome carries loads through geometry: triangulated members distribute wind, snow and live loads to the perimeter ring, which transfers them into the tank shell. The structure is self-supporting at the perimeter, so the tank interior stays clear of columns — preserving mixing coverage, inspection access and floating-roof clearance.

The engineering checks are explicit: member buckling, node connection capacity, ring beam design and the shell’s capacity for the new loads. Each is a calculation, not a catalog selection.

Wind And Snow Design

Wind acts on a dome as external pressure, internal suction and — through the tank shell — as a coupled system during emptying. Snow load applies in temperate zones with drift accumulation checked at the perimeter. Seismic detailing follows the tank code annexes, and live loads cover maintenance access.

Design compliance follows ASCE 7 in the US framework and EN 1991 in Europe, with the site-specific data driving the load cases. A dome engineered for a generic condition is a dome engineered for the wrong site.

Emission Control

A closed dome reduces tank breathing losses: the vapor space is enclosed, the vent path is controlled, and the thermal cycling that drives breathing is damped. On fuel service this translates into reduced VOC emissions and product loss; on regulated terminals it is a compliance measure.

The engineering detail is the seal — dome-to-shell joint, penetration seals and the controlled vent path. A dome that leaks at the perimeter controls nothing.

Odor Control

On wastewater tanks, the dome contains the atmosphere at the source. The contained air routes to scrubbers or biofilters instead of dispersing across the plant, and the odor complaint disappears before it is filed. The dome is what makes the treatment system effective rather than decorative.

The same sealing discipline applies: the contained atmosphere is only contained if the perimeter and penetrations are sealed, which is why seal inspection is a scheduled maintenance item.

Durability: Aluminum Vs Steel

The tank atmosphere is corrosive: H2S and moisture over wastewater, VOCs over fuels, humid salt air on coastal sites. Steel covers in these environments are a maintenance item with a recoating cycle every decade or two; aluminum covers carry inspection only. Over a twenty-year horizon, the durability comparison usually decides the material before the cost comparison does.

Aluminum’s lower weight also simplifies the interface — particularly for retrofit domes on existing tanks whose shells were never designed for a steel roof.

Retrofit Domes On Existing ASTs

Retrofit is the strongest economic case for domes: an existing open tank gains emission control, odor containment and water quality protection without replacement. The engineering work is the interface — shell capacity for the new loads, ring beam design and the perimeter seal.

The retrofit scope includes assessing the existing shell: capacity for the new loads, condition of the top course, and the attachment detail that works with what is actually there.

Fabrication, Erection And Survey

Domes are fabricated as members and nodes, shipped as kits and erected on site — frequently while the tank remains in service where the scope allows. Erection is measured in days to weeks with light lifting equipment, and the erected geometry is surveyed against the design.

The survey record belongs in the handover file: it is the baseline for any future assessment of dome condition or movement.

Access, Safety And Maintenance

Dome access provisions are engineered: hatches for internal inspection and equipment removal, ladder mounts and fall-arrest anchors for external work, and lighting provisions for internal access. Maintenance is the seal, fastener and penetration regime — inspection, not recoating.

The maintenance model is the economic argument: an aluminum dome carries an inspection schedule; a steel cover carries an inspection schedule plus a recoating project.

Materials And Fasteners

An aluminum dome is an alloy structure, and the alloy and temper selection is a structural decision, not a purchasing one: the members must deliver strength, weldability or bolted-connection behavior, and corrosion resistance in the atmosphere the tank sits in. Marine and coastal sites, and any site with chloride exposure, drive the material grade up; inland agricultural sites can accept the standard alloy.

Fasteners deserve equal attention. Stainless fasteners in aluminum members, with the galvanic couple reviewed and isolation detailed where required, prevent the joint corrosion that shows up as weeping seams and stained panels a decade later. The fastener specification — grade, isolation, torque, coating — belongs in the design file, because a dome is only as durable as its thousands of connections.

Warranty And Documentation

Dome warranties are only as good as the records behind them: material certificates for the alloy and the fasteners, fabrication records for the members, the erection survey, and the corrosion protection specification. A dome delivered without this set has a warranty that is difficult to enforce and an owner who cannot demonstrate the structure’s condition at the next inspection.

The documentation set also carries the emission-control value of the cover: where the dome is part of a regulated vapor management program, the as-built record is the compliance evidence. The practical buyer rule is to require the dossier at procurement — material certificates, survey records and the coating specification — rather than discovering at the first audit that it was never assembled.

Center Enamel Dome Engineering

Center Enamel designs aluminum dome roofs to ASCE 7 and EN 1991 load compliance with AWWA D108 alignment, across oil, gas, water and wastewater service. Our domes are engineered for site load cases, detailed for the service atmosphere and documented with erection surveys that support the tank’s integrity file.

For AST covering, we treat the dome as part of the tank system — because the emission, odor and quality performance it delivers is a tank-system property, not an accessory’s.

Project Case Study

An Omani water project required covered storage for potable water duty in a hot, arid climate where evaporation and contamination control govern storage economics. Center Enamel supplied two glass-fused-to-steel bolted tanks at 9.17 m diameter by 9.6 m height, totaling 1,267 m3, configured with aluminum dome cover systems.

The GFS tank system was selected for potable water service, and the aluminum dome covers provide evaporation control and water quality protection in the arid climate. The project was delivered complete in March 2024 with coating inspection records for the operating integrity baseline.

About Company

Shijiazhuang Zhengzhong Technology Co.,Ltd(Center Enamel) is a professional manufacturer dedicated to the design and fabrication of bolted storage tanks since 2008. Our products range includes Glass-Fused-to-Steel (GFS) tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized steel tanks and aluminum geodesic dome roofs. With professional enameling R&D team and nearly 200 enameling patents, Shijiazhuang Zhengzhong Technology Co.,Ltd has become the leader in bolted tanks industry of Asia. Our products are certified to ISO9001, NSF61, EN1090, ISO28765, WRAS ,FM, LFGB, BSCI, IS0 45001 and other international standards.

Shijiazhuang Zhengzhong Technology Co., Ltd is not only the first manufacturer in China which produces Glass-Fused-to-Steel tanks, but also the most experienced professional bolted tanks manufacturer in Asia.The engineering & design, product testing and quality system of Center Enamel Glass-Fused-to-Steel tanks is in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and other international standards. Until 2023, Center Enamel bolted tanks have been exported to more than 100 countries including USA, Australia,Canada, Malaysia, Indonesia, Russia, UAE, Panama,Brazil and South Africa etc., the superior tank quality and prompt service gains us worldwide recognition.

As an outstanding containment and cover system provider with decades of industry experience, Shijiazhuang Zhengzhong Technology Co., Ltd sincerely expects to establish long-term cooperation with the local partners throughout the world and make continuous contribution to the development of the industry.

Suggested CTA

Center Enamel delivers aluminum dome engineered for ast covering duty, with dome structural design, asce 7 / en 1991 load compliance. Contact our engineering team for engineering guidance on your next aluminum dome roof for aboveground storage tanks project — including sizing, standards compliance and delivery scheduling.

Frequently Asked Questions

Q: What load cases govern a tank dome?

A: Wind (external pressure, internal suction and the coupled tank system during emptying), snow with drift accumulation in temperate zones, seismic per the tank code annexes, and live loads for maintenance access. Design follows ASCE 7 or EN 1991 with site-specific data.

Q: How does a dome reduce emissions?

A: By enclosing the vapor space and damping the thermal cycling that drives breathing losses, with the vent path controlled. On fuel service this reduces VOC emissions and product loss; on regulated terminals it is a compliance measure.

Q: Why is aluminum more durable than steel for tank domes?

A: The tank atmosphere is corrosive — H2S and moisture over wastewater, VOCs over fuels, salt air on coastal sites. Aluminum’s passive oxide layer resists it without recoating cycles, and its lower weight simplifies shell interfaces, especially for retrofits.

Q: What engineering work does a dome retrofit require?

A: The interface: assessing existing shell capacity for the new loads, condition of the top course, ring beam design and the perimeter seal detail. Aluminum’s light weight makes retrofits practical on shells never designed for a steel roof.

Q: How do domes control odors on wastewater tanks?

A: By containing the atmosphere at the source. The contained air routes to scrubbers or biofilters instead of dispersing across the plant — provided the perimeter and penetration seals are correctly detailed and inspected.

Q: What documentation comes with a dome?

A: Material certificates for members and fasteners, dimensional verification of the fabricated kit, the erected-geometry survey and the design calculations. For export projects, the certification format must satisfy the owner’s jurisdiction and insurer.
