Advantages of Bolted Steel Tanks for Biogas Digesters: High-Efficiency Bioreactors for Renewable Energy
As global industries and municipalities accelerate their transition toward circular economies and renewable energy sources, anaerobic digestion has become a cornerstone technology. By converting organic waste—including agricultural slurry, food processing wastewater, and municipal sewage sludge—into high-purity methane biogas, plants can generate clean electricity while meeting stringent environmental mandates.

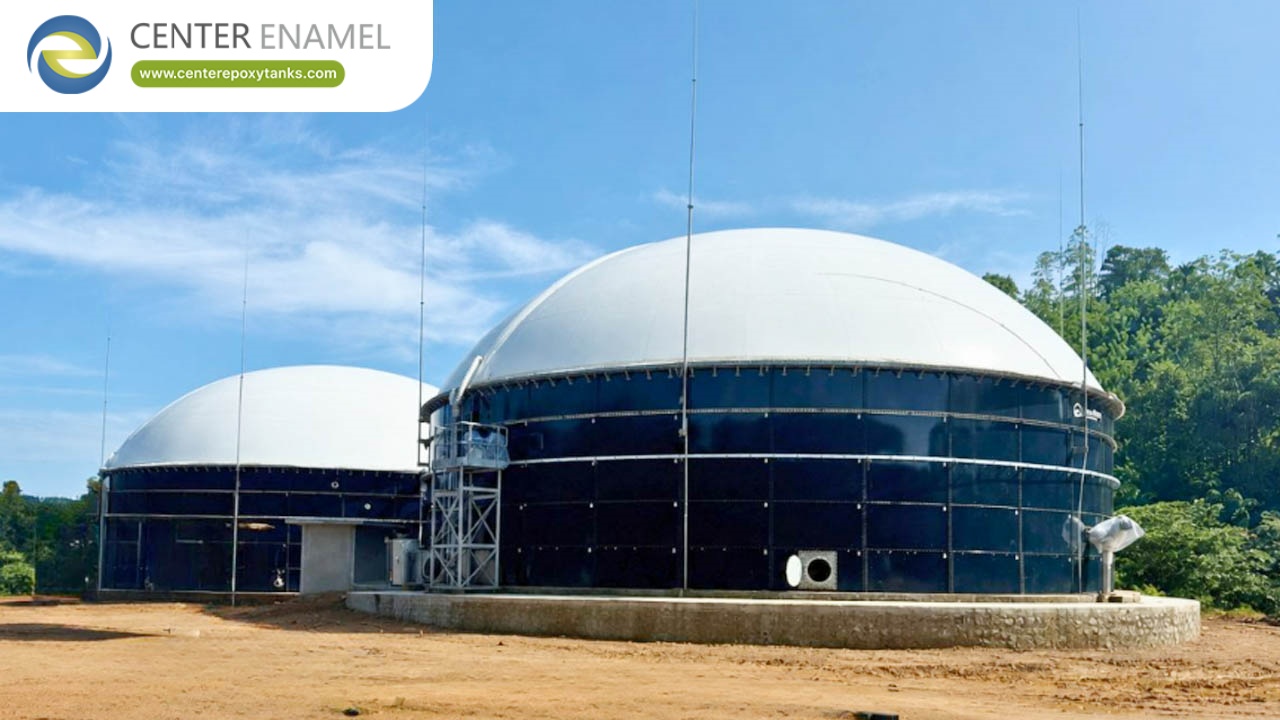

At the center of any successful anaerobic digestion system is the bioreactor itself. While traditional poured-in-place concrete basins and field-welded steel tanks have long histories, bolted steel tanks have rapidly emerged as the preferred engineering choice for modern biogas plants. As a global leader in advanced containment solutions, Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) delivers cutting-edge modular bolted tanks engineered specifically to maximize biogas production efficiency and structural longevity.
1. Unmatched Speed and Efficiency of Modular Installation
Traditional concrete digesters require extensive on-site civil works, complex formwork, and multi-week curing periods that delay project commissioning and inflate labor costs. In contrast, bolted steel tanks offer a streamlined modular approach:
Factory-Controlled Precision: All steel panels are manufactured in an ISO-certified facility under strict quality controls, guaranteeing exact bolt-hole alignment, uniform coating thicknesses, and high structural tolerances.
Rapid On-Site Assembly: Prefabricated panels are bolted together on-site using specialized jacking equipment and high-tensile hardware, reducing construction timelines to just a fraction of concrete alternatives—often complete in weeks rather than months.
All-Weather Construction Capability: Because assembly relies on mechanical bolting rather than wet pours or field welding, construction schedules remain unaffected by adverse weather conditions, ensuring predictable project delivery.
Data Table: Biogas Digester Tank Technology Comparison Matrix
Technical Parameter | Center Enamel Bolted Steel Tanks | Poured-in-Place Concrete Basins | Traditional Field-Welded Steel Tanks |
Construction Method | Modular bolted panels assembled on-site | Formwork, rebar tying, and multi-week concrete pouring | Field-erected welded steel plates requiring extensive NDT |
Installation Speed | Rapid: Erected in 2 to 4 weeks | Extremely Slow: Dependent on concrete curing cycles | Moderate to Slow: Requires extensive site welding |
Corrosion Protection | Factory-applied Glass-Fused-to-Steel (GFS) or FBE | Variable waterproof membranes subject to chemical attack | Field-applied coatings vulnerable to pinhole corrosion |
Future Scalability | High: Modular design allows easy height or volume expansion | Low: Difficult and costly to expand existing concrete structures | Moderate: Requires cutting and welding new steel plates |
Governing Standards | AWWA D103, ISO 28765, ISO 9001 | ACI Structural Concrete Standards | API 650 / ASME Section VIII |
2. Superior Corrosion Defense and Chemical Inertness
Biogas digesters operate in intensely corrosive environments. The anaerobic breakdown of organic waste generates moisture-laden biogas containing trace hydrogen sulfide ($text{H}_2text{S}$), organic acids, and aggressive chemical compounds that rapidly degrade unprotected metal or spall concrete. Center Enamel addresses this through advanced surface technologies:
Glass-Fused-to-Steel (GFS) Technology: High-temperature firing fuses molten glass to structural steel sheets at 820°C to 930°C. This creates a vitrified, non-porous barrier with a chemical resistance spanning pH 1 to 14, completely eliminating internal corrosion and preventing microbial adhesion.
Fusion Bonded Epoxy (FBE) Systems: Alternatively, high-performance thermoset polymer powders are electrostatically applied and thermally cured to form a cross-linked protective barrier that withstands harsh agricultural and industrial effluent chemistry.
3. Structural Flexibility and Future Scalability
Renewable energy projects often start with specific processing capacities that must expand as feedstock availability grows. Bolted steel tanks provide unmatched adaptability:
Modular Expansion: If a plant needs to increase its daily organic loading capacity, Center Enamel’s bolted architecture allows facility operators to easily dismantle, relocate, or vertically expand the tank by adding additional panel rings.
Optimized Global Logistics: Standardized panels are flat-packed into shipping containers, drastically lowering freight overhead and making bolted tanks the ideal choice for remote agricultural and industrial sites worldwide.
Frequently Asked Questions (FAQ)
Q: Why are bolted steel tanks preferred over concrete for biogas digesters?
A: Bolted steel tanks offer much faster installation times, factory-controlled quality assurance, superior corrosion resistance (via Glass-Fused-to-Steel or FBE coatings), and the unique ability to be easily expanded or relocated in the future.
Q: How do Center Enamel bolted tanks prevent corrosion from hydrogen sulfide in biogas?
A: Center Enamel utilizes advanced Glass-Fused-to-Steel (GFS) or Fusion Bonded Epoxy coatings. These non-porous barriers completely isolate the structural steel from corrosive gases, moisture, and organic acids produced during anaerobic digestion.
Q: Can bolted steel biogas digesters be expanded if plant capacity increases?
A: Yes. The modular bolted design allows facility managers to easily increase storage and digestion volume by bolting on additional rings of steel panels as feedstock supply grows.
Q: What international standards govern Center Enamel bolted digester tanks?
A: Center Enamel storage systems are engineered and manufactured in strict compliance with globally recognized standards, including AWWA D103, ISO 28765, and ISO 9001 quality frameworks.
