What Size Thermal Energy Storage Tank Do I Need: Deriving Volume from Load and Swing
'what size thermal energy storage tank do I need' is the question every specifier asks. The honest answer depends on load, storage hours, and temperature swing - not a rule of thumb. This article gives the decision framework for HVAC, district-cooling, and industrial-process duty.
The size of what size thermal energy storage tank do I need you need equals the cooling energy to be shifted divided by the usable temperature swing: V = (load x hours) / (rho x Cp x dT). There is no universal size; a small site may need under 100 m3 while a campus shifts thousands. Match hours and swing to your tariff and load curve.
Start From the Load Curve
Plot your cooling load over 24 hours. The area you want to shift - the peak above your average production - is the energy the tank must store.
If you only need a short bridge (minutes), you want a buffer, not a TES tank; TES is for hour-scale shifting.
Set Hours and Swing
Decide how many peak hours to avoid and the temperature swing the system tolerates. Both scale the volume linearly or inversely.
A wider swing saves volume but may push supply temperature out of coil band, so confirm with the distribution design.
Sanity-Check the Result
Express the result as both m3 and as hours of load. A tank holding 30 minutes of peak is a buffer; one holding 4-8 hours is true TES.
For HVAC, district-cooling, and industrial-process duty, 4-8 hours of shifted cooling is a common, bankable target.
Technical Specifications
Parameter | Specification |
Tank type | Atmospheric, stratified, or ASME-coded (duty dependent) |
Shell material | bolted glass-fused-to-steel (GFS) |
Capacity range | 20-60,000 m3 (bolted GFS, water/liquid duty) |
Stored medium | Chilled water (sensible) or phase-change medium (latent) |
Design temperature | -10 to 50 C (site / water dependent) |
Corrosion protection | Glass enamel, FBE, stainless, or galvanizing |
Insulation | Optional PU / mineral wool for chilled duty |
Codes / standards | AWWA D103, ISO 28765, EN 1090, ASME VIII |
Erection | Bolted modular panels, short site schedule |
QA | ISO 9001, NSF/ANSI 61, WRAS where applicable |
Foundation | Ring wall or slab per geotech report |
Verified Tank Engineering Reference

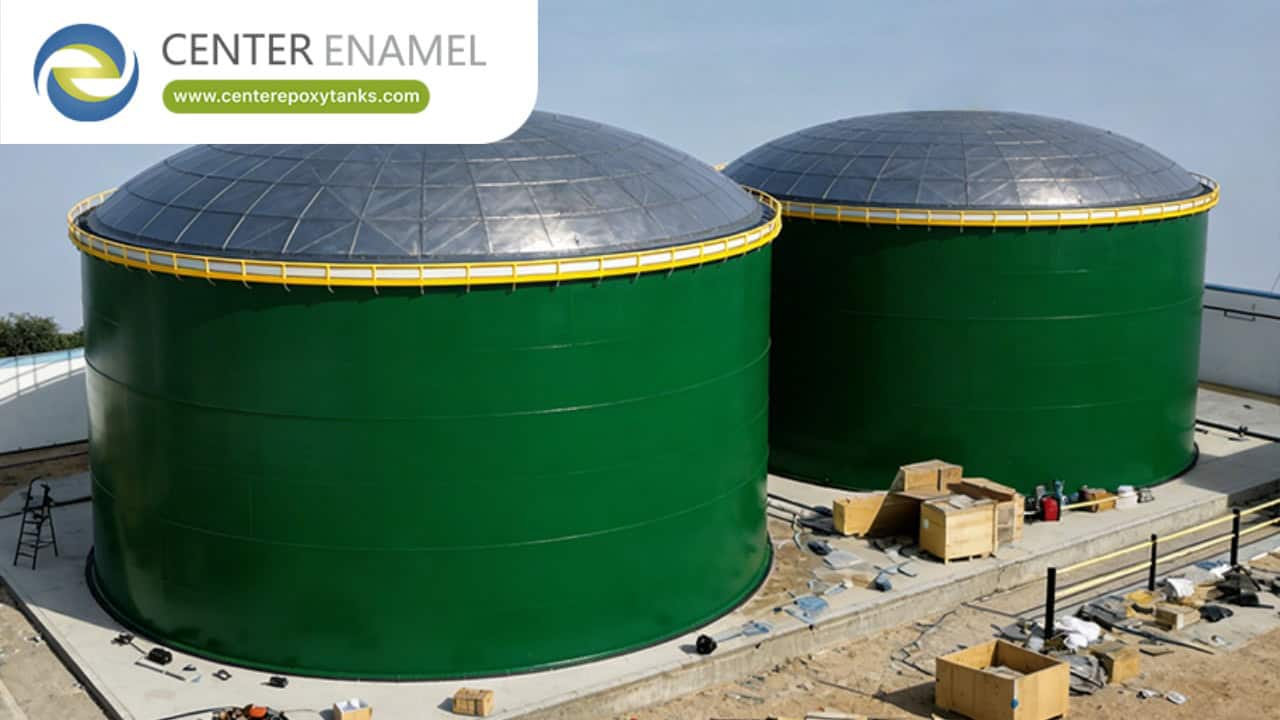

Center Enamel's verified record includes a 2022 Drinking water project in Namibia - 4 unit(s), φ41.26*8.4m (H) 4 set, 44,900 m3 total, GFS (Glass-Fused-to-Steel) bolted tank. Cited as manufacturing-capability evidence, not a thermal-energy-storage project.
Project location | Namibia |
Application | Drinking water |
Tank type | GFS (Glass-Fused-to-Steel) bolted tank |
Scale | 4 unit(s), φ41.26*8.4m (H) 4 set |
Total volume | 44,900 m3 |
Year | 2022-09 |
Note | Cited as manufacturing-capability evidence, not a thermal-energy-storage project. |
Center Enamel Capability
Center Enamel (Shijiazhuang Zhengzhong Technology) manufactures bolted glass-fused-to-steel (GFS) tanks and ASME-coded pressure vessels for water and thermal-energy storage duty. For thermal-energy-storage (TES) service, the relevant products are large-diameter bolted GFS tanks, FBE-coated tanks, stainless steel tanks, welded shells, and ASME Section VIII vessels for pressurized or stratified chilled-water storage.
Quality is managed under ISO 9001, with bolted tanks built to AWWA D103 and ISO 28765 and available certified to NSF/ANSI 61 and WRAS where potable or indirect-potable contact applies. GFS shells are fired at 820-930 C to fuse the glass enamel, giving a durable, inert liner suited to treated chilled water; stainless and FBE options serve aggressive or high-purity loops. CE's verified delivery record - including a large Namibia installation - demonstrates the manufacturing capability behind these specifications.
Frequently Asked Questions
Q: What size what size thermal energy storage tank do I need do I need?
A: It equals shifted cooling energy divided by usable swing: V = (load x hours)/(rho x Cp x dT).
Q: Is there a rule of thumb?
A: No universal size; match hours and swing to your load and tariff.
Q: Buffer or TES?
A: Minutes of storage = buffer; hours = TES.
Q: How many hours is typical?
A: 4-8 hours of shifted cooling is common for data-center duty.
Q: What if my swing is small?
A: You need more volume; widen the swing if the distribution allows.
Q: Should I oversize?
A: A little margin helps, but oversizing wastes capital and footprint.
The size of what size thermal energy storage tank do I need you need is a function of your load curve, not a catalogue number. Derive it from hours and swing and the result is defensible.
