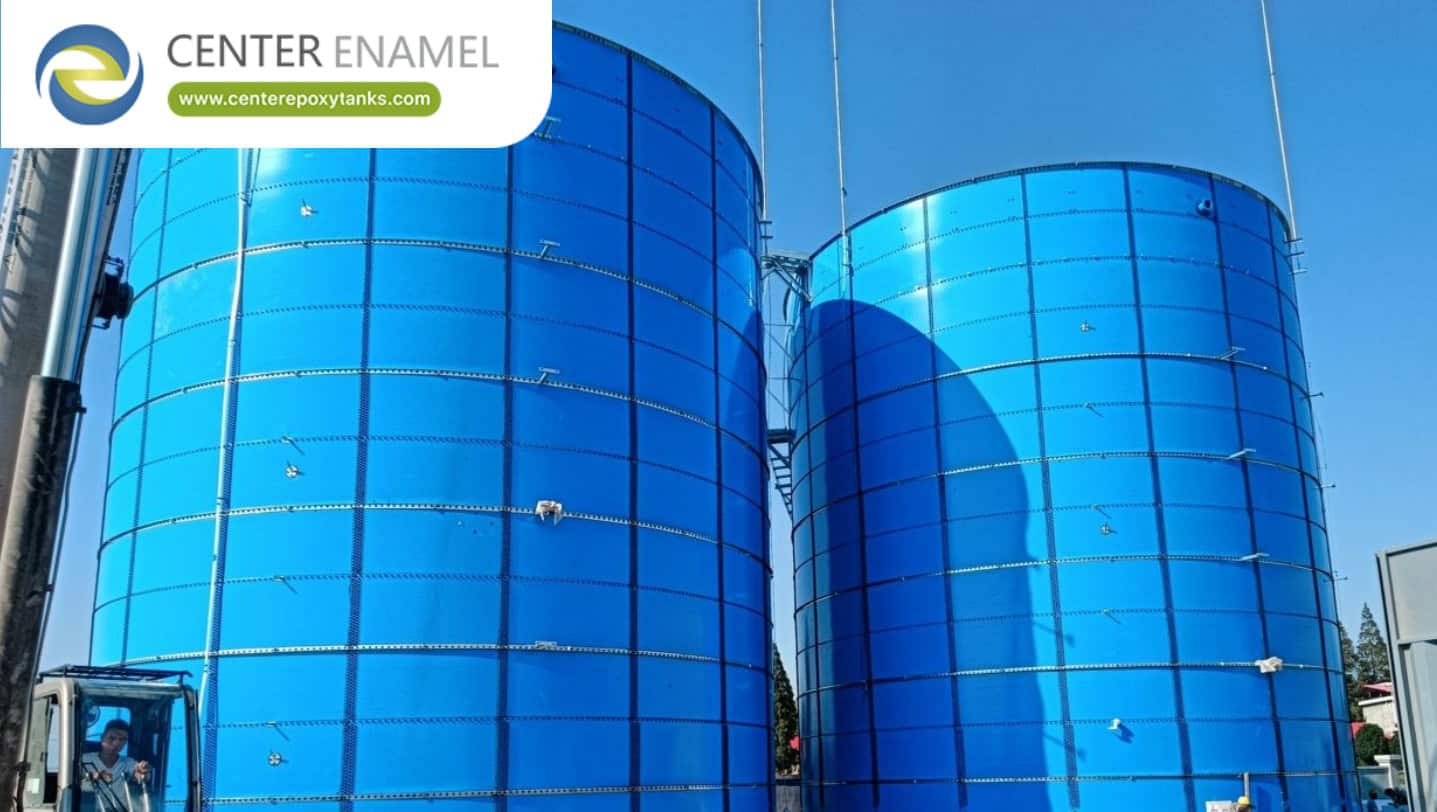

What is an FBE Thermophilic Digester?
An FBE (Fusion Bonded Epoxy) thermophilic digester is an advanced modular, bolted steel industrial containment vessel engineered specifically to facilitate high-temperature anaerobic digestion processes within the thermophilic temperature range (typically 50°C to 60°C or 122°F to 140°F). These high-performance biological reactors accelerate the breakdown of complex organic wastes, municipal sewage sludge, agricultural manure, and industrial organic effluents, resulting in maximized biogas (methane) yields and rapid pathogen destruction.
Operating an anaerobic digester at thermophilic temperatures delivers significantly faster reaction kinetics and greater loading capacities than standard mesophilic systems. However, this high-heat environment creates a much more aggressive internal climate characterized by elevated thermal stress, higher concentrations of volatile fatty acids, and intense hydrogen sulfide ($H_2S$) gas generation. Unprotected concrete or standard carbon steel structures suffer rapid degradation under these conditions. FBE thermophilic digesters combine the high structural tensile strength of carbon steel panels with a factory-applied thermoset epoxy powder coating thermally fused to the substrate, creating an impermeable, chemically inert, and continuous interior barrier designed to withstand extreme thermal and chemical loads over decades of service.
The Engineering and Fusion-Bonding Process
The reliability, thermal stability, and chemical endurance of an FBE thermophilic digestion tank depend on a precise, factory-controlled manufacturing workflow:
1.
Substrate Surface Preparation (Shot Blasting): Premium structural steel plates undergo automated grit or shot blasting to achieve an optimal anchor profile (conforming to rigorous standards like SSPC-SP 10), completely removing mill scale, oxidation, and surface oils.
2.
3.
Electrostatic Powder Application: High-performance thermoset epoxy powder is applied uniformly across both sides of the steel panels using advanced electrostatic spray equipment.
4.
5.
Thermal Cross-Link Firing: Coated sheets enter high-performance thermal ovens (ranging from 150°C to 250°C), where the epoxy powder melts, flows, and chemically cross-links into a dense, continuous polymer film.
6.
7.
Rigorous Quality Control & Holiday Testing: Every individual panel undergoes strict dry film thickness verification and high-voltage holiday spark testing (typically at 1,100V to 1,500V) to guarantee absolute zero pinholes or micro-discontinuities.
8.
Technical Performance Matrix: High-Temperature Digestion Technologies
Technical Parameter | FBE Bolted Steel Thermophilic Digesters | Cast-in-Place Concrete Digesters | Traditional Field-Welded Steel Vessels |
Thermal & Sulfide Resistance | Superior; cross-linked FBE barrier resists high heat, thermal cycling, and aggressive H2S gases | Highly vulnerable to accelerated biogenic sulfide corrosion and sulfuric acid attack at elevated temperatures | Subject to rapid internal oxidation, scaling, and weld-seam degradation under high thermal stress |
Installation Velocity | Rapid modular bolted assembly; significantly reduces project lead times and civil delays | Extremely slow; requires extensive formwork, pouring, and multi-week concrete curing | Slow; requires intensive field welding, plate rolling, and non-destructive testing |
Modularity & Scalability | Easily expanded, modified, or relocated as facility biogas processing demands grow | Permanent civil structure; expansion or relocation is virtually impossible without demolition | Rigid structural footprint; difficult to modify or expand without heavy cutting |
Lifecycle Maintenance | Minimal maintenance required; smooth interior surface simplifies sludge management and cleaning | Requires periodic crack injection, joint sealing, and waterproof membrane renewal | Requires frequent abrasive sandblasting and full interior/exterior repainting |
Key Advantages in Advanced Biogas and Wastewater Facilities
1. Superior Protection Against Extreme Biogenic Sulfide Attack
Thermophilic digestion accelerates biological activity, generating higher concentrations of hydrogen sulfide and organic acids compared to lower-temperature processes. Unprotected steel or concrete tanks suffer from rapid wall thinning and structural failure. The dense, cross-linked FBE coating isolates the structural steel from these corrosive, high-temperature gas loops.
2. Enhanced Thermal and Structural Stability
Operating continuously between 50°C and 60°C requires tanks to withstand constant thermal expansion and contraction. FBE bolted steel digesters feature specialized structural engineering and insulation compatibility that accommodate thermal cycling while maintaining a 100% airtight seal for biogas containment.
3. Rapid Modular Erection Without Hot Work
Wastewater and renewable energy plants often upgrade or expand in active, restricted operational zones where open-flame welding introduces severe safety risks. FBE thermophilic digesters utilize a prefabricated, bolted panel design assembled via high-strength hardware and elastomeric sealants, completely eliminating hazardous field welding.
Frequently Asked Questions (FAQ)
Q: What is an FBE thermophilic digester used for?
A: An FBE thermophilic digester is used as a high-temperature anaerobic biological reactor to process organic waste, municipal sludge, and agricultural manure at temperatures between 50°C and 60°C, optimizing biogas production and pathogen destruction.
Q: How do thermophilic digesters differ from mesophilic digesters?
A: Thermophilic digesters operate at higher temperatures (50°C–60°C vs. 30°C–38°C), which accelerates digestion kinetics, shortens hydraulic retention times, increases methane output, and provides superior pathogen destruction, though it creates a more corrosive internal environment.
Q: Why is Fusion Bonded Epoxy (FBE) essential for thermophilic digestion tanks?
A: High-temperature anaerobic digestion generates intense hydrogen sulfide (H2S) gas, volatile fatty acids, and aggressive moisture condensation that rapidly corrode standard steel and concrete. FBE coatings provide an impermeable, chemically inert barrier that prevents structural corrosion.
Q: What is the expected service life of an FBE thermophilic digestion tank?
A: When manufactured in strict compliance with international industrial design codes (such as AWWA D103 or ISO standards) and properly maintained, an FBE thermophilic digester is engineered for a dependable operational lifespan exceeding 30 years.
