What Is a Galvanized Steel Vertical Water Storage Tank? Engineering, Design, and Applications
In municipal water distribution, commercial fire protection, and large-scale agricultural operations, storing massive volumes of liquid safely requires robust, vertically oriented infrastructure. Among the most trusted containment options deployed worldwide is the galvanized steel vertical water storage tank.

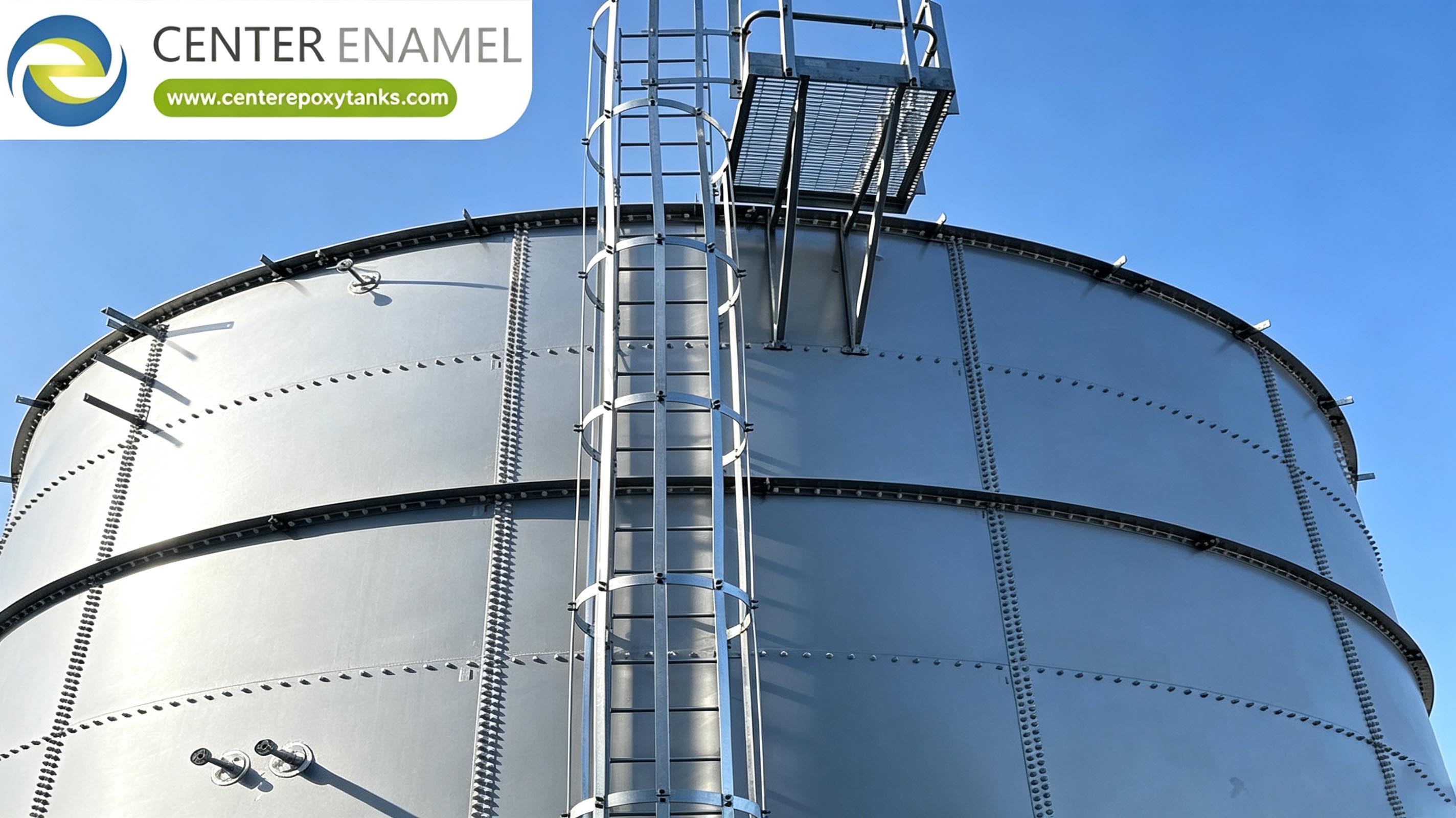

Defined as a ground-supported, cylindrical structure engineered from high-tensile carbon steel panels treated with a protective zinc coating, these tanks combine exceptional vertical load-bearing capacity with rapid modular assembly. Designed to optimize spatial footprints while storing thousands to millions of gallons of liquid, galvanized vertical tanks serve as the backbone of modern industrial and civic fluid management.
Core Engineering and Manufacturing Principles
The structural integrity and long-term durability of a galvanized steel vertical water storage tank depend on advanced metallurgical engineering and precise fabrication standards:
The Hot-Dip Galvanization (HDG) Process: Unlike superficial liquid paints, hot-dip galvanizing immerses fabricated steel panels into molten zinc at high temperatures. This triggers a metallurgical reaction, forming tightly bonded zinc-iron alloy layers topped by pure zinc that actively shields the base carbon steel from atmospheric oxidation and moisture corrosion.
Modular Bolted Construction: Rather than requiring weeks of complex on-site welding or concrete pouring, vertical galvanized tanks are manufactured in factory-controlled environments as precision-punched panels. These panels are transported to the site and bolted together using high-tensile structural hardware.
Engineered Internal Liners: To guarantee absolute water purity and prevent direct contact between stored potable water and structural joints, these tanks utilize high-grade, food-safe internal membranes (such as reinforced EPDM, specialized PVC, or NSF/ANSI 61 certified geomembrane liners).
Compliance with Global Standards: Premium tanks adhere strictly to engineering guidelines such as AWWA D103 (Factory-Coated Bolted Carbon Steel Tanks for Water Storage), ensuring they withstand localized wind loads, seismic events, and maximum hydrostatic liquid pressures.
Primary Applications Across Industries
The versatility, cost-effectiveness, and rapid deployment of galvanized vertical tanks make them ideal for diverse sectors:
Municipal Potable Water Supply: Serving as primary drinking water reserves or distribution boosters for growing communities.
Fire Suppression Systems: Maintaining high-capacity, dedicated water volumes compliant with NFPA 22 codes for industrial complexes and commercial properties.
Agricultural Irrigation and Rainwater Harvesting: Capturing massive runoff volumes from large barn roofs or storing borehole water for continuous crop hydration.
Wastewater and Effluent Buffering: Managing industrial runoff, cooling tower blowdown, and pre-treatment holding stages.
Data Table: Comparison of Vertical Liquid Storage Options
Technical Parameter | Galvanized Steel Vertical Bolted Tank | Cast-in-Place Concrete Reservoir | Field-Welded Carbon Steel Tank |
Installation Speed & Labor | Rapid modular bolting completed in days or weeks | Extremely slow civil pouring, framing, and curing (months) | Complex field welding, crane staging, and on-site coating work |
Corrosion Protection Mechanism | Metallurgical hot-dip galvanized zinc coating plus inert internal liner | High vulnerability to rebar carbonation, cracking, and acid spalling | Requires intensive multi-coat field painting and ongoing touch-ups |
Volumetric Scalability | Highly modular; panels allow straightforward capacity expansion | Permanent monolithic structure; impossible to expand without rebuilding | Rigid welded structure; difficult to modify or relocate safely |
Expected Lifespan | 30 to 40+ years with routine liner and hardware maintenance | 30 to 50 years | 25 to 35 years under strict recoating schedules |
Frequently Asked Questions (FAQ)
Q: What is a galvanized steel vertical water storage tank?
A: It is a ground-supported, cylindrical above-ground storage vessel constructed from factory-fabricated, hot-dip galvanized steel panels that are bolted together on-site and paired with an interior protective liner to store water safely.
Q: Are galvanized steel vertical tanks safe for drinking water storage?
A: Yes. When equipped with certified food-grade interior liners meeting NSF/ANSI Standard 61, these tanks ensure that stored potable water remains pristine, free from heavy metal leaching, and safe for human consumption.
Q: Why is a vertical orientation preferred over horizontal tanks for large water reserves?
A: A vertical cylindrical design minimizes the required ground footprint (making it easier to fit within tight facility boundaries), generates optimal hydrostatic head pressure for gravity-fed distribution, and distributes structural hoop stress more evenly across the tank shell.
Q: How long does a galvanized steel tank last in outdoor environments?
A: With proper site engineering, adherence to AWWA D103 guidelines, and periodic inspection of interior liners and sealants, a high-quality hot-dip galvanized vertical tank can easily provide 30 to 40+ years of reliable service.
