Types of Thermal Energy Storage Tank: Stratified, Mixed, Ice, and Pressurized
There are several types of types of thermal energy storage tank, and the right one depends on storage density, temperature, and system architecture. This article compares stratified, fully mixed, ice, and pressure-class tanks for HVAC, district-cooling, and industrial-process duty.
The main types of types of thermal energy storage tank are stratified chilled-water tanks (sensible, dominant), fully mixed tanks (lower efficiency), ice or phase-change tanks (latent, compact but complex), and pressurized ASME vessels for sealed duty. Stratified water tanks are usually the best balance for HVAC, district-cooling, and industrial-process cooling.
Stratified vs Fully Mixed
A stratified tank holds a stable thermocline so the full temperature swing is usable. A fully mixed tank trends to one average temperature, throwing away much of the storage potential.
Stratification is therefore the default for efficient TES; mixing is only acceptable where the duty is short buffering rather than hour-scale shifting.
Sensible vs Latent (Ice) Storage
Water sensible storage is cheap and simple but needs volume for a few-kelvin swing. Ice storage packs far more energy per volume at near-constant temperature but adds freeze equipment and complexity.
Most owners choose water stratification unless footprint is the binding constraint.
Pressurized Variants
Where the loop is sealed or above atmospheric pressure, the TES asset becomes an ASME Section VIII vessel with a U-stamp rather than an atmospheric tank.
For HVAC, district-cooling, and industrial-process duty pressurized TES is less common than atmospheric stratified tanks but valuable where pump NPSH or sealed storage demands it.
TES Tank Types Compared
Type | Storage | Cost | Efficiency | Best use |
Stratified chilled-water | Sensible (water) | Low | High | Most general cooling duty |
Fully mixed tank | Sensible (water) | Low | Low-Med | Simple buffering, low stratification need |
Ice / phase-change | Latent | High | Med | Space-constrained, tight temp |
Pressurized ASME vessel | Sensible (pressurised) | Med | Med | Sealed or pressurized loops |
Technical Specifications
Parameter | Specification |
Tank type | Atmospheric, stratified, or ASME-coded (duty dependent) |
Shell material | bolted glass-fused-to-steel (GFS) |
Capacity range | 20-60,000 m3 (bolted GFS, water/liquid duty) |
Stored medium | Chilled water (sensible) or phase-change medium (latent) |
Design temperature | -10 to 50 C (site / water dependent) |
Corrosion protection | Glass enamel, FBE, stainless, or galvanizing |
Insulation | Optional PU / mineral wool for chilled duty |
Codes / standards | AWWA D103, ISO 28765, EN 1090, ASME VIII |
Erection | Bolted modular panels, short site schedule |
QA | ISO 9001, NSF/ANSI 61, WRAS where applicable |
Foundation | Ring wall or slab per geotech report |
Verified Tank Engineering Reference

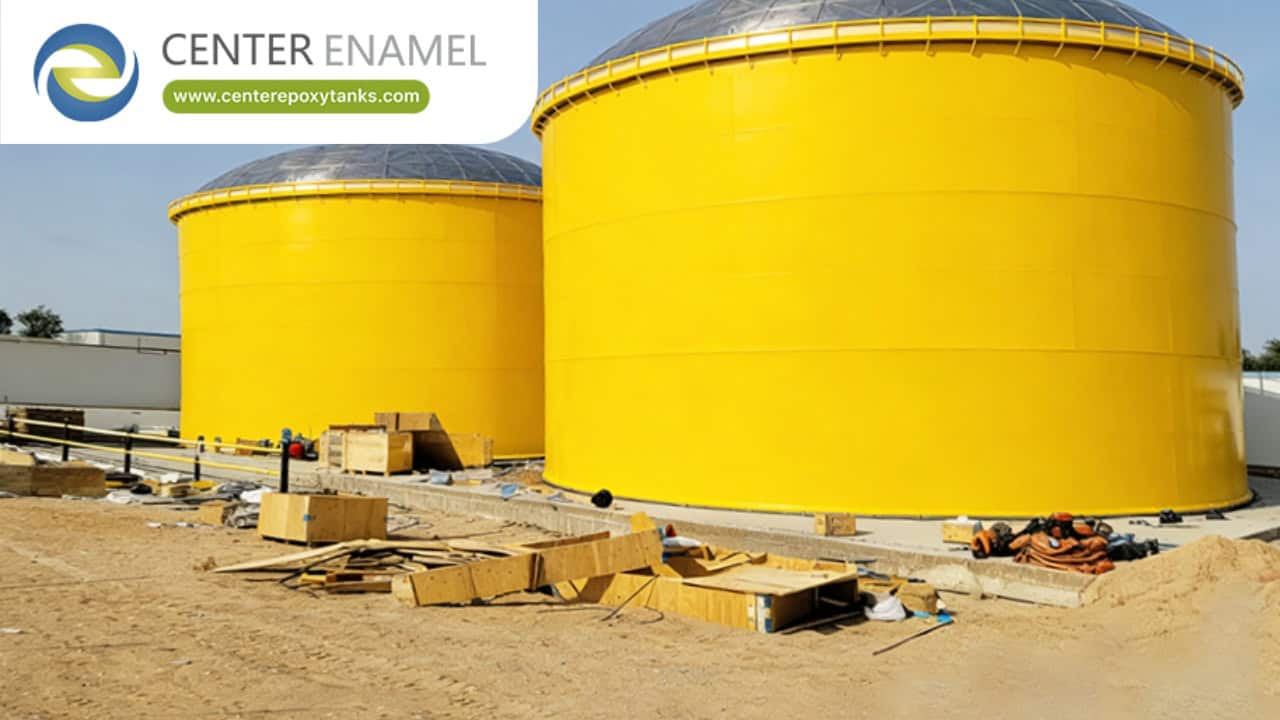

Center Enamel's verified record includes a 2022 Drinking water project in Namibia - 4 unit(s), φ41.26*8.4m (H) 4 set, 44,900 m3 total, GFS (Glass-Fused-to-Steel) bolted tank. Cited as manufacturing-capability evidence, not a thermal-energy-storage project.
Project location | Namibia |
Application | Drinking water |
Tank type | GFS (Glass-Fused-to-Steel) bolted tank |
Scale | 4 unit(s), φ41.26*8.4m (H) 4 set |
Total volume | 44,900 m3 |
Year | 2022-09 |
Note | Cited as manufacturing-capability evidence, not a thermal-energy-storage project. |
Center Enamel Capability
Center Enamel (Shijiazhuang Zhengzhong Technology) manufactures bolted glass-fused-to-steel (GFS) tanks and ASME-coded pressure vessels for water and thermal-energy storage duty. For thermal-energy-storage (TES) service, the relevant products are large-diameter bolted GFS tanks, FBE-coated tanks, stainless steel tanks, welded shells, and ASME Section VIII vessels for pressurized or stratified chilled-water storage.
Quality is managed under ISO 9001, with bolted tanks built to AWWA D103 and ISO 28765 and available certified to NSF/ANSI 61 and WRAS where potable or indirect-potable contact applies. GFS shells are fired at 820-930 C to fuse the glass enamel, giving a durable, inert liner suited to treated chilled water; stainless and FBE options serve aggressive or high-purity loops. CE's verified delivery record - including a large Namibia installation - demonstrates the manufacturing capability behind these specifications.
Frequently Asked Questions
Q: What types of types of thermal energy storage tank exist?
A: Stratified chilled-water, fully mixed, ice/phase-change, and pressurized ASME vessels.
Q: Which is most efficient?
A: Stratified chilled-water tanks - they preserve the full temperature swing.
Q: When use ice storage?
A: When footprint is tight and you can accept freeze-equipment complexity.
Q: What is a fully mixed tank?
A: A tank with little stratification; simpler but less usable storage.
Q: Are pressurized TES tanks coded?
A: Yes - sealed or pressurized duty follows ASME Section VIII.
Q: Which suits data centers?
A: Usually stratified atmospheric chilled-water tanks for campus cooling.
The types of types of thermal energy storage tank trade storage density against complexity. For most HVAC, district-cooling, and industrial-process cooling, a stratified chilled-water tank is the pragmatic optimum.
