Types of Chemical Storage Tanks: Materials, Designs, and Selection Guide
In chemical processing, water treatment, petrochemical refining, and manufacturing operations, safely containing corrosive acids, volatile solvents, bases, and reactive reagents is critical. Because chemicals exhibit vastly different properties—ranging from high corrosiveness and toxicity to extreme volatility and thermal sensitivity—containment infrastructure cannot use a one-size-fits-all approach.
Engineers classify types of chemical storage tanks primarily by their material of construction, structural geometry, and containment configurations. Understanding these options ensures regulatory compliance, environmental protection, and long-term structural integrity.
1. Classification by Material of Construction
The material makeup of a chemical tank dictates its chemical resistance, mechanical strength, and lifecycle cost:
·
Fiberglass-Reinforced Plastic (FRP) Tanks: Manufactured from layers of glass-fiber reinforcement bonded with high-grade thermoset resins, FRP tanks offer exceptional resistance to strong acids (such as hydrochloric and sulfuric acid) and caustic solutions without degrading. They are lightweight and corrosion-resistant, making them ideal for aggressive chemical environments.
·
·
Stainless Steel Tanks (Grades 304 / 316): Renowned for high tensile strength, durability, and a passive chromium-oxide layer that resists rust, stainless steel tanks handle high temperatures, pressures, and large volumes. They are widely used for solvents, high-purity reagents, and mild acids.
·
·
Polyethylene (HDPE / Cross-linked PE) Tanks: Rotationally molded thermoplastic tanks that provide excellent cost-efficiency and corrosion resistance for mild chemicals, water treatment reagents, and fertilizers. They are lightweight and UV-stabilized for outdoor service.
·
·
Polypropylene (PP) Tanks: A thermoplastic polymer capable of handling higher operating temperatures (up to 160 degrees Celsius) than polyethylene. PP tanks excel in storing hot liquids, cleaning solutions, and specific industrial process chemicals.
·
·
Carbon Steel Tanks: Built from iron-carbon alloys, carbon steel tanks offer high structural strength and affordability. While susceptible to corrosion if left unprotected, they are extensively used with internal epoxy linings or for storing non-corrosive hydrocarbons, heavy lubricants, and combustible fluids.
·
·
Nickel-Alloy Steel Tanks: Specialized alloy vessels engineered for extreme industrial environments involving severe chemical attack, high pressures, and rigorous safety compliance.
·
2. Classification by Structural Design and Configuration
Beyond material selection, chemical tanks are engineered in various shapes and layout configurations:
·

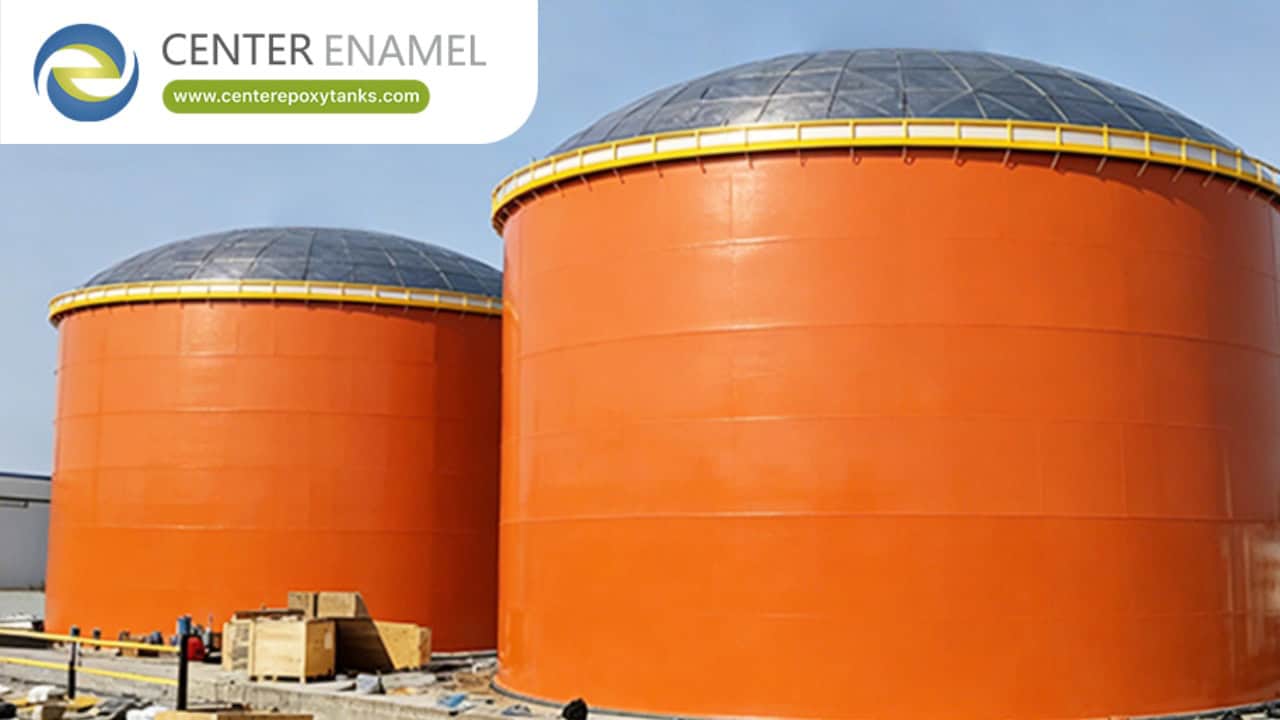

Vertical Cylindrical Tanks: Standing upright on flat or conical bottoms, vertical tanks maximize volumetric capacity in space-limited industrial facilities. Conical-bottom variants allow complete drainage of settling particulates or viscous liquids.
·
·
Horizontal Cylindrical Tanks: Low-profile vessels designed for easier transportation, lower center-of-gravity installations, or restricted vertical clearance sites.
·
·
Bunded / Double-Wall Tanks: Tanks featuring built-in secondary containment (a tank-within-a-tank design) or external containment dikes to capture 110% of volume in the event of a primary wall breach.
·
·
Dosing and Mixer Vessels: Specialized tanks featuring integrated flat equipment shelves for mounting chemical dosing pumps, industrial agitators, and process automation instrumentation.
·
Data Table: Comprehensive Chemical Storage Tank Matrix
Material / Type | Chemical Compatibility Profile | Max Temperature Limit | Primary Industrial Applications | Governing Standards |
Fiberglass (FRP) | Excellent for strong acids, bleaches, caustics | Moderate to High ( 100°C) | Water treatment, mining slurries, sulfuric acid storage | ASTM D3299, ASME RTP-1 |
Stainless Steel (304/316) | Excellent for solvents, organic acids, high-purity fluids | High (300°C+) | Pharmaceuticals, petrochemical processing, food grade | API 650, ASME Section VIII |
High-Density Polyethylene (HDPE) | Good for mild acids, caustics, water treatment chemicals | Low to Moderate (60°C) | Agriculture, water treatment, chemical dosing | ASTM D1998, UL 142 |
Polypropylene (PP) | Excellent for hot caustics, industrial reagents | High ( 160°C) | Plating baths, hot water processes, chemical manufacturing | DVS standards, ASTM |
Carbon Steel | Limited to non-corrosive liquids, oils, and fuels | High (400°°C+) | Hydrocarbon fuels, heavy lubricants, non-corrosive feeds | API 650, API 620, UL 142 |
Frequently Asked Questions (FAQ)
Q: What is the best material for storing strong acids like hydrochloric or sulfuric acid?
A: Fiberglass-reinforced plastic (FRP) with a corrosion-resistant resin liner or specialized high-grade stainless steel/alloy is typically the best choice for storing strong acids, depending on the acid concentration and operating temperature.
Q: What is a bunded or double-wall chemical storage tank?
A: A bunded or double-wall tank features an outer containment shell surrounding the primary storage vessel. This secondary containment captures any accidental leaks or spills, preventing soil and groundwater contamination and meeting environmental safety mandates.
Q: Can polyethylene tanks be used outdoors?
A: Yes. Modern industrial polyethylene and cross-linked polyethylene (XLPE) chemical tanks are manufactured with UV-stabilized compounds to withstand solar radiation and outdoor weather exposure over extended lifespans.
Q: What engineering codes govern industrial chemical storage tanks?
A: Welded metal chemical tanks are commonly governed by API 650 (atmospheric tanks), API 620 (low-pressure tanks), and ASME Section VIII (pressure vessels), while plastic and composite tanks adhere to standards like ASTM D1998 and ASME RTP-1.
