TES Tanks: Compact Definition and Use Cases
TES tanks are thermal batteries made of water — they store cooling as a stratified temperature difference and release it on demand to flatten chiller load.
TES tanks is a vessel that stores cooling as a temperature difference in water, usually a stratified column with a cold lower layer and a warm upper layer separated by a thermocline. Energy is charged by cooling the bottom and discharged by drawing cold water to the load; the tank lets a chilled-water plant shift load, ride through peaks, and add resilience without extra chillers.
Technical Explanation
Water has a high volumetric heat capacity, so a modest temperature lift across a large volume stores substantial cooling. A TES tank exploits this by keeping cold and warm water in distinct layers; a diffuser at each end introduces and extracts water at low velocity so the thermocline stays sharp.
Charging cools the lower portion; discharging draws from it. The tank is effectively a thermal buffer that decouples the chiller schedule from the cooling demand.
Application Scenarios
Commercial cooling, district cooling, industrial process, and data-center plants use TES to shift chiller operation to off-peak hours, provide emergency cooling reserve, and shave peak demand charges.
In a data center the TES tank becomes a dispatchable cooling asset that covers chiller trips and peak IT ramps.
Operational Considerations
Stratification efficiency depends on diffuser design, inlet velocity, and insulation. Standing losses are small but real; regular inspection of nozzles, linings, and level controls preserves performance.
Service access, freeze protection (for glycol-mixed duty), and water treatment to control biofilm complete the operating picture.
TES Tank Operating Parameters
Parameter | Typical value / note |
Storage medium | Water (or water/glycol mix) |
Temperature lift | 5–15 °C across thermocline |
Storage density | ~1–1.5 kWh cooling per m3 |
Diffuser type | Low-velocity, thermocline-preserving |
Design code | AWWA D103 (bolted) / site energy code |
Technical Specifications
Parameter | Specification |

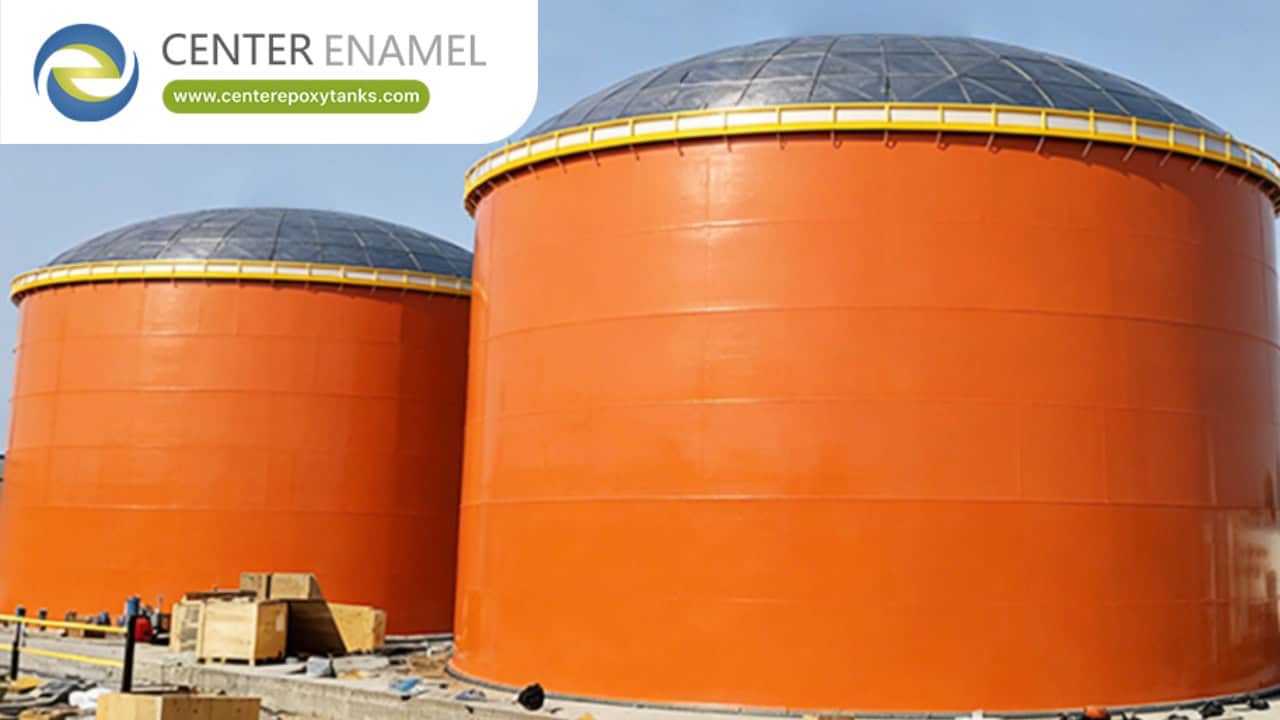

Tank / vessel type | Glass-Fused-to-Steel (GFS) bolted tank |
Primary design standard | AWWA D103-09 (bolted) / ASME Section VIII (pressurized) |
Coating / lining | GFS enamel or FBE epoxy, NSF-61 / WRAS approved for potable contact |
Typical diameter range | 4.6 m to 44 m (bolted modular panels) |
Typical height range | up to 34.8 m (verified single GFS tank) |
Operating temperature | 1 °C to 50 °C (chilled / ambient water service) |
Pressure class | Atmospheric (open/buffer) or pressurized (ASME, up to design code) |
Roof option | Aluminum dome / aluminum flat cover / internal floating |
Reference capacity | 21,099 m3 |
Certifications | ISO 9001, NSF 61, EN 1090, ISO 28765, WRAS, FM |
Center Enamel Capability
Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) has manufactured bolted storage tanks since 2008, with product lines spanning Glass-Fused-to-Steel (GFS), fusion-bonded epoxy (FBE) coated, stainless steel, and hot-dip galvanized bolted tanks, plus aluminum geodesic dome roofs. For the Glass-Fused-to-Steel (GFS) bolted tank technology discussed here, the company's verified manufacturing system — certified to ISO 9001 with NSF/ANSI 61, WRAS, FM and EN 1090 alignments — supports the fabrication, coating, and QA discipline a demanding water-storage or thermal-energy-storage duty requires.
The engineering and quality system follows AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and EN 1090, and the product range is certified to ISO 9001, NSF 61, EN 1090, ISO 28765, WRAS, FM, LFGB, BSCI, ISO 45001 and related standards. With approximately 200 enameling patents and export to more than 100 countries, Center Enamel supports specification, fabrication, and site erection for water-storage and thermal-energy-storage projects worldwide.
Frequently Asked Questions
Q: Which material is most suitable for a data-center cooling water tank?
A: GFS and FBE bolted tanks are the common choice for large atmospheric duty because the factory-applied enamel or epoxy lining resists corrosion and is NSF-61 / WRAS approved; stainless is used where hygiene or pressure demands it.
Q: Does Center Enamel have a published data-center TES project?
A: Center Enamel's verified record does not include a published data-center or thermal-energy-storage tank installation. Its large bolted-tank and ASME vessel deliveries are cited as manufacturing-capability evidence for the duty, not as a data-center reference.
Q: What standards apply to a bolted water-storage tank?
A: Atmospheric bolted tanks are typically designed to AWWA D103-09 with coatings qualified to NSF/ANSI 61 and ISO 28765; pressurized vessels follow ASME Section VIII. Fire-water duty may add FM or local authority requirements.
Q: How large can a single bolted GFS tank be?
A: Center Enamel has fabricated single GFS tanks up to 32,000 m3 and 34.8 m in height, demonstrating the modular-panel capability needed for large cooling-water or TES volumes on a data-center site.
Q: Why add a buffer tank to a chilled-water plant?
A: A buffer tank prevents short-cycling of chillers, decouples chiller and load flow, and absorbs expansion, improving part-load efficiency and protecting compressors during transient demand.
Q: What does off-peak TES charging save?
A: Charging a chilled-water TES tank at night shifts compressor load to cheaper, lower-carbon electricity and reduces on-peak demand charges, while providing headroom during peak IT load.
TES Tanks: Compact Definition and Use Cases comes down to matching the tank type, material, and code to the specific duty — makeup, buffer, TES, fire, or pressurized — and verifying the supplier's lining certification and references. With corrosion-resistant bolted construction and AWWA/ASME-aligned design, a data-center or industrial water-storage tank becomes a reliable, long-life node in the cooling strategy.
Discuss your tank duty, capacity, and code requirements with a Center Enamel engineer, or request technical specifications and a reference list for a comparable project.
