Natural Gas Storage Tanks: Engineering & Procurement Guide

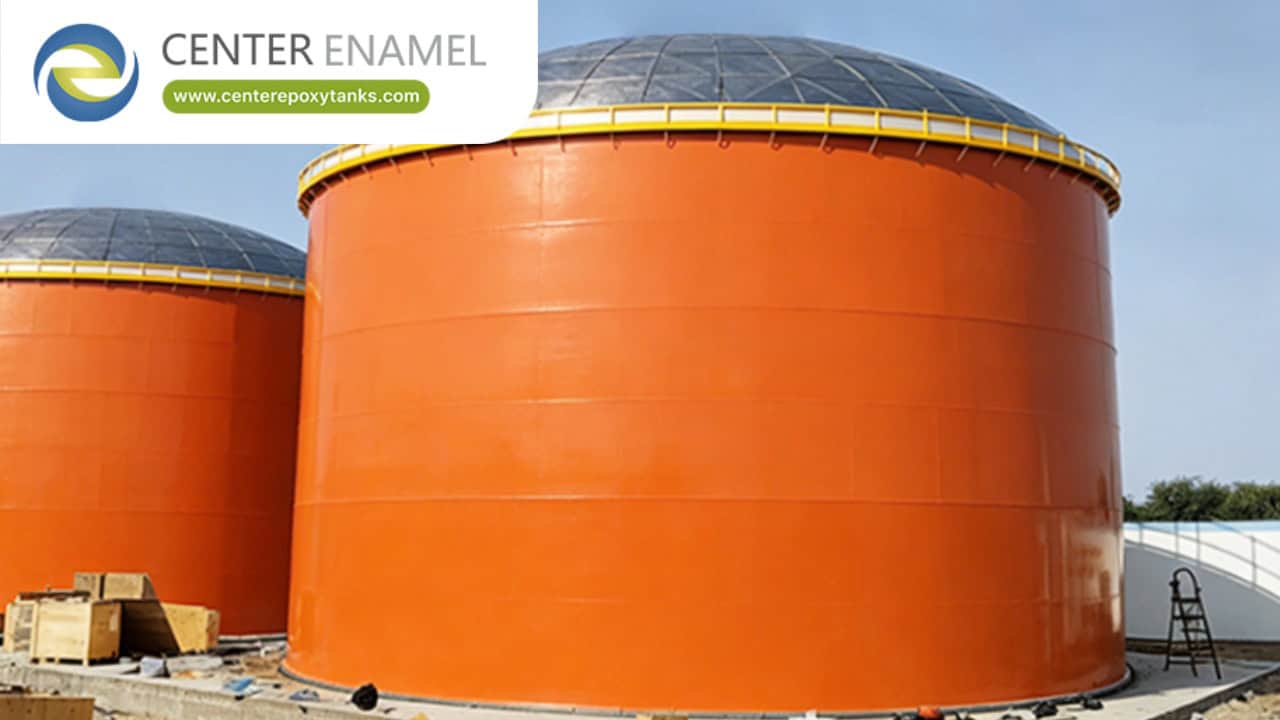

Natural gas storage—whether in the form of Liquefied Natural Gas (LNG) or Compressed Natural Gas (CNG)—represents a high-stakes engineering sector requiring rigorous adherence to pressure vessel safety codes. Because these systems operate under high pressure or cryogenic conditions, the margin for error is non-existent. Chinese manufacturing facilities, leveraging automated robotic welding and stringent Non-Destructive Testing (NDT), have become global leaders in providing ASME-certified storage infrastructure. This guide outlines the essential engineering standards, design considerations, and procurement vetting protocols required to source reliable gas storage vessels from China.
1. Regulatory Framework & Design Standards
Natural gas storage tanks are not simple containers; they are classified as high-pressure vessels. Procurement teams must verify that the manufacturer operates under recognized global safety codes to ensure the vessel is legally operational in the destination market.
Key International & Domestic Codes:
● ASME Section VIII, Division 1/2: The global standard for pressure vessel design, fabrication, and testing. A "U-Stamp" is the universal mark of quality for high-pressure storage.
● GB150: The People's Republic of China’s national standard for pressure vessels. Modern Chinese manufacturers often certify vessels to both ASME and GB150 simultaneously to satisfy dual-market requirements.
● API 620: Used for large, low-pressure, aboveground storage tanks, specifically for LNG at near-atmospheric conditions.
The Engineering Math: Hoop Stress
The shell thickness of a natural gas vessel is determined by the internal design pressure. Per ASME Section VIII, the minimum wall thickness (t) is calculated as:
2. Advanced Fabrication & Quality Assurance
The reliability of a natural gas storage tank is defined by its weld seams. Leading Chinese manufacturers have moved away from manual labor toward highly controlled, automated environments.
1.CNC Precision & Beveling：Step 1: Material Prep。
Steel plates (often high-strength carbon steel like SA-516 Gr.70 or low-temp steel for LNG) are cut via CNC plasma. Edges are beveled to precise tolerances to allow for full-penetration welding.
2.Submerged Arc Welding (SAW)：Step 2: Automated Joining。
Longitudinal and circumferential seams utilize automated SAW tractors. This ensures uniform bead profiles and minimal Heat Affected Zones (HAZ), which are critical for gas containment.
3.100% NDT Inspection：Step 3: Verification。
Critical pressure-retaining welds undergo 100% Radiographic Testing (RT) or Ultrasonic Testing (UT). This detects subsurface porosity, slag inclusions, or hairline cracks invisible to the naked eye.
4.Post-Weld Heat Treatment (PWHT)：Step 4: Stress Relief。
For vessels subjected to cyclic loading or lethal service, the entire unit is furnace-heated to relieve residual stresses induced by the welding process, preventing brittle failure.
3. Storage Type Comparison Matrix
When requesting an RFP from a manufacturer, clearly define the storage state, as the engineering requirements differ significantly.
Technical Parameter | CNG (Compressed) | LNG (Liquefied/Cryogenic) |
Physical State | High-Pressure Gas | Super-cooled Cryogenic Liquid |
Construction | Thick-walled steel / Composite | Double-walled Vacuum Insulated |
Insulation | Minimal / Exterior cladding | Perlite or Vacuum + Multi-Layer |
Temperature | Ambient | $-162^circtext{C}$ |
Primary Risk | Pressure Rupture | Boiling Off (Boil-off gas management) |
4. Procurement Vetting Matrix
Use this matrix to differentiate high-end pressure vessel fabricators from commodity steel supply shops.
Vetting Criteria | Top-Tier Manufacturer | Commodity-Grade Supplier |
Certifications | ASME "U" Stamp / NB "R" Stamp | Basic ISO 9001 only |
Material Traceability | 100% Heat-Number Traceability (MTRs) | Partial or Batch-only documentation |
Testing Capability | In-house X-ray bunkers & Hydro-bays | Outsourced NDT (Variable reliability) |
Engineering Support | Offers custom FEA (Finite Element Analysis) | Offers "Standard" sizes only |
5. Frequently Asked Questions (FAQ)
Q: Are Chinese-made LNG tanks compatible with international safety systems?
A: Yes. Modern Chinese manufacturers often integrate global components (valves, instrumentation, safety relief systems) from brands like Emerson, Flowserve, or WIKA into their tanks, ensuring seamless integration with your existing SCADA and safety systems.
Q: How do I verify a manufacturer's ASME "U" Stamp status?
A: You can verify the validity of any manufacturer’s ASME certificate directly through the ASME database or the National Board of Boiler and Pressure Vessel Inspectors website. Always request the manufacturer's current certificate copy and cross-reference the expiration date.
Q: Can these tanks be shipped internationally if they are oversized?
A: Yes. Pressure vessels are often transported via "Break Bulk" shipping or as sectional "knock-down" kits for massive storage farms. Top-tier manufacturers have dedicated logistics departments to handle the specialized cradles and lifting plans required for safe transport.
Sourcing natural gas storage tanks from China is a strategic decision that hinges on technical due diligence. By mandating ASME Section VIII compliance, verifying 100% radiographic weld testing, and ensuring rigorous material traceability, procurement managers can leverage China’s advanced industrial fabrication capacity to deploy world-class energy infrastructure that meets the most stringent safety standards.
