Knowing how to calculate how to calculate thermal energy storage tank capacity capacity turns a vague 'we need storage' into a defensible number. This article gives the calculation and the assumptions behind it for HVAC, district-cooling, and industrial-process duty.



Calculate how to calculate thermal energy storage tank capacity capacity from the cooling energy to be stored: E = Q_load x t_hours, then volume V = E / (rho x Cp x dT). For a 1 MW cooling load shifted 4 hours across a 5 K swing, roughly V = 1,000 kW x 4 h / (1000 x 4.18 x 5) = about 190 m3 of usable water. Adjust for tank geometry and unusable end volumes.

The Core Equation

Energy to store: E (kWh) = cooling load (kW) x storage hours. Convert to volume with the water relation V = E / (rho x Cp x dT), where dT is the usable warm-to-cold swing.

Example: 1 MW for 4 h at 5 K swing gives ~190 m3 usable. Real tanks add margin for thermocline thickness and inlet/outlet mixing losses.

Sensitivity to Swing and Hours

Doubling the temperature swing halves the volume; doubling storage hours doubles it. The swing is bounded by what the distribution system can tolerate.

Owners often trade a slightly wider swing for a smaller, cheaper tank, provided coil supply temperature stays in band.

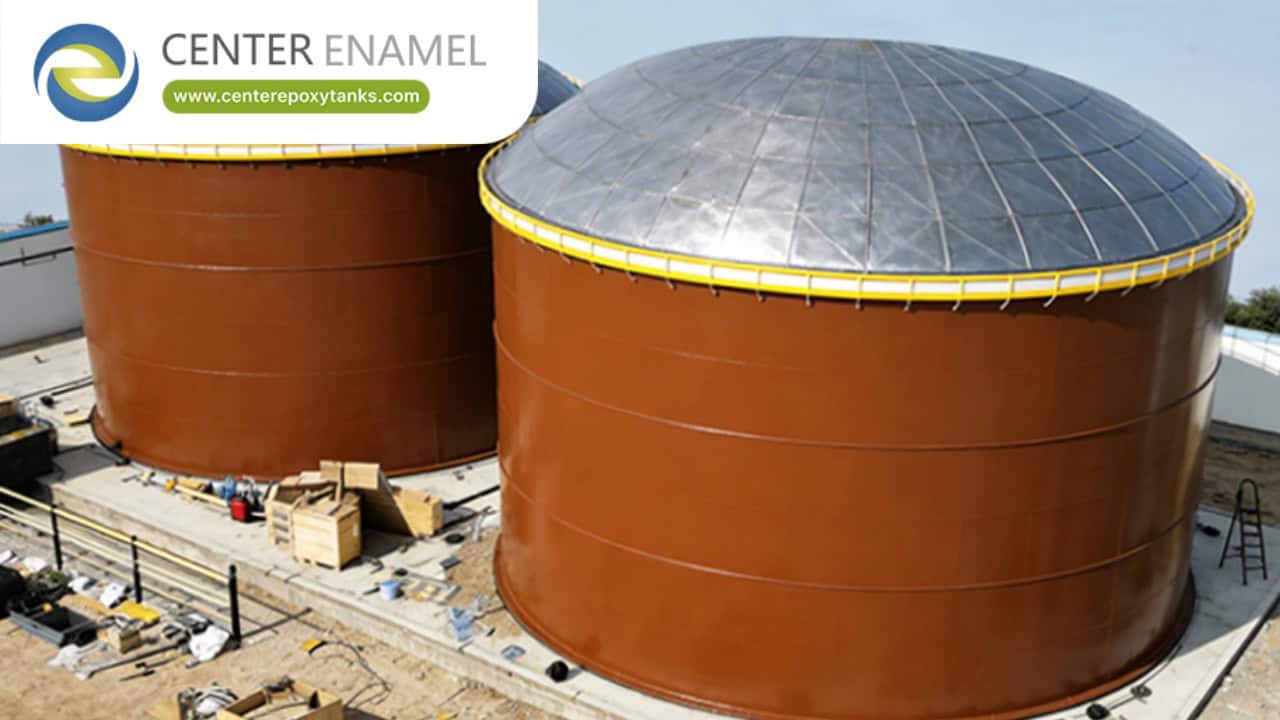

From Volume to Geometry

Tall tanks reduce footprint and improve stratification per unit height, but raise foundation load and height. Bolted panels favour preferred module diameters.

For HVAC, district-cooling, and industrial-process sites, geometry is set by available plot and crane or panel logistics.
