How Does a Thermal Energy Storage Tank Work: Charge, Stratify, and Discharge
A how does thermal energy storage tank work works by charging and discharging a stored-temperature volume through controlled stratification. In HVAC, district-cooling, and industrial-process duty the physics is simple but the engineering is precise. This article explains the charge-discharge cycle and the stratification that makes it efficient.
A how does thermal energy storage tank work works by maintaining a stable thermocline: warm return water is placed at the top and cold supply water at the bottom through low-velocity diffusers. Charging adds cold (or removes heat); discharging draws cold from the bottom. The tank stores usable cooling as the temperature difference between layers, without mixing them.
Charging and Discharging
During charge, the plant cools water and pushes it into the tank through a cold diffuser at the bottom while warm water leaves the top. During discharge the flow reverses: cold is drawn from the bottom and warm returns to the top.
The usable storage is the mass of water multiplied by its specific heat and the temperature swing between the warm and cold layers - the classic Q = m x Cp x dT relation.
Stratification and the Thermocline
A stable thermocline - the thin boundary between warm and cold layers - is what makes the tank useful. Good diffusers introduce flow with almost no momentum so layers stay distinct.
If the thermocline collapses through poor diffuser design, the whole tank trends to one average temperature and most of the stored cooling is lost.
Controls and Integration
In HVAC, district-cooling, and industrial-process systems the TES sequence is governed by the energy-management system, which decides when to charge from chillers or free cooling and when to discharge to shave peak load.
Sensors at multiple depths track the thermocline; the controller protects both the tank and the downstream coils by holding supply temperature in band.
Technical Specifications
Parameter | Specification |
Tank type | Atmospheric, stratified, or ASME-coded (duty dependent) |
Shell material | bolted glass-fused-to-steel (GFS) |
Capacity range | 20-60,000 m3 (bolted GFS, water/liquid duty) |
Stored medium | Chilled water (sensible) or phase-change medium (latent) |
Design temperature | -10 to 50 C (site / water dependent) |
Corrosion protection | Glass enamel, FBE, stainless, or galvanizing |
Insulation | Optional PU / mineral wool for chilled duty |
Codes / standards | AWWA D103, ISO 28765, EN 1090, ASME VIII |
Erection | Bolted modular panels, short site schedule |
QA | ISO 9001, NSF/ANSI 61, WRAS where applicable |
Foundation | Ring wall or slab per geotech report |
Verified Tank Engineering Reference

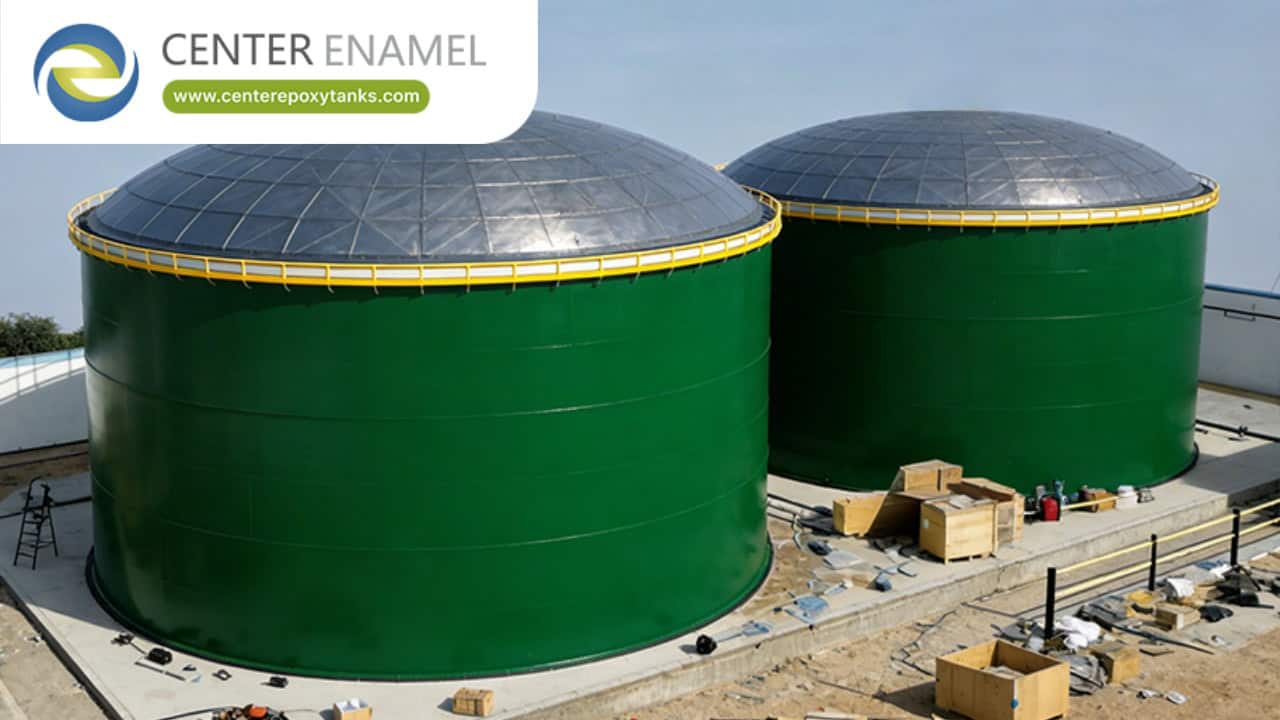

Center Enamel's verified record includes a 2022 Drinking water project in Namibia - 4 unit(s), φ41.26*8.4m (H) 4 set, 44,900 m3 total, GFS (Glass-Fused-to-Steel) bolted tank. Cited as manufacturing-capability evidence, not a thermal-energy-storage project.
Project location | Namibia |
Application | Drinking water |
Tank type | GFS (Glass-Fused-to-Steel) bolted tank |
Scale | 4 unit(s), φ41.26*8.4m (H) 4 set |
Total volume | 44,900 m3 |
Year | 2022-09 |
Note | Cited as manufacturing-capability evidence, not a thermal-energy-storage project. |
Center Enamel Capability
Center Enamel (Shijiazhuang Zhengzhong Technology) manufactures bolted glass-fused-to-steel (GFS) tanks and ASME-coded pressure vessels for water and thermal-energy storage duty. For thermal-energy-storage (TES) service, the relevant products are large-diameter bolted GFS tanks, FBE-coated tanks, stainless steel tanks, welded shells, and ASME Section VIII vessels for pressurized or stratified chilled-water storage.
Quality is managed under ISO 9001, with bolted tanks built to AWWA D103 and ISO 28765 and available certified to NSF/ANSI 61 and WRAS where potable or indirect-potable contact applies. GFS shells are fired at 820-930 C to fuse the glass enamel, giving a durable, inert liner suited to treated chilled water; stainless and FBE options serve aggressive or high-purity loops. CE's verified delivery record - including a large Namibia installation - demonstrates the manufacturing capability behind these specifications.
Frequently Asked Questions
Q: How does a how does thermal energy storage tank work work?
A: It stores cooling as a temperature difference between stratified warm and cold layers, charged and discharged through diffusers.
Q: What is the thermocline?
A: The boundary layer between warm and cold water; keeping it thin preserves usable storage.
Q: What is a diffuser?
A: A low-velocity inlet that introduces water without disturbing stratification.
Q: How is usable capacity calculated?
A: From water mass, specific heat, and the warm-to-cold temperature swing (Q = m x Cp x dT).
Q: Who controls charging?
A: The site energy-management system, based on tariff, load, and free-cooling availability.
Q: Can a TES tank freeze?
A: Chilled-water TES stays above freezing; glycol or trace heating protects any exposed loop.
A how does thermal energy storage tank work works through disciplined stratification: charge cold, hold the thermocline, discharge on demand. The tank is only as good as its diffuser and control logic.
