High-Capacity Biogas Holders for Agricultural Waste Management: Optimizing Renewable Energy and Methane Capture
In modern agricultural operations, managing massive volumes of livestock manure, crop residues, and food processing byproducts presents both an environmental challenge and a substantial economic opportunity. Through the biological process of anaerobic digestion (AD), agricultural waste is transformed into nutrient-rich organic fertilizer and renewable biogas rich in methane (CH4). However, because biological gas production fluctuates continuously based on feeding cycles and ambient temperatures, agricultural facilities require reliable, high-capacity containment systems to capture, buffer, and stabilize gas yields safely.
Traditional rigid steel gasometers and concrete storage tanks frequently involve prohibitive capital expenditures, slow construction timelines, and severe vulnerability to biogenic hydrogen sulfide (H2S) corrosion. To overcome these limitations, advanced renewable farming cooperatives and industrial biogas developers increasingly rely on High-Capacity Double Membrane Biogas Holders. As a globally trusted leader in environmental containment engineering, Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) delivers cutting-edge flexible biogas storage solutions engineered specifically for rigorous agricultural waste management.
Engineering Excellence: The Role of Double-Membrane Holders in Agriculture

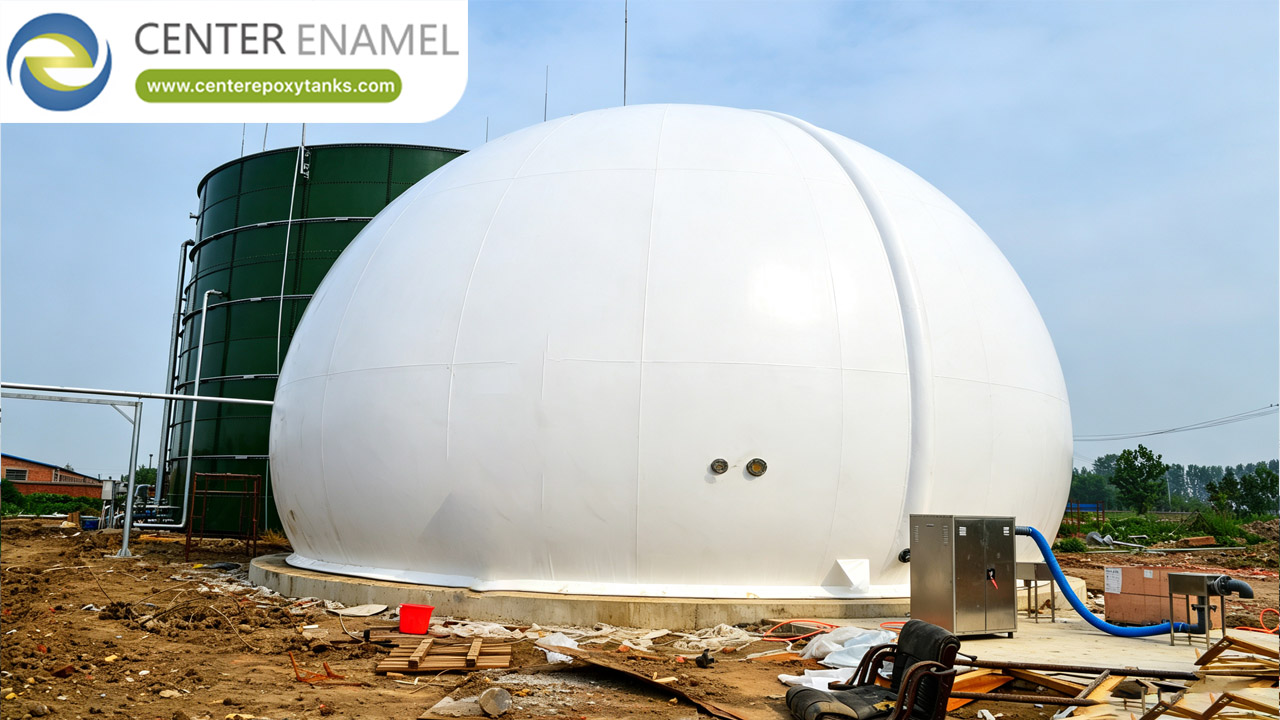

Center Enamel’s high-capacity biogas holders are engineered as standalone ground-mounted systems or tank-mounted double-membrane structures, combining advanced industrial fabrics with automated pressure regulation:
Variable-Capacity Lung Design: The multi-membrane configuration features an inner gas storage layer that expands and contracts dynamically with daily biogas generation, ensuring smooth, continuous gas delivery to downstream Combined Heat and Power (CHP) engines or biomethane upgrading units.
Superior Corrosion Immunity: Agricultural biogas contains high levels of moisture and corrosive hydrogen sulfide (H2S). Fabricated from high-tenacity polyester base fabrics coated with specialized PVC and premium PVDF (Polyvinylidene Fluoride) surface treatments, Center Enamel's balloons provide total chemical inertness against biogenic acid attack.
Constant-Pressure Automation: An automated support blower continuously regulates air pressure in the outer weather-protection chamber, ensuring stable output gas pressure (typically 0.5 to 3.0 kPa) regardless of how much gas is stored in the inner membrane.
Severe Weather and Snow Resistance: The aerodynamic spherical or conical geometry naturally sheds heavy agricultural snow loads (rated up to 1.5text{ kN/m}^2) and withstands high-velocity winds up to 150text{ km/h}.
Data Table: Agricultural Biogas Storage Technology Comparison Matrix
Technical Parameter | Center Enamel Double-Membrane Biogas Holder | Traditional Fixed Steel Gasometer | Poured-in-Place Concrete Gas Tank |
Material Composition | High-tenacity PVC/PVDF coated industrial polyester fabrics | Heavy structural carbon steel plates | Cast-in-place reinforced concrete |
Corrosion Resistance | Superior; completely inert to biogenic hydrogen sulfide (H2S) and moisture | Low; requires frequent sandblasting and protective recoating | Moderate; vulnerable to sulfate attack and structural spalling |
Volume Flexibility | Variable-capacity expansion absorbing dynamic agricultural gas yields | Fixed or mechanically guided telescopic volume | Fixed volume capacity |
Installation Velocity | Rapid modular setup completed in days or weeks | Slow field-erected welding, craning, and inspection | Extremely slow formwork, pouring, and curing phases |
Governing Standards | ISO 9001, EN 13782, ATEX, Eurocode 1 | API 650 / Standard industrial steel codes | ACI Structural Concrete Standards |
Environmental and Economic Impact on Farming Communities
Deploying high-capacity biogas holders in agricultural waste management drives substantial operational benefits:
Greenhouse Gas Mitigation: Capturing fugitive methane emissions from open manure lagoons significantly reduces carbon footprints and aligns farms with international carbon credit programs.
Energy Independence: Stored biogas fuels on-site generators, providing reliable electricity and thermal energy to power milking parlors, greenhouses, and farm machinery.
Odor and Vector Control: Enclosing anaerobic digestion processes eliminates foul agricultural odors and prevents pest proliferation, improving community relations.
Frequently Asked Questions (FAQ)
Q: Why are high-capacity biogas holders critical for agricultural waste management?
A: Agricultural biogas production fluctuates daily based on organic feeding rates and temperature changes. High-capacity biogas holders act as an essential buffer, storing surplus gas during peak production and ensuring a steady, reliable fuel supply for downstream generators or boilers.
Q: What materials are used in Center Enamel agricultural biogas balloons?
A: Our biogas holders are fabricated using high-tenacity industrial polyester base fabrics coated with specialized PVC and advanced PVDF surface treatments, offering high tensile tear strength, fire retardancy, and absolute resistance to corrosive agricultural gases like H2S.
Q: How do double-membrane holders manage fluctuating gas volumes from livestock manure?
A: The inner membrane expands and contracts flexibly inside the protective outer membrane. Automated blower systems adjust air pressure in the outer chamber dynamically, keeping output gas pressure stable regardless of inventory changes.
Q: Can these high-capacity gas holders be retrofitted onto existing agricultural anaerobic digesters?
A: Yes. Center Enamel provides versatile mounting configurations that allow double-membrane biogas holders to be installed either on standalone ground foundations or directly on top of existing concrete and Glass-Fused-to-Steel (GFS) anaerobic digesters.
