Fixed Cone Roof Tanks: Engineering Design, Venting, and Applications
In industrial liquid bulk storage, aboveground storage tanks (ASTs) are categorized based on their structural design and environmental handling capabilities. Among these, the fixed cone roof tank is the most traditional, cost-effective, and widely utilized configuration for storing stable, low-volatility liquids.
Governed globally by standards such as API 650 for welded steel tanks and AWWA D100 for water storage reservoirs, fixed cone roof tanks feature a permanently attached conical roof welded directly to the top of the cylindrical shell. This design provides robust weather protection for the stored media, shielding contents from rain, snow, and wind-blown debris.
1. Structural Design and Framing Geometries
Fixed cone roof tanks are built in distinct structural configurations depending on tank diameter, internal pressure limits, and roof load requirements:
Self-Supported Cone Roofs: Built with a conical shape sloping upward to a central apex, these roofs rely entirely on the perimeter shell for structural support. They are typically implemented on smaller-diameter tanks (generally under 50 feet or 15 meters) where internal support columns are unnecessary.
Structurally-Supported Cone Roofs: For larger diameter tanks, cone roofs require internal framing supported by structural steel rafters, purlins, and central columns to handle dead loads and wind/snow loads.
Weld-to-Shell Fragile Joint Design: Per API 650 guidelines, the roof-to-shell junction on atmospheric cone roof tanks is often designed as a "fragile joint." In the event of an internal vapor explosion, this weak seam is engineered to fail before the bottom-to-shell weld, protecting the tank foundation and preventing catastrophic rupture.
2. Vapor Space Management and Venting Requirements
Unlike floating roof tanks that rest directly on the liquid surface, fixed cone roof tanks maintain a vapor space (known as ullage) between the liquid level and the roof. This operational characteristic creates specific management requirements:
Breathing Losses: As ambient temperatures fluctuate day and night, the vapor space expands and contracts, forcing air and hydrocarbon vapors out of the tank through breather vents.
Filling Losses: When liquid is pumped into the tank, outgoing air saturated with product vapors is displaced into the atmosphere.
Pressure-Vacuum Relief Valves (PVRVs): To protect the tank shell from over-pressurization or vacuum collapse during liquid transfer and thermal breathing, fixed cone roof tanks are equipped with calibrated PVRVs and emergency roof hatches engineered per API 2000 standards.
Data Table: Fixed Cone Roof Tank Configuration Matrix
Roof Framing Type | Typical Tank Diameter Limit | Structural Support Mechanism | Principal Stored Media Applications | Governing Standards |
Self-Supported Cone Roof | Typically 50 ft (15 m) | Perimeter shell attachment (No internal columns) | Diesel, fuel oil, water, heavy lubricants | API 650, AWWA D100 |
Supported Cone Roof | Exceeding 50 ft (15 m) up to large footprints | Internal rafters, girders, and central columns | Heavy crude oil (low volatility), chemicals, wastewater | API 650 |

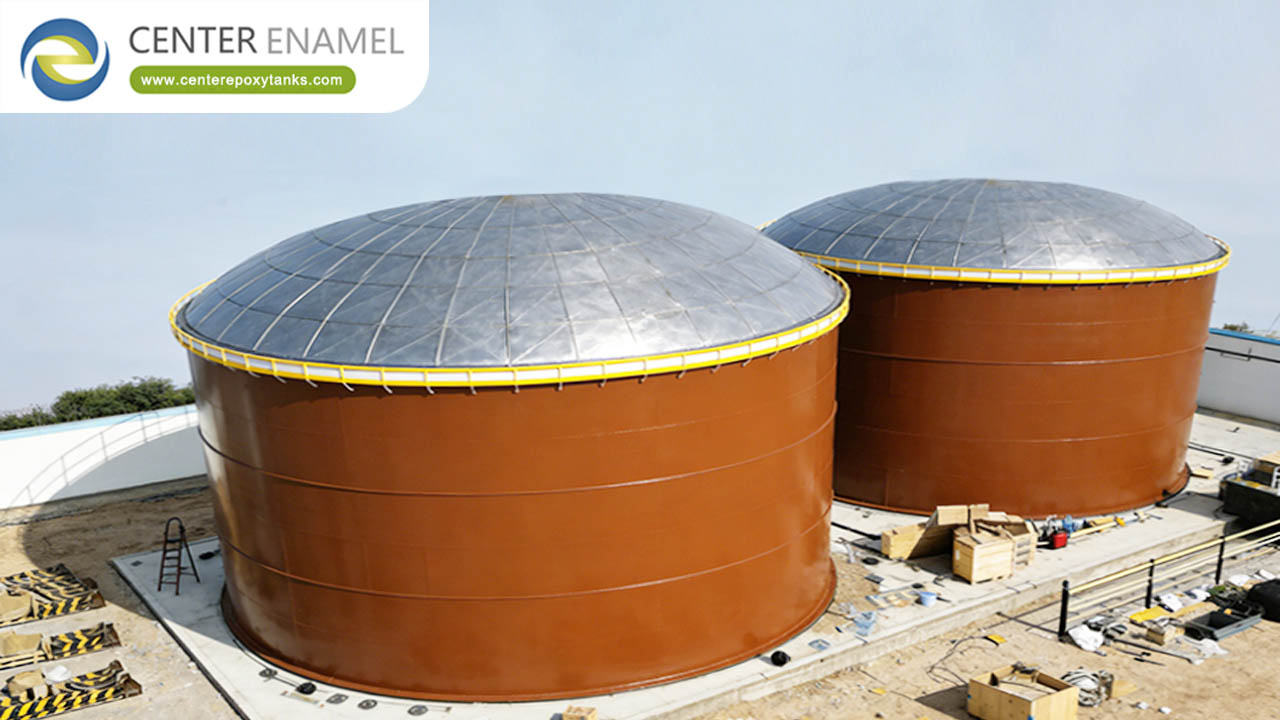

Aluminum Geodesic Dome Retrofit | Custom scalable spans | Clear-span space frame (No internal columns) | Refined fuels, water reservoirs, wastewater clarifiers | AWWA D103, API 650 |
3. Advantages and Limitations
Advantages:
Cost-Effective Construction: Simpler design, fewer moving parts, and standard fabrication make fixed cone roof tanks significantly cheaper to build than floating roof variants.
Robust Weather Protection: Complete overhead containment prevents rainwater, snow, and airborne contaminants from mixing with the stored product.
Low Maintenance: The absence of moving floating deck seals or rolling ladders reduces routine operational upkeep.
Limitations:
Frequently Asked Questions (FAQ)
Q: What is a fixed cone roof tank?
A: A fixed cone roof tank is an aboveground storage tank featuring a permanently attached conical roof welded directly to the vertical shell. It is designed to store low-volatility liquids while protecting contents from environmental elements.
Q: What products are typically stored in fixed cone roof tanks?
A: Fixed cone roof tanks are ideal for storing stable, low-volatility products, including diesel fuel, heating oil, heavy crude oil, lubricants, firefighting water, municipal wastewater, and various industrial chemicals.
Q: Why can't highly volatile liquids be stored in standard fixed cone roof tanks?
A: Volatile liquids like gasoline generate high vapor pressures. Storing them in a standard fixed cone roof tank creates hazardous vapor accumulation in the headspace, leading to high evaporative losses and explosion risks unless an internal floating roof is installed.
Q: What is a "fragile joint" on a cone roof tank?
A: Under API 650 standards, the roof-to-shell connection on atmospheric cone roof tanks is designed as a weak or fragile joint. If an internal over-pressurization explosion occurs, this seam fails first, protecting the main tank shell and foundation from catastrophic failure.
