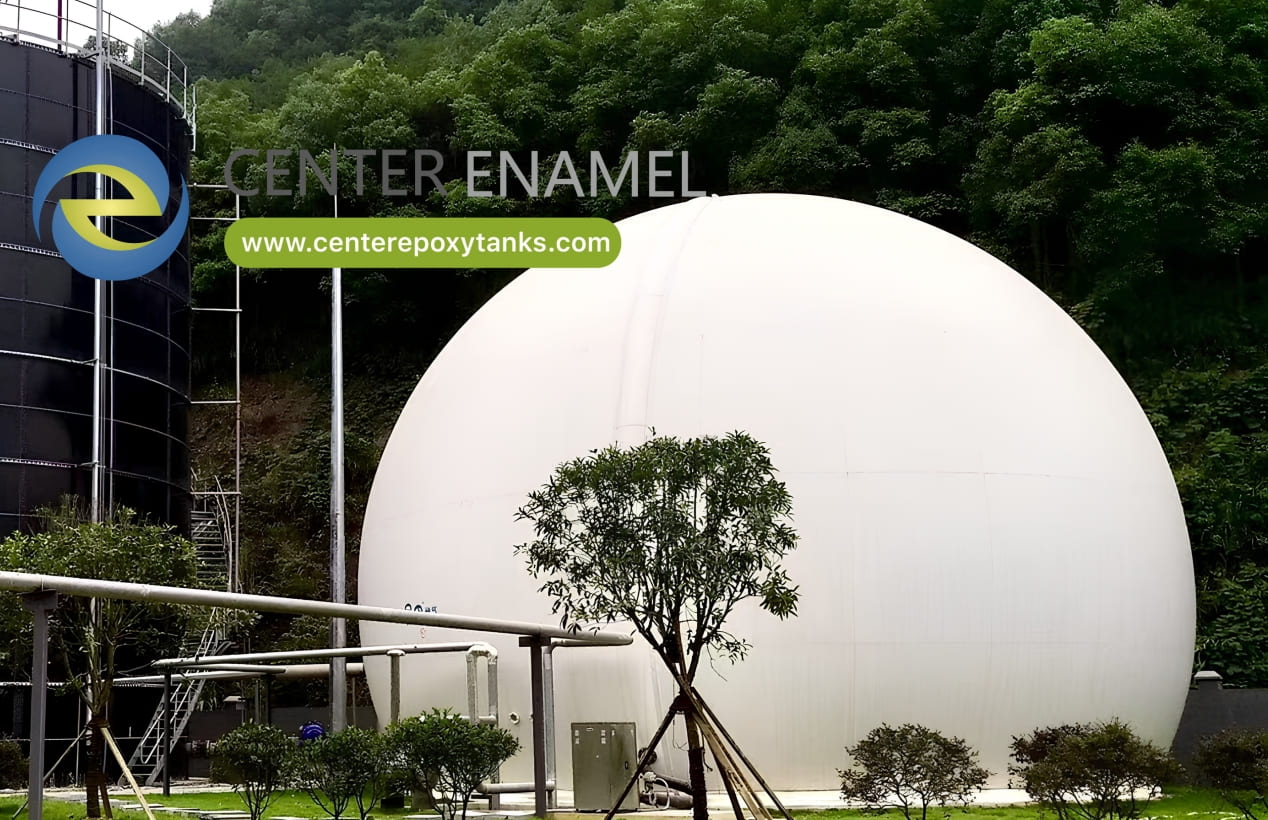

Double-membrane biogas holders are high-integrity, constant-pressure storage systems engineered for anaerobic digestion (AD) facilities. Utilizing high-tenacity polyester fabrics with specialized PVC/PVDF coatings, these holders provide a dual-barrier system: an outer membrane for structural weather protection and an inner membrane for gas-tight containment. Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) manufactures these systems to withstand corrosive H2S and CH4 environments, ensuring stable pressure regulation for gas engines and boilers. With a 30-year engineering heritage, Center Enamel supports global decarbonization across the agricultural, municipal, and industrial sectors.
This matrix establishes the mechanical benchmarks for Center Enamel’s biogas holder technology.
Feature | Technical Specification (2026 Standard) | Strategic Utility Value |
Structure Type | Double-Membrane (Independent Air/Gas Zones) | Maintains constant pressure regardless of gas volume. |
Material Base | High-Tenacity Polyester Fabric (Type II - V) | High tensile strength; resists mechanical tearing. |
Coating System | PVC with PVDF Lacquer / Anti-Fungal | UV resistance and low methane permeability ($< 400 cm^3/m^2 cdot d cdot bar$). |
Operating Pressure | 0 mbar to 50 mbar (Customizable) | Optimized for CHPs and dual-fuel generators. |
Design Standards | Eurocode 1 / DIN 4112 / ASCE 7-22 | Engineered for localized wind, snow, and seismic loads. |
Chemical Resistance | High Resistance to H2Sand CH4 | Prevents material degradation in "sour" biogas environments. |
Traditional storage often suffers from fluctuating pressure as gas is consumed. Center Enamel’s double-membrane design solves this through:
● The Air Cushion Principle: An air blower maintains a constant pressure in the space between the inner and outer membranes. This air pressure acts upon the inner gas membrane, ensuring that as biogas volume decreases, the discharge pressure remains stable for the Combined Heat and Power (CHP) unit.
● Shape Stability and Weather Resilience: The outer membrane is kept permanently inflated, creating a rigid aerodynamic shape. This prevents "flapping" in high winds and allows for efficient snow shedding, protecting the inner gas-holding "balloon" from environmental stress.
● Methane Permeability Control: We utilize membranes with advanced PVDF top-coats. This molecular barrier significantly reduces methane slip, ensuring that your facility meets stringent environmental emission standards while maximizing fuel recovery.
● Agricultural Biogas (AD): Storing methane generated from livestock manure and crop residues. Our holders are a key component in turning farm waste into on-site electricity and heat.

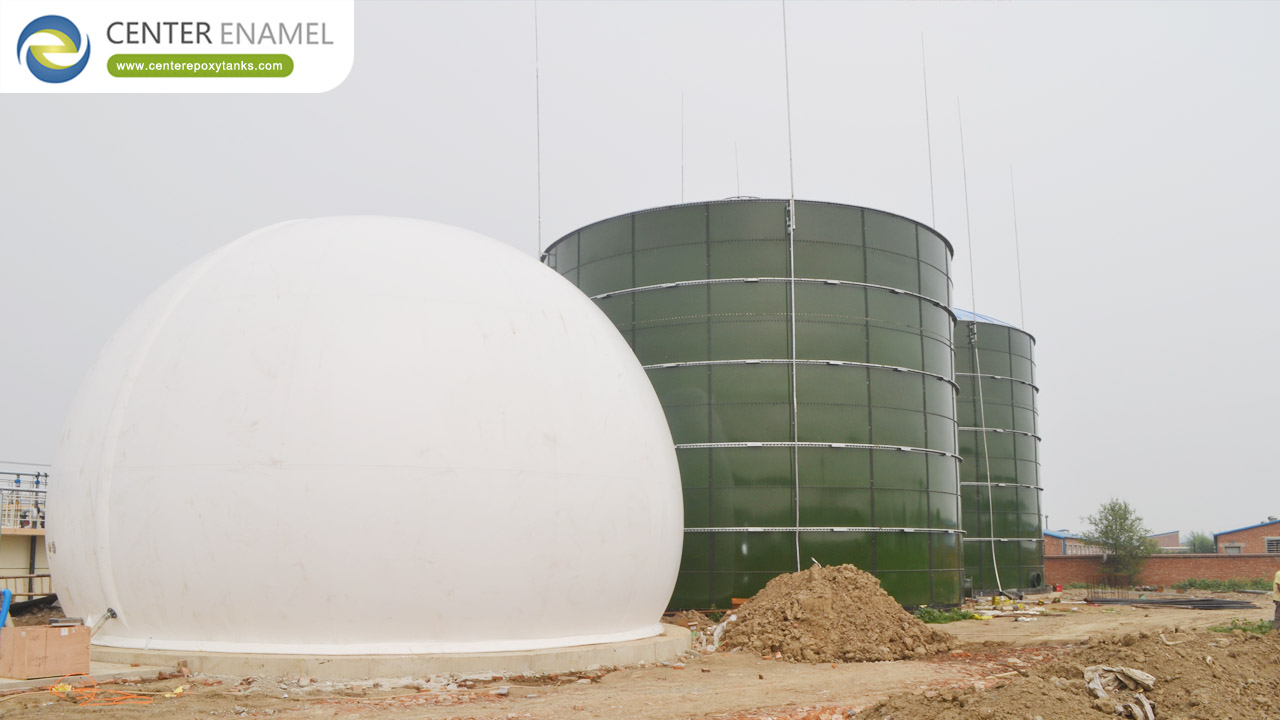

● Wastewater Treatment (WWTP): Capturing sewage gas from anaerobic digesters. Center Enamel’s gas holders are frequently integrated with our Glass-Fused-to-Steel (GFS) digester tanks for a turnkey solution.
● Food & Beverage Waste: Managing high-COD (Chemical Oxygen Demand) organic waste from breweries and food processing plants, converting disposal costs into energy savings.
● Municipal Solid Waste (MSW): Facilitating large-scale landfill gas or organic fraction (OFMSW) energy recovery projects.
As a global leader with over 30 years of R&D, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers a unique technological advantage:
● Integrated Tank & Holder Solutions: We are one of the few global manufacturers providing both the bolted storage tanks (GFS, FBE, Stainless Steel) and the integrated gas holder roofs, ensuring seamless mechanical fit-up and gas-tight integrity.
● Advanced FEA Modeling: We utilize Finite Element Analysis (FEA) to simulate membrane stress under extreme weather, ensuring that every biogas holder is "Future-Ready" for its specific geographical location.
● Global Compliance & Track Record: Having exported to 100+ countries, our systems are certified to meet local safety codes, including fire resistance ratings and explosion-proof (ATEX) sensor requirements.
● Turnkey EPC Support: From initial volume calculations to on-site technical supervision and commissioning, we provide a single point of accountability for your biogas storage infrastructure.
Q: How do you prevent gas leaks at the tank-to-holder interface?
A: We utilize a specialized stainless steel clamping system with high-durability EPDM gaskets. This creates a high-compression mechanical seal that is both gas-tight and resistant to the corrosive condensate common in biogas plants.
Q: What safety systems are integrated into the holder?
A: Every Center Enamel biogas holder includes over-pressure/under-pressure valves and ultrasonic level sensors. These provide real-time data to your SCADA system, preventing structural over-expansion or vacuum collapse.
Q: What is the expected lifespan of the membrane?
A: With our high-grade PVDF-coated fabrics, the expected service life is 15 to 20 years, depending on UV exposure and $H_2S$ concentrations. The modular design allows for membrane replacement without replacing the supporting tank structure.
