Double Membrane Roofs for Livestock Manure Anaerobic Digestion Tanks
Intensive livestock farming operations—including dairy, swine, and beef feedlots—generate massive quantities of animal slurry and manure. Left unmanaged in open-air lagoons, this organic waste releases substantial amounts of methane (CH4) and nitrous oxide (N2O) into the atmosphere while creating severe localized odor pollution.
To comply with stringent environmental regulations and transition toward circular energy economies, agricultural producers are increasingly adopting anaerobic digestion (AD) systems. By breaking down livestock manure in an oxygen-free environment, AD converts waste into valuable biofertilizer and high-energy biogas. At the apex of these biological digestion tanks, double membrane roofs serve as the definitive technology for capturing, storing, and regulating agricultural biogas safely and efficiently.
The Core Architecture and Working Principle

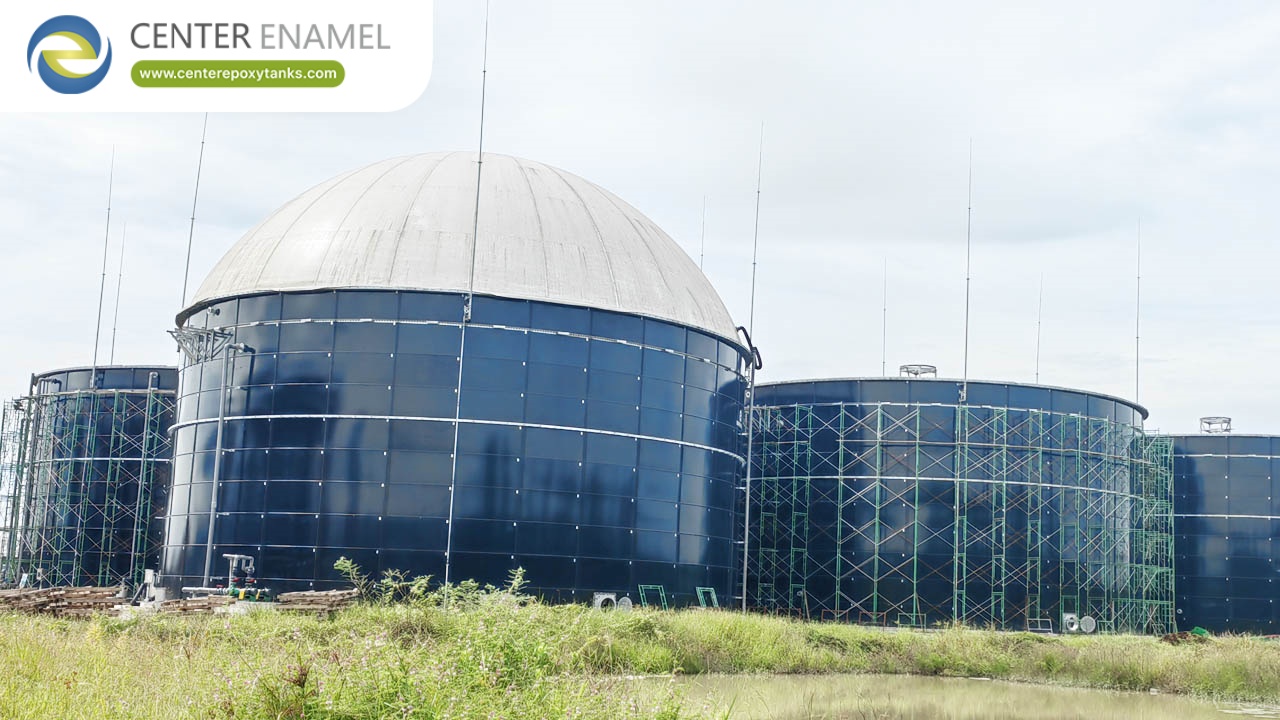

A double-membrane gasholder roof is engineered as an integrated dual-layer structure mounted directly onto the perimeter of an anaerobic digestion tank (such as concrete or glass-fused-to-steel silos):
The Inner Membrane (Gas Containment): Fabricated from high-tenacity, chemically inert polymer fabrics, the inner bladder expands and contracts dynamically inside the tank headspace, acting as a 100% gas-tight primary barrier for the generated biogas.
The Outer Membrane (Weather Protection & Aerodynamics): Continuously inflated by an automated low-pressure blower system, the outer layer forms a taut, aerodynamic dome that shields the tank against rain, wind, and snow loads while applying a steady, uniform positive pressure onto the inner gas bladder.
The Inter-Membrane Air Space: The pressurized air chamber between the two layers maintains structural rigidity and provides consistent, reliable gas delivery pressure downstream to farm boilers or combined heat and power (CHP) engines.
Technical Performance Matrix: Biogas Containment Technologies
Technical Parameter | Double Membrane Biogas Roofs | Traditional Open-Air Manure Lagoons | Fixed Concrete Slab Covers | Fixed Carbon Steel Tank Roofs |
Methane & Biogas Capture | 100% hermetic capture; active dual-purpose gas storage and tank roofing | Zero capture; massive atmospheric greenhouse gas emissions | Partial gas containment, but requires a separate, costly external gasholder tank | Requires external gas storage or lacks gas collection infrastructure |
Corrosion Resistance (H2S) | Superior; high-tenacity PVC/PVDF coated fabrics resist moisture and hydrogen sulfide | N/A | Moderate; vulnerable to concrete carbonation and acid gas attack over time | Low; highly vulnerable to internal vapor-space pitting and wall thinning |
Volumetric Flexibility | Dynamic variable-volume adjustment matching live farm waste loading cycles | Zero flexibility | Static volume capacity with fixed headspace | Rigid configuration with limited pressure buffering capacity |
Odor & Environmental Control | Complete elimination of farm odor complaints and fugitive gas emissions | Severe odor pollution and regional air quality degradation | Good odor containment, but lacks integrated gas management | Good odor control if fully gasketed |
Key Agricultural and Economic Advantages
1. Renewable Energy Self-Sufficiency
Capturing methane from livestock manure allows farms to generate their own electricity and thermal energy via CHP systems. Electrical power can run farm operations or feed back into the grid, while waste heat is redirected to maintain optimal mesophilic temperatures (~38°C to 42°C) inside the digester.
2. Radical Reduction of Greenhouse Gas Emissions
Methane possesses a Global Warming Potential (GWP) significantly higher than carbon dioxide over a 20-year horizon. Sealing livestock manure tanks with airtight double-membrane roofs prevents fugitive emissions, helping agricultural enterprises qualify for carbon offset credits and strict environmental compliance.
Frequently Asked Questions (FAQ)
Q: Why are double membrane roofs essential for livestock manure anaerobic digesters?
A: They provide a dual-purpose solution—acting as both a weather-resistant protective cover and an active, variable-volume gasholder that safely stores agricultural biogas and delivers stable delivery pressure to farm generators.
Q: How do double-membrane roofs handle corrosive gases like hydrogen sulfide (H2S)?
A: The inner membrane is manufactured from specialized, chemically inert PVC/PVDF-coated polyester fabrics that resist degradation from moisture and corrosive trace gases commonly found in livestock manure digestion.
Q: Can double-membrane roofs be retrofitted onto existing farm storage tanks?
A: Yes. They are modularly designed and can be custom-fitted onto existing concrete, bolted steel, or glass-fused-to-steel agricultural tanks, making them an ideal upgrade path for farms expanding their waste-to-energy infrastructure.
Q: How do these roofs maintain structural stability during heavy winter snowstorms?
A: An automated low-pressure blower system maintains constant positive pressure in the outer membrane, forming an aerodynamic dome shape that promotes natural snow sliding and prevents structural sagging.
