In modern livestock operations, the management of manure is no longer just a waste challenge—it is a renewable energy opportunity. Double Membrane Roofs have emerged as the global standard for Anaerobic Digestion (AD) and odor mitigation.
As a premier manufacturer with 30+ years of experience, Center Enamel provides integrated cover solutions that transform traditional animal waste tanks into high-efficiency biogas assets.
Engineering the "backbone" of a biogas system requires materials that exceed standard industrial grades. Our specialized PVC-coated polyester fabrics are designed specifically for high-ammonia livestock environments.
Feature | Standard Industrial Membrane | Center Enamel Animal Waste Series | Engineering Benefit |
Base Fabric | 900 - 1000 dtex Polyester | 1100 - 1500 dtex High-Tenacity | Superior tensile strength & tear resistance. |
Total Weight | 650 - 850 g/m2 | 950 - 1350 g/m2 | Enhanced durability against mechanical wear. |
Top Coating | Standard Acrylic Lacquer | Advanced PVDF Lacquer | Maximum UV protection & $H_2S$ resistance. |
Temp. Range | -20°C to +60°C | -30°C to +70°C | Prevents cold-cracking in extreme winters. |
Flame Retardancy | Not Rated / Basic | DIN 4102 B1 / EN 13501-1 | Essential safety for biogas fire prevention. |
$CH_4$ Permeability | < 800 cm3/m2.d | < 400 cm3/m2 .d | 99%+ Methane capture efficiency. |
Ammonia Resistance | Moderate Risk | High (Ammonia-Inert PVC) | 15+ year lifespan in poultry/swine sites. |
Livestock waste (Swine, Dairy, Poultry) creates a significantly more aggressive environment than standard industrial waste due to the high nitrogen and sulfur content.
● The Problem: Ammonia causes standard plasticizers to migrate, leading to fabric hardening and cracks. $H_2S$ oxidizes into sulfuric acid, which eats through basic seals.
● The Solution: Our inner membrane features a specialized ammonia-resistant PVC coating. The outer membrane is finished with a PVDF (Polyvinylidene Fluoride) lacquer, creating a non-stick, chemically inert shield that inhibits sulfur crystal buildup and biofilm.
Environmental compliance is critical for farm permits. Our double membrane roofs provide 100% odor mitigation by creating a fully enclosed, pressurized system. This prevents the escape of noxious gases, protecting neighboring communities and the social license of the farm.
Our roofs act as a functional component of the chemical reactor, not just a lid:
● Methane Capture: High-frequency (HF) welding ensures gas-tight seams, directing maximum CH4 volume to CHP units or biomethane skids.
● Modular Integration: Custom-engineered stainless steel mounting flanges (AISI 304/316) allow for retrofitting onto existing concrete or Glass-Fused-to-Steel (GFS) tanks.
● Climate Resilience: Using Finite Element Analysis (FEA), our roofs are engineered to withstand wind speeds up to 150 km/h and snow loads up to 1.5 kN/m2.

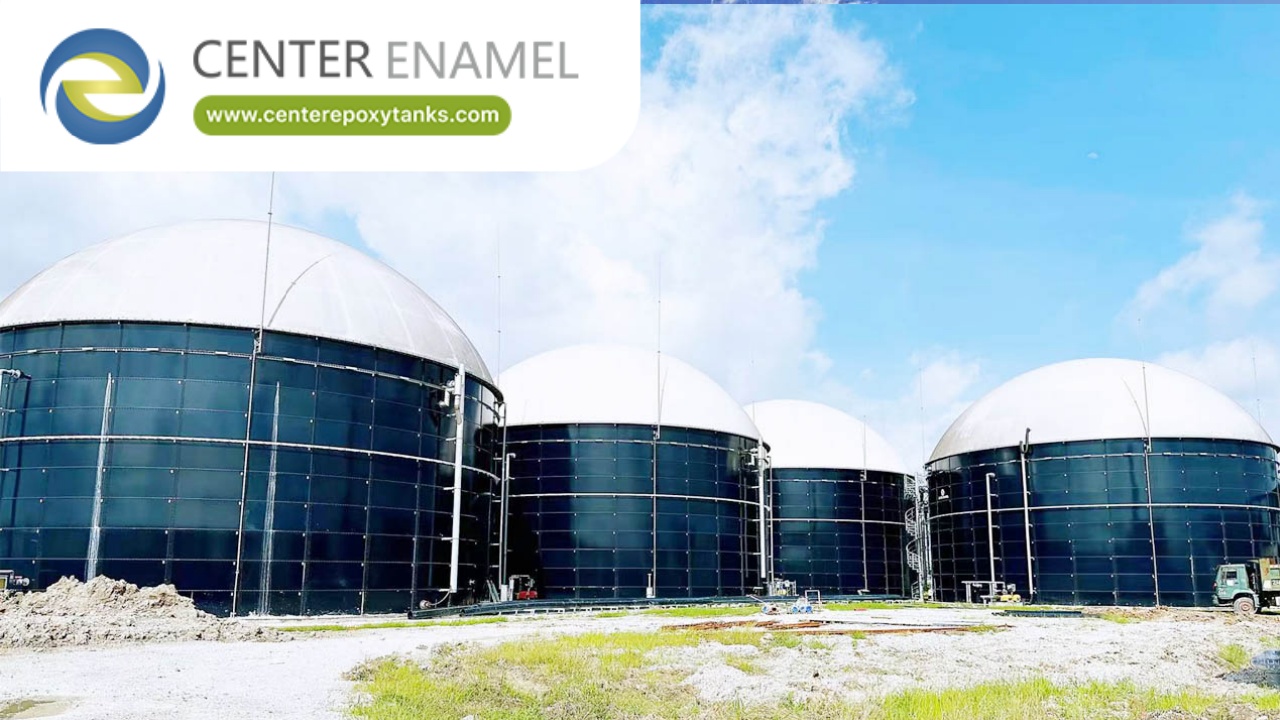

Center Enamel successfully delivered custom double membrane roofs for a Beijing Poultry Waste Anaerobic Digestion Project.
● Challenge: Handling high-ammonia biogas in a region with extreme temperature fluctuations.
● Result: The facility achieved 100% gas-tightness and structural integrity since commissioning. The project drastically reduced local odor complaints while maximizing on-site electricity generation, proving the durability of our PVC/PVDF formulations in large-scale applications.
Structural failure in a biogas system is a critical safety risk. We manufacture to the world's most stringent codes:
● ISO 28765:2016: International standard for bolted steel tank and roof systems.
● DIN 4102 B1: Certified flame retardancy for agricultural biogas safety.
● AWWA D103-09 & Eurocode 3: Structural and seismic design compliance for mounting and flanges.
Q: How long does a double membrane roof last in high-ammonia environments?
A: With a specialized PVC/PVDF coating, our roofs have a design life of 15 to 20 years. The coating prevents the brittling common in standard membranes exposed to swine and poultry waste.
Q: Can these roofs be retrofitted?
A: Yes. We provide specialized stainless steel flanges that allow our roofs to be installed on existing concrete or epoxy-coated animal waste pits.
Q: How is gas-tightness verified?
A: Every seam is high-frequency welded and tested to ensure methane permeability remains below the rigorous limit of 400 cm3/m2. d . bar.
With over 30 years of expertise and projects in 100+ countries, Shijiazhuang Zhengzhong Technology Co., Ltd is a global leader in integrated storage solutions. From Glass-Fused-to-Steel (GFS) tanks to advanced Double Membrane Roofs, we provide single-source engineering for the most challenging agricultural and industrial waste projects.
