Double Membrane Gas Holder for Dairy Processing Plants: Engineering Sustainable Energy and Wastewater Management
Dairy processing facilities—including plants producing milk, cheese, yogurt, and whey derivatives—are intensive water-using industries. Their high-strength wastewater is heavily laden with organic compounds, dissolved lactose, fats, proteins, and cleaning sanitizers. Discharging this effluent requires robust pre-treatment, making anaerobic digestion a premier technology for reducing chemical oxygen demand (BOD/COD) while generating clean biogas (methane and carbon dioxide).
To capture, buffer, and safely regulate this renewable energy source, modern dairy operations rely on a double membrane gas holder. Engineered as high-performance flexible storage systems, these vessels balance intermittent energy demand with continuous biological gas production, supplying stable fuel for plant boilers, combined heat and power (CHP) engines, or wastewater thermal systems.
Core Engineering Principles and Dairy Plant Integration
Designing biogas storage infrastructure for dairy processing wastewater treatment requires addressing specific chemical and hydraulic demands:
Multi-Membrane Structural Design: Modern dairy facilities predominantly use double-membrane gas holders. These structures consist of an inner membrane (which directly stores the biogas), an outer protective membrane (shielding the system against wind, rain, and UV radiation), and an active air blower system that maintains constant inter-membrane pressure for structural stability and continuous working pressure.
Corrosion Defense Against Dairy Biogas: Biogas generated from high-protein and organic dairy waste carries significant moisture and trace concentrations of hydrogen sulfide (H2S). Double-membrane gas holders utilize specialized, high-tenacity polyester fabrics coated with anti-fungal and PVC/PVDF formulations that completely resist sulfide oxidation and microbial degradation.
Volume Buffering for Variable Production: Dairy processing operations often follow specific cleaning and shift cycles, causing wastewater flow rates and organic loading to fluctuate. Biogas holders act as crucial volumetric buffers, absorbing peak gas production surges and maintaining steady delivery pressure to downstream energy conversion equipment.
Data Table: Comprehensive Comparison of Biogas Holder Technologies for Dairies

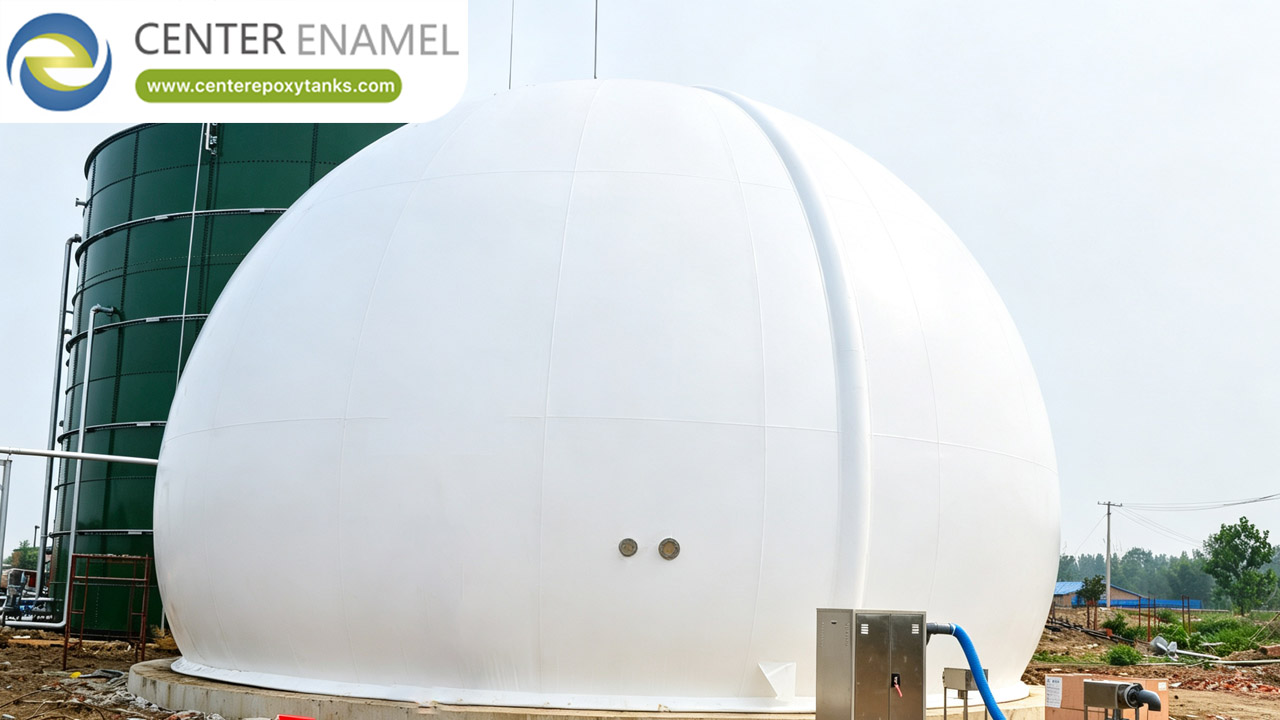

Technical Parameter | Ground-Mounted Double-Membrane Holders | Tank-Top Mounted Biogas Holders | Traditional Steel Pressure Holders |
Spatial Footprint | Independent ground-mounted footprint requiring a dedicated concrete foundation | Maximizes plant space by mounting directly atop the anaerobic digester | Large cylindrical or spherical footprint requiring heavy civil foundations |
Pressure Control | Consistent low-pressure operation regulated by active air-pressure balancing | Integrated directly with digester headspace pressure | High-pressure containment requiring specialized compressor systems |
Corrosion Defense | High-grade PVC/PVDF membranes completely immune to sulfide oxidation | Membrane inner layer protected against wet digester headspace gases | Carbon steel shell vulnerable to H2S condensation without intensive epoxy lining |
Primary Dairy Application | Flexible mid-to-large-scale volume buffering and seasonal energy storage | Compact dairy wastewater plants with limited available real estate | High-pressure gas grid injection and heavy industrial gas storage |
Frequently Asked Questions (FAQ)
Q: Why do dairy processing plants utilize double-membrane gas holders?
A: They capture and store the biogas produced during the anaerobic digestion of organic dairy wastewater, providing a reliable, buffered fuel source for plant boilers, thermal systems, or CHP engines to reduce facility energy costs.
Q: How do double-membrane gas holders withstand corrosive gases from dairy wastewater?
A: The storage membranes are manufactured from high-tenacity polyester fabrics coated with specialized PVC/PVDF polymers that are completely inert to moisture and trace hydrogen sulfide (H2S) generated by digesting dairy effluent.

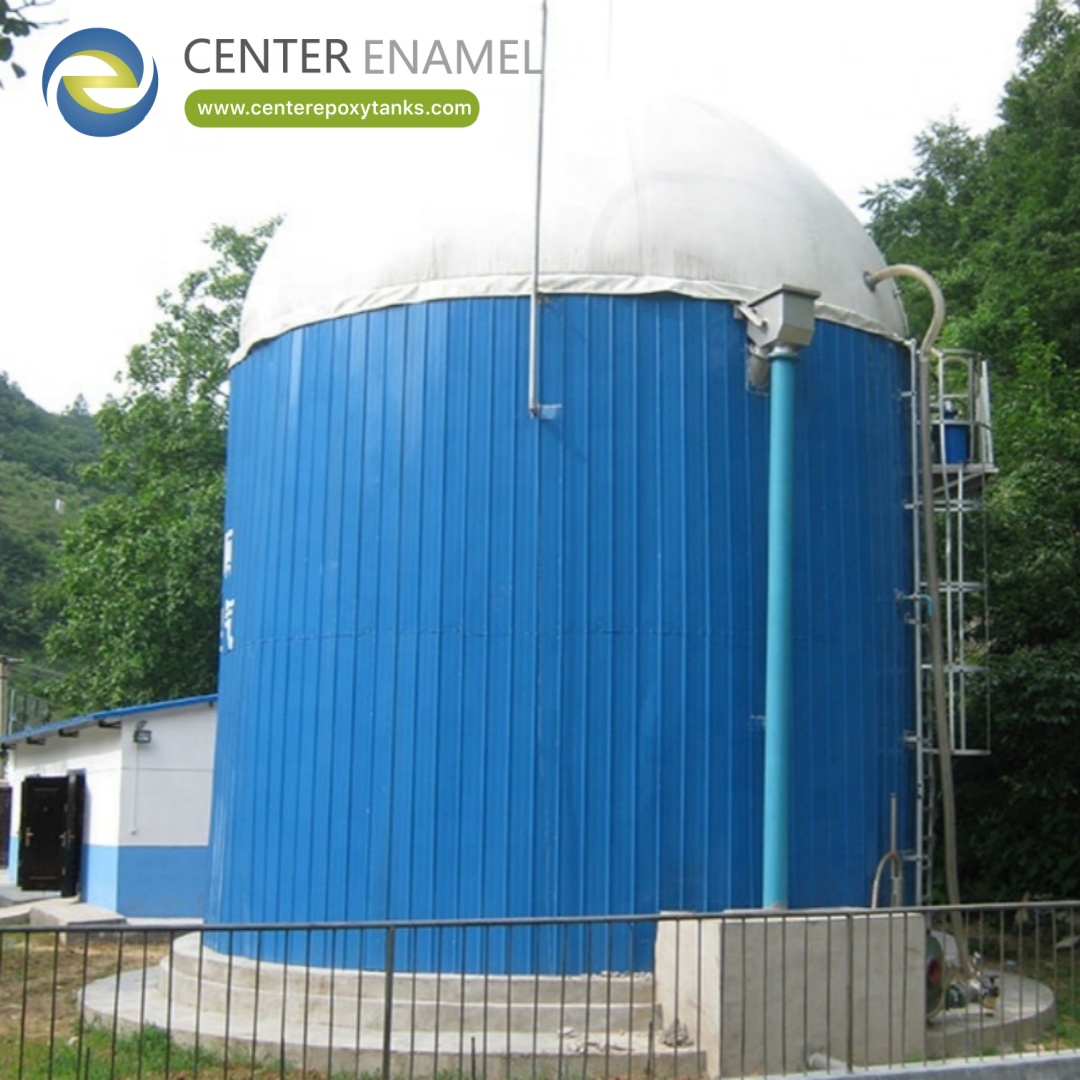

Q: Can a biogas holder be mounted directly on top of a dairy anaerobic digester?
A: Yes. Tank-top mounted biogas holders save valuable physical space at processing plants by integrating the flexible gas storage membrane directly onto the upper shell of the concrete or bolted steel anaerobic digester.
Q: How do these systems ensure safety against over-pressurization or explosive mixtures?
A: Modern biogas holders comply with strict safety certifications (such as ATEX and IECEx), featuring dual-sealed membrane barriers, automated pressure relief valves, flame arresters, and continuous gas monitoring systems.
