Double Membrane Biogas Holder for Renewable Biogas Production Project: Engineering Efficient Energy Storage and Sustainable Integration
As global momentum shifts toward carbon neutrality and decentralized clean energy generation, commercial and municipal anaerobic digestion (AD) facilities are expanding rapidly. Whether processing agricultural livestock manure, food processing wastewater, municipal organic waste, or industrial biomass, renewable biogas production projects provide a vital pathway for capturing methane (CH4) and converting it into green electricity, thermal energy, or upgraded biomethane.
However, biological gas generation in an anaerobic digester is inherently dynamic, shifting continuously in response to feedstock variability, bacterial activity, and thermal fluctuations. To bridge the gap between irregular biological production and steady downstream energy consumption, modern renewable energy facilities rely on the double membrane biogas holder. Acting as the central pneumatic lung of the biogas plant, this advanced containment system ensures safe pressure regulation, maximum volumetric buffering, and high-purity gas storage.
Core Engineering Principles and System Architecture

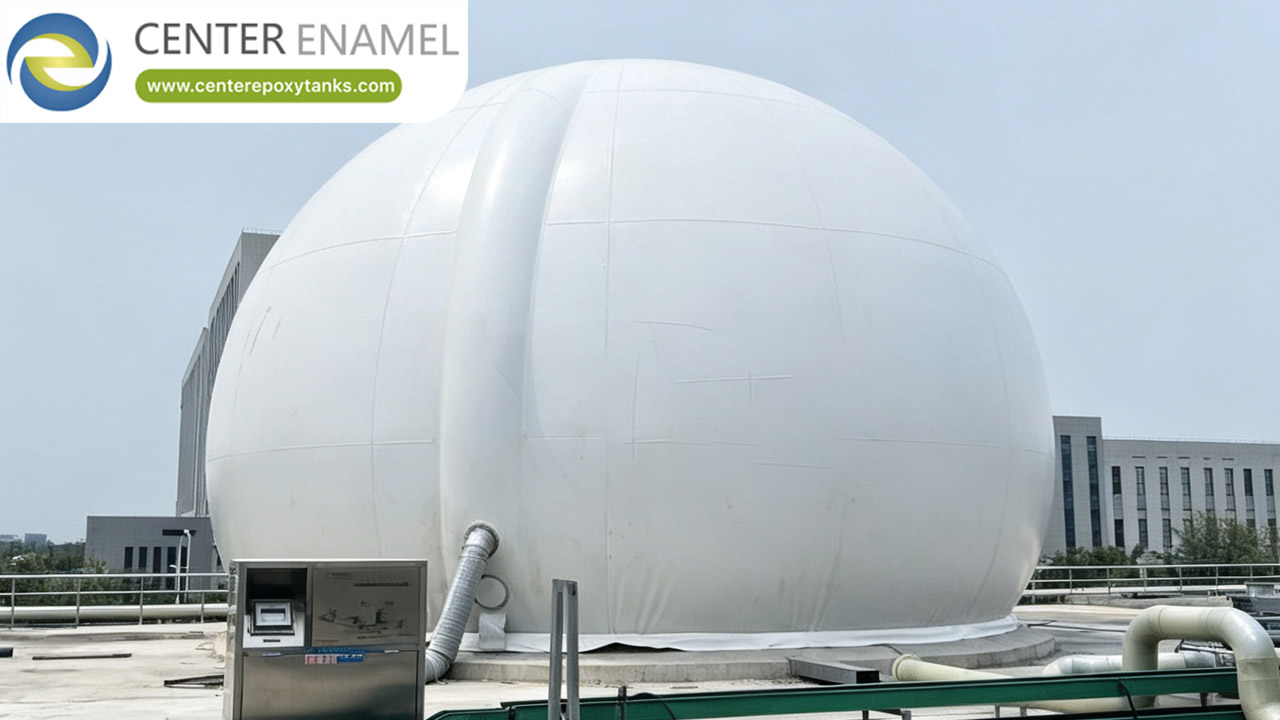

The double membrane gas holder (DMGH) is engineered from high-strength, specialized architectural fabrics designed to withstand rigorous outdoor environments and aggressive gas compositions. Structurally, the system comprises three primary membrane layers:
Bottom Membrane (Base): Serves as the lower boundary, anchoring the entire gas holder assembly securely to a concrete foundation slab or directly onto the top rim of a bolted steel anaerobic digester tank.
Inner Membrane: Directly confines the stored biogas. As biological gas production surges or drops, the inner membrane expands and contracts dynamically within the protective outer shell.
Outer Membrane: Maintained under constant pneumatic pressure by a dedicated, spark-resistant support air blower system, the outer dome provides continuous structural shape, weather protection against wind and snow loads, and steady downforce on the inner gas chamber.
This multi-layer architecture guarantees that the working pressure inside the inner gas volume remains completely stable, regardless of whether gas is flowing in from the digester or being drawn out by downstream combined heat and power (CHP) generators, boilers, or biogas upgrading units.
Technical Performance Matrix: Biogas Storage Technologies
Technical Parameter | Double Membrane Gas Holder (DMGH) | Fixed-Roof Steel Gas Tank | Wet-Seal Telescopic Gasholder |
Volumetric Buffer Flexibility | High; dynamic inner membrane expands and contracts freely based on immediate gas output | Rigid volume limit; highly vulnerable to dangerous over-pressurization during production spikes | Moderate capacity; bulkier structural footprint with limited expansion headroom |
Pressure Stability | Constant, regulated operating pressure managed automatically via air-side control blowers | Pressure fluctuates wildly depending on fill levels and structural gas displacement | Relies on water-seal counterweights; prone to water freezing, evaporation, and maintenance issues |
Chemical & H2S Defense | Superior; specialized PVC-polyester fabrics resist moisture, UV radiation, and H2S up to 8000 ppm | Vulnerable to internal acid condensation and sulfuric pitting without expensive stainless steel linings | High maintenance overhead required to prevent chronic corrosion of steel lift guides and water seals |
Installation Velocity & Cost | Rapid modular assembly completed in days to weeks with minimal heavy civil investment | Slow, capital-intensive field construction requiring extensive welding, rigging, and painting | Complex mechanical assembly with high ongoing operational and inspection overhead |
Frequently Asked Questions (FAQ)
Q: Why is a double membrane biogas holder critical for a renewable biogas production project?
A: Biological biogas generation fluctuates based on feeding cycles and organic loading rates. A double membrane gas holder acts as a large-volume buffer that absorbs these production peaks and valleys, guaranteeing a steady, uninterrupted fuel supply for downstream generators, boilers, or biomethane upgrading systems.
Q: How does the double membrane system maintain a constant gas delivery pressure?
A: An automated, spark-resistant air blower continuously maintains a controlled air pressure in the space between the outer and inner membranes. This outer air pressure exerts a uniform, steady downward force on the inner gas storage membrane, ensuring consistent delivery pressure to your facility's equipment regardless of how much gas is currently stored.
Q: Can these biogas holders withstand corrosive gases like hydrogen sulfide (H2S)?
A: Yes. Modern double membrane gas holders are manufactured using multi-layered, PVC-coated polyester fabrics treated specifically to resist chemical permeation, ultraviolet radiation, and high concentrations of hydrogen sulfide (tested up to 8000 ppm) typical of anaerobic digestion.
Q: Can a double membrane gas holder be retrofitted onto an existing anaerobic digester tank?
A: Yes. Because they are lightweight and modular, double membrane gas holders can be custom-engineered to mount directly onto the top rim of existing bolted steel or concrete anaerobic digester tanks, as well as installed on independent concrete slab foundations.
