Data Center Buffer Expansion and TES Vessels: Managing Volume Change

Buffer expansion and TES vessels in a data center manage the volume change of pressurized water and the stored cooling reserve without letting air into the loop.

data center buffer expansion and TES vessels is a code-compliant pressure vessel that stores chilled water or thermal energy inside a sealed, positive-pressure envelope, eliminating air contact and the corrosion, cavitation, and biofilm risk that come with open atmospheric tanks. It is built and stamped to ASME Section VIII and sized from the loop's pressure, volume, and thermal-storage duty.

Technical Explanation

Pressurized storage keeps the entire chilled loop above the saturation pressure of the water at its lowest temperature, so no vapor pocket or air gap forms. That protects pumps from cavitation and keeps the lining dry on the air side.

An ASME TES vessel adds a code stamp and documented design margin, which many owners require for pressurized thermal storage on a critical site.

Application Scenarios

Sealed chilled-water plants, high-rise and district loops, and sites with strict water-quality or contamination rules favor pressurized vessels over open tanks.

Where the loop already runs pressurized, a pressurized TES vessel integrates without a break-tank or air separator.

Selection and Comparison

Compare open bolted TES (lower cost, needs air management) against pressurized ASME vessels (higher cost, cleaner loop). The decision is driven by loop design and owner standards, not by cooling duty alone.

Confirm pressure rating, nozzle layout, and insulation with the vessel supplier; these define installed performance.

Open vs Pressurized TES

Technical Specifications

Center Enamel's verified project record does not include a published data-center cooling-water or thermal-energy-storage tank installation. The technical guidance in this article is supported by the company's certified bolted-tank and ASME-vessel manufacturing system and its deliveries across 100+ countries; no specific project is cited as a case here.

Center Enamel Capability

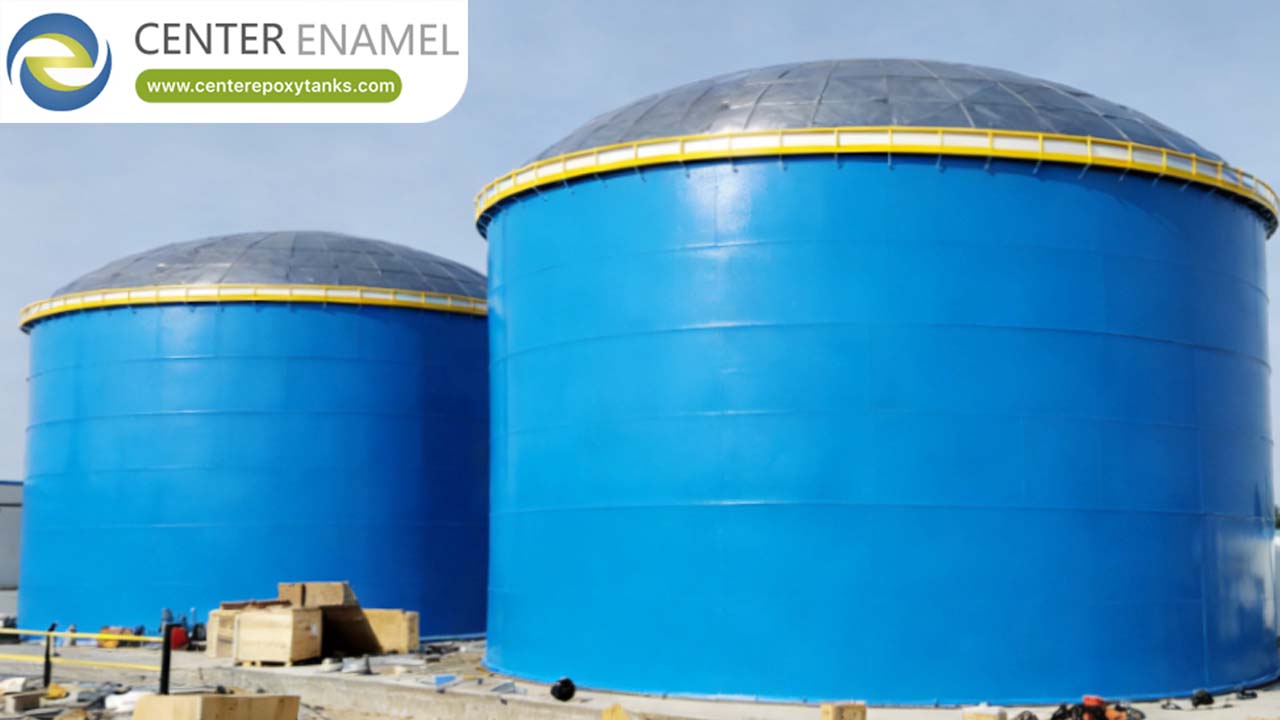

Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) has manufactured bolted storage tanks since 2008, with product lines spanning Glass-Fused-to-Steel (GFS), fusion-bonded epoxy (FBE) coated, stainless steel, and hot-dip galvanized bolted tanks, plus aluminum geodesic dome roofs. For the Glass-Fused-to-Steel (GFS) bolted tank technology discussed here, the company's verified manufacturing system — certified to ISO 9001 with NSF/ANSI 61, WRAS, FM and EN 1090 alignments — supports the fabrication, coating, and QA discipline a demanding water-storage or thermal-energy-storage duty requires.

The engineering and quality system follows AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and EN 1090, and the product range is certified to ISO 9001, NSF 61, EN 1090, ISO 28765, WRAS, FM, LFGB, BSCI, ISO 45001 and related standards. With approximately 200 enameling patents and export to more than 100 countries, Center Enamel supports specification, fabrication, and site erection for water-storage and thermal-energy-storage projects worldwide.

Frequently Asked Questions

Q: How large can a single bolted GFS tank be?

A: Center Enamel has fabricated single GFS tanks up to 32,000 m3 and 34.8 m in height, demonstrating the modular-panel capability needed for large cooling-water or TES volumes on a data-center site.

Q: Why add a buffer tank to a chilled-water plant?

A: A buffer tank prevents short-cycling of chillers, decouples chiller and load flow, and absorbs expansion, improving part-load efficiency and protecting compressors during transient demand.

Q: What does off-peak TES charging save?

A: Charging a chilled-water TES tank at night shifts compressor load to cheaper, lower-carbon electricity and reduces on-peak demand charges, while providing headroom during peak IT load.

Q: What is the difference between a buffer tank and a TES tank?

A: A buffer tank decouples flow and absorbs volume change at roughly the same temperature, while a TES (thermal energy storage) tank stores energy as a temperature difference — typically a stratified chilled-water column — for later cooling draw.

Q: How is a stratified chilled-water TES tank kept stable?

A: A low-velocity diffuser at the top and bottom maintains a sharp thermocline; the tank charges cold at the bottom and warm at the top, and the layering is preserved by limiting inlet velocity and avoiding mixing.

Q: Which material is most suitable for a data-center cooling water tank?

A: GFS and FBE bolted tanks are the common choice for large atmospheric duty because the factory-applied enamel or epoxy lining resists corrosion and is NSF-61 / WRAS approved; stainless is used where hygiene or pressure demands it.

Data Center Buffer Expansion and TES Vessels: Managing Volume Change comes down to matching the tank type, material, and code to the specific duty — makeup, buffer, TES, fire, or pressurized — and verifying the supplier's lining certification and references. With corrosion-resistant bolted construction and AWWA/ASME-aligned design, a data-center or industrial water-storage tank becomes a reliable, long-life node in the cooling strategy.

Discuss your tank duty, capacity, and code requirements with a Center Enamel engineer, or request technical specifications and a reference list for a comparable project.
