Chilled Water Thermal Storage Tank Supplier: Procurement Notes
A chilled-water thermal-storage tank supplier should supply diffuser and nozzle details with the tank, not as a separate mystery package.
chilled water thermal storage tank supplier should be chosen on demonstrated capability, not price alone. Verify code alignment (AWWA D103 for bolted atmospheric tanks, ASME Section VIII for pressurized vessels), lining certification (NSF-61 / WRAS for potable-adjacent duty), large-volume references, and documented QA. A qualified manufacturer will supply diffuser, nozzle, and coating documentation with the tank.
Technical Explanation
A tank is only as good as its lining, its joints, and its paperwork. For water-storage and TES duty the factory-applied enamel or epoxy lining must resist the stored water and any treatment chemistry, and the bolted joint system must hold pressure and prevent leakage.
Code alignment is non-negotiable: atmospheric bolted tanks follow AWWA D103 with ISO 28765 coating practice; pressurized vessels follow ASME Section VIII. The manufacturer's certifications should map to your jurisdiction.
What to Evaluate
Check references of comparable volume and lining, the supplier's coating certification (NSF-61 / WRAS), welding/bolting QA records, and its ability to deliver and erect on your schedule.
For TES specifically, ask for diffuser design competence and any stratified-storage references; the thermocline is where the value is created.
Selection and Comparison
Compare shortlisted suppliers on total delivered scope — tank, lining cert, diffusers/nozzles, insulation, erection, and documentation — not just the ex-works price.
Confirm lead time and the change-control process before award; a tank is a long-lead critical item on a data-center schedule.
Manufacturer Evaluation Checklist
Item | What to verify |
Code | AWWA D103 / ASME VIII alignment |
Lining | NSF-61 / WRAS certification |
Reference | Comparable volume + lining |
Delivery | Erection scope + lead time |
Technical Specifications
Parameter | Specification |
Tank / vessel type | Glass-Fused-to-Steel (GFS) bolted tank |
Primary design standard | AWWA D103-09 (bolted) / ASME Section VIII (pressurized) |
Coating / lining | GFS enamel or FBE epoxy, NSF-61 / WRAS approved for potable contact |
Typical diameter range | 4.6 m to 44 m (bolted modular panels) |
Typical height range | up to 34.8 m (verified single GFS tank) |
Operating temperature | 1 °C to 50 °C (chilled / ambient water service) |
Stratification control | Thermocline diffuser, vertical temperature layering |
Typical storage density | ~1–1.5 kWh of cooling per m3 (5–15 °C lift) |
Pressure class | Atmospheric (open/buffer) or pressurized (ASME, up to design code) |
Roof option | Aluminum dome / aluminum flat cover / internal floating |
Reference capacity | 20,380 m3 |
Certifications | ISO 9001, NSF 61, EN 1090, ISO 28765, WRAS, FM |
Center Enamel's verified project record does not include a published data-center cooling-water or thermal-energy-storage tank installation. The technical guidance in this article is supported by the company's certified bolted-tank and ASME-vessel manufacturing system and its deliveries across 100+ countries; no specific project is cited as a case here.
Center Enamel Capability

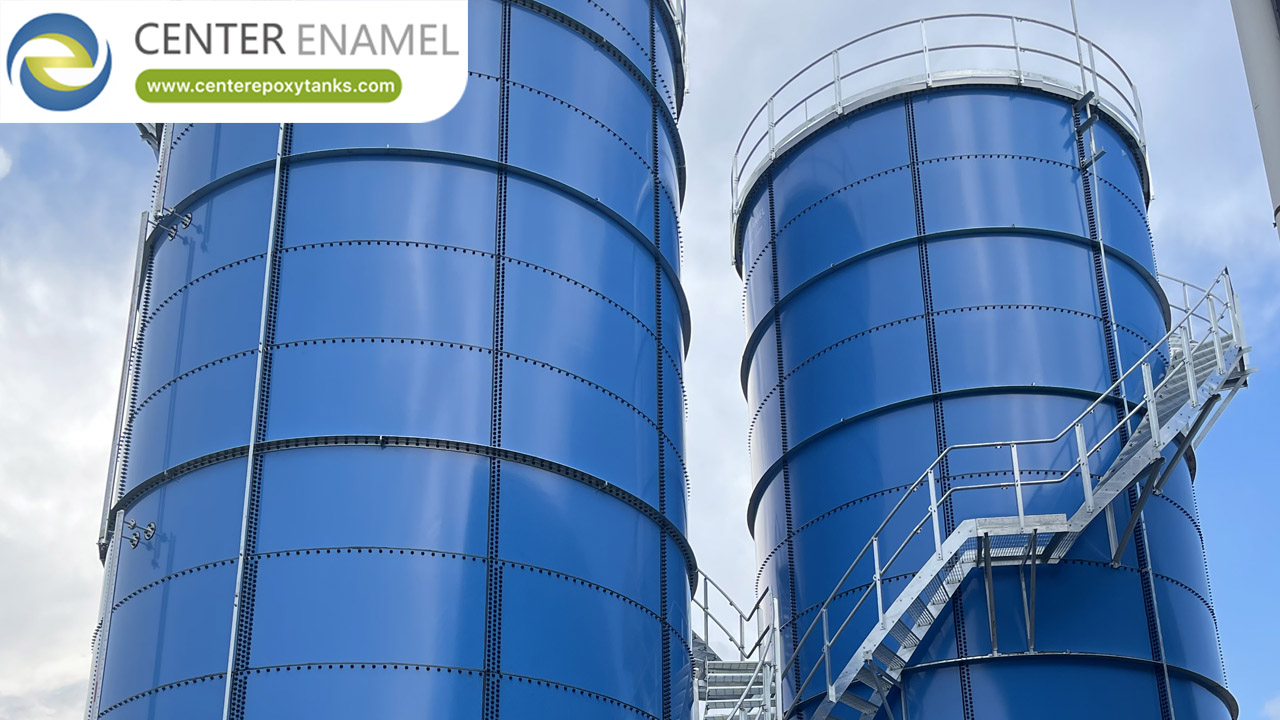

Center Enamel (Shijiazhuang Zhengzhong Technology Co., Ltd) has manufactured bolted storage tanks since 2008, with product lines spanning Glass-Fused-to-Steel (GFS), fusion-bonded epoxy (FBE) coated, stainless steel, and hot-dip galvanized bolted tanks, plus aluminum geodesic dome roofs. For the Glass-Fused-to-Steel (GFS) bolted tank technology discussed here, the company's verified manufacturing system — certified to ISO 9001 with NSF/ANSI 61, WRAS, FM and EN 1090 alignments — supports the fabrication, coating, and QA discipline a demanding water-storage or thermal-energy-storage duty requires.
The engineering and quality system follows AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and EN 1090, and the product range is certified to ISO 9001, NSF 61, EN 1090, ISO 28765, WRAS, FM, LFGB, BSCI, ISO 45001 and related standards. With approximately 200 enameling patents and export to more than 100 countries, Center Enamel supports specification, fabrication, and site erection for water-storage and thermal-energy-storage projects worldwide.
Frequently Asked Questions
Q: What does off-peak TES charging save?
A: Charging a chilled-water TES tank at night shifts compressor load to cheaper, lower-carbon electricity and reduces on-peak demand charges, while providing headroom during peak IT load.
Q: What is the difference between a buffer tank and a TES tank?
A: A buffer tank decouples flow and absorbs volume change at roughly the same temperature, while a TES (thermal energy storage) tank stores energy as a temperature difference — typically a stratified chilled-water column — for later cooling draw.
Q: How is a stratified chilled-water TES tank kept stable?
A: A low-velocity diffuser at the top and bottom maintains a sharp thermocline; the tank charges cold at the bottom and warm at the top, and the layering is preserved by limiting inlet velocity and avoiding mixing.
Q: Which material is most suitable for a data-center cooling water tank?
A: GFS and FBE bolted tanks are the common choice for large atmospheric duty because the factory-applied enamel or epoxy lining resists corrosion and is NSF-61 / WRAS approved; stainless is used where hygiene or pressure demands it.
Q: Does Center Enamel have a published data-center TES project?
A: Center Enamel's verified record does not include a published data-center or thermal-energy-storage tank installation. Its large bolted-tank and ASME vessel deliveries are cited as manufacturing-capability evidence for the duty, not as a data-center reference.
Q: What standards apply to a bolted water-storage tank?
A: Atmospheric bolted tanks are typically designed to AWWA D103-09 with coatings qualified to NSF/ANSI 61 and ISO 28765; pressurized vessels follow ASME Section VIII. Fire-water duty may add FM or local authority requirements.
Chilled Water Thermal Storage Tank Supplier: Procurement Notes comes down to matching the tank type, material, and code to the specific duty — makeup, buffer, TES, fire, or pressurized — and verifying the supplier's lining certification and references. With corrosion-resistant bolted construction and AWWA/ASME-aligned design, a data-center or industrial water-storage tank becomes a reliable, long-life node in the cooling strategy.
Discuss your tank duty, capacity, and code requirements with a Center Enamel engineer, or request technical specifications and a reference list for a comparable project.
