Center Enamel Supplies High-Efficiency External Floating Roof Tanks for Syria’s Downstream and Storage Sectors

As midstream energy logistics and industrial storage facilities across the Eastern Mediterranean region look to modernize their bulk storage capabilities—anchored by critical handling infrastructures, maritime terminal networks, and regional refining hubs—the demand for heavy-duty containment assets is rising. Storage tank farms operating in these coastal and inland industrial zones must perform reliably under strict operational conditions. Containment assets are required to maintain high process safety, satisfy modern environmental standards regarding volatile organic compound (VOC) emissions, and withstand harsh regional climate conditions, including high summer ambient heat, coastal maritime salinity, and intense UV exposure.

To protect high-value petroleum assets, preserve product volume, and eliminate hazardous vapor buildup under intense solar radiation, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) delivers world-class, custom-engineered External Floating Roof Tanks (EFRTs). Backed by over 30 years of advanced manufacturing experience and a legacy of successful global installations across more than 100 countries, Center Enamel delivers complete, code-compliant containment ecosystems in strict compliance with API Standard 650 Annex C.

1. The Engineering Logic of EFR Systems in High-Temperature Climates

Traditional fixed-roof storage tanks maintain a permanent air-gas headspace (ullage) above the stored liquid line. When storing volatile hydrocarbons—such as crude oil, gasoline, condensates, and light naphtha—under intense regional sun, the liquid surface rapidly flashes into gas. This leads to two major operational risks:

1. Aggressive Evaporative Product Loss: Continuous daily thermal cycles drive "breathing losses," venting valuable product yield straight into the atmosphere.

2. Explosive Internal Atmospheres: The accumulation of Volatile Organic Compounds (VOCs) creates highly combustible headspace zones.

Center Enamel’s External Floating Roofs directly solve these structural vulnerabilities. By engineering a buoyant, liquid-tight deck that rests directly on the fluid surface and tracks vertically with liquid level shifts, the vapor headspace is completely removed. This system suppresses up to 95% to 99% of VOC breathing losses, preserving inventory yield while eliminating the medium required to support high-intensity internal tank explosions.

2. Advanced Structural Configurations for Heavy Crude & Refined Storage

Under API 650 Annex C guidelines, Center Enamel utilizes advanced Finite Element Analysis (FEA) to pre-fabricate custom floating roof structures capable of handling high structural pressures and localized stresses:

A. Double-Deck Welded Steel EFRs

For large-diameter bulk terminal storage, Center Enamel specifies continuous, field-welded double-deck configurations.

● Thermodynamic Insulation: The top and bottom steel plates enclose a compartmentalized, dead-air space across the entire diameter. This space serves as a highly efficient thermal insulation barrier, preventing extreme summer heat from warming the underlying crude oil, while simultaneously mitigating center-deck vapor "ballooning" caused by intense solar exposure.

B. Single-Deck Pontoon EFRs

An economical yet structurally rigid alternative featuring a continuous thin center deck skin ringed by a segmented series of liquid-tight perimeter buoyancy chambers.

● Redundant Buoyancy Margins: In strict compliance with international standards, Center Enamel's designs guarantee the roof remains safely afloat even if the primary center deck skin and any two adjacent pontoon compartments suffer physical punctures or fluid breaches.

3. High-Performance Rim Seals and Weather Drainage Systems

The boundary where a dynamic floating deck meets a static vertical tank shell requires robust engineering to prevent vapor leakage and handle extreme weather events:

● The "Zero-Gap" Sealing Protocol: The perimeter gap is protected by premium mechanical shoe primary seals coupled with multi-layered fluoroelastomer (PTFE/Viton) secondary wiper seals. These systems maintain continuous contact along the interior wall, easily accommodating out-of-round shell irregularities to form an airtight barrier.

● High-Capacity Storm Drainage: To prevent sudden heavy downpours from overloading an open deck, Center Enamel integrates premium internal drainage networks using either articulated steel pipes with mechanical swivel joints or high-strength flexible hoses. These lines rapidly discharge water from the deck surface to the outside of the tank shell at rates up to 250mm/hour, preventing roof submergence.

● Low-Impedance Lightning Grounding: Atmospheric lightning strikes represent a primary fire hazard for open-top tanks. Center Enamel EFRs are equipped with multiple stainless steel grounding shunts and earthing cables (compliant with API 545 and NFPA 780). These provide a direct, low-impedance path to ground, safely dissipating static charges and eliminating electrical arcing near the rim seals.

4. Technical Specification & Performance Framework

5. Overcoming Environmental Challenges: The Aluminum Dome Shield

For operations located in high-humidity coastal corridors subject to intense maritime salinity, or inland areas subject to high ambient heat and sandstorms, deploying an exposed open-top tank brings major maintenance challenges. Windblown dust and debris can accumulate on the exposed deck, clogging center drainage screens and causing mechanical seal abrasion, while extreme sun forces rapid degradation of exposed secondary rubber seals.

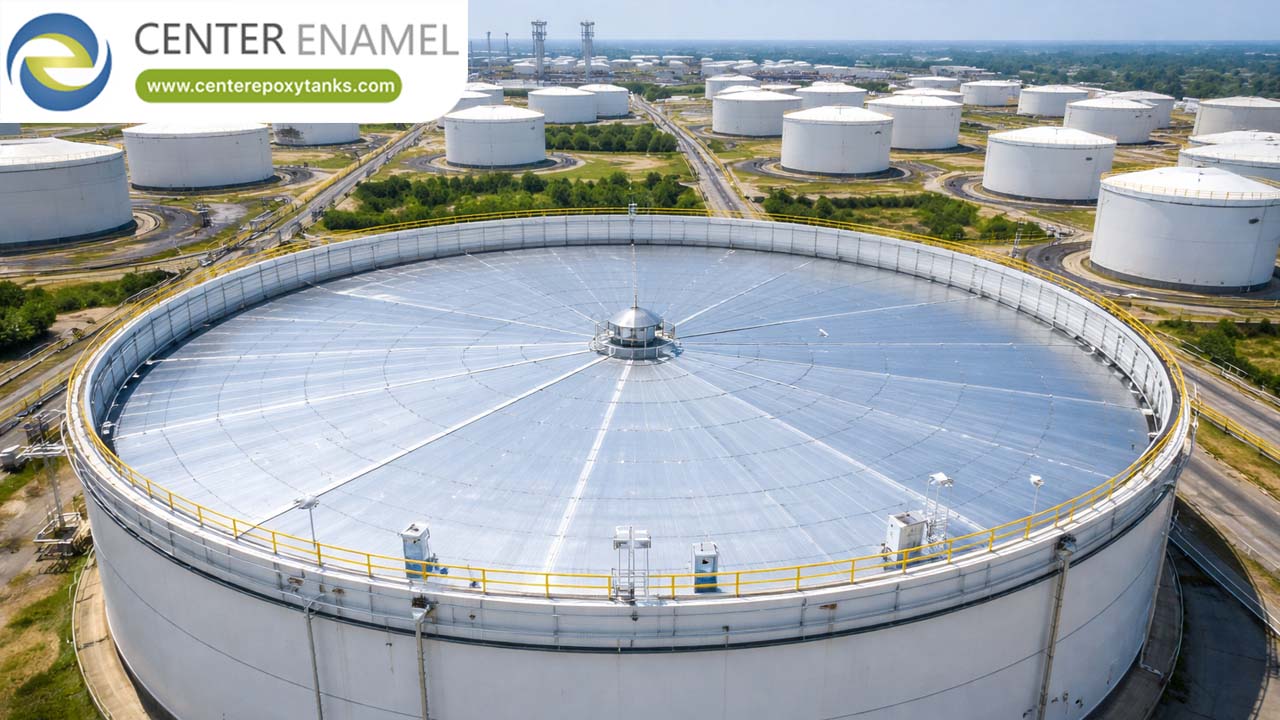

To overcome these environmental bottlenecks, Center Enamel offers a proactive protection upgrade: retrofitting or building a self-supporting Aluminum Geodesic Dome Roof directly over an external floating roof tank.

By placing an API 650 Appendix G compliant aluminum dome over the tank shell, the asset is converted into a protected internal floating roof environment. This configuration provides distinct operational advantages:

● Atmospheric and Corrosion Isolation: Completely seals the tank interior from corrosive maritime air, rainfall, and blowing dust, protecting the underlying dynamic rim seals from abrasion and maintaining fluid purity.

● Elimination of Rainwater Drainage Risks: Blocks rainwater and dust from accumulating on the floating deck, entirely removing the operational risk of a drainage hose failure or a jammed swivel joint sinking the roof structure.

● No Hot-Work Field Assembly: The modular aluminum components are secured mechanically using structural bolts and premium silicone gaskets. This eliminates the need for open-flame field welding or hot-work permits, allowing safe installation inside active, high-risk terminal zones.

6. A Unified Turnkey Containment Ecosystem Partner

Managing major energy and industrial projects can suffer from procurement fragmentation when the tank shell is sourced from one fabricator, the floating deck from another, and the environmental roof from a third. This often leads to field alignment errors and split-warranty disputes.

Center Enamel removes this risk by acting as a single-source turnkey containment ecosystem provider. Holding nearly 200 proprietary patents and operating state-of-the-art automated manufacturing facilities certified to ISO 9001:2015, Center Enamel designs, manufactures, and supplies the entire asset stack simultaneously under strict factory quality control.

Whether integrated with our field-welded steel tanks or paired with our premium Glass-Fused-to-Steel (GFS) and Fusion Bonded Epoxy (FBE) bolted vessels—which are widely utilized for industrial wastewater, municipal sewage, and biogas projects globally—Center Enamel ensures that the floating roof matches perfectly in engineering tolerance and structural load distribution.

Capital-Efficient, Future-Proof Infrastructure

As regional midstream networks and industrial plants continue to modernize their bulk storage facilities, investing in durable, code-compliant infrastructure is vital. Center Enamel's External Floating Roof Tanks provide industrial customers with an ideal balance of evaporation control, operational safety, and structural longevity. By matching advanced material science with single-source horizontal integration and protective aluminum domes, Center Enamel helps industrial operators protect inventory, reduce emissions, and secure decades of reliable asset service life.

Protect your industrial assets, reduce product yield loss, and maintain strict safety standards. Contact Center Enamel today for an expert technical engineering consultation and a code-compliant project quote for your facility.
