Center Enamel Supplies Advanced Internal Floating Roofs for the United Arab Emirates’ Midstream Petroleum Sector

As the United Arab Emirates (UAE) consistently expands its global downstream and midstream capabilities—anchored by the critical Fujairah bunkering hub, Ruwais refinery expansions, and massive strategic crude oil storage reserves—the demand for high-capacity containment infrastructure continues to climb. Bulk storage terminal tank farms operating across Abu Dhabi, Dubai, and Fujairah must perform flawlessly under some of the most punishing industrial conditions on earth. Containment assets are required to maintain strict process safety, satisfy strict environmental regulations, and withstand aggressive climate factors, including hyper-arid desert heat, seasonal sandstorms, and extreme coastal maritime salinity.

To protect high-value petroleum assets, preserve product volume, and eliminate hazardous vapor buildup under intense solar exposure, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) delivers world-class, custom-engineered Internal Floating Roofs (IFRs) tailored specifically for industrial clients in the United Arab Emirates. Backed by over 30 years of advanced manufacturing experience and a legacy of successful global installations, Center Enamel delivers complete, code-compliant containment ecosystems in strict compliance with API Standard 650 Annex H.

1. The Engineering Logic of IFR Systems in High-Temperature Climates

Traditional fixed-roof storage tanks maintain a permanent air-gas headspace (ullage) above the stored liquid line. When storing volatile hydrocarbons—such as crude oil, gasoline, jet fuel, and light naphtha—under the intense UAE sun, the liquid surface rapidly flashes into gas. This leads to two major operational risks:

1. Aggressive Evaporative Product Loss: Continuous daily thermal cycles drive "breathing losses," venting valuable product yield straight into the atmosphere.

2. Explosive Internal Atmospheres: The accumulation of Volatile Organic Compounds (VOCs) and hazardous gases creates highly combustible headspace zones beneath a fixed roof.

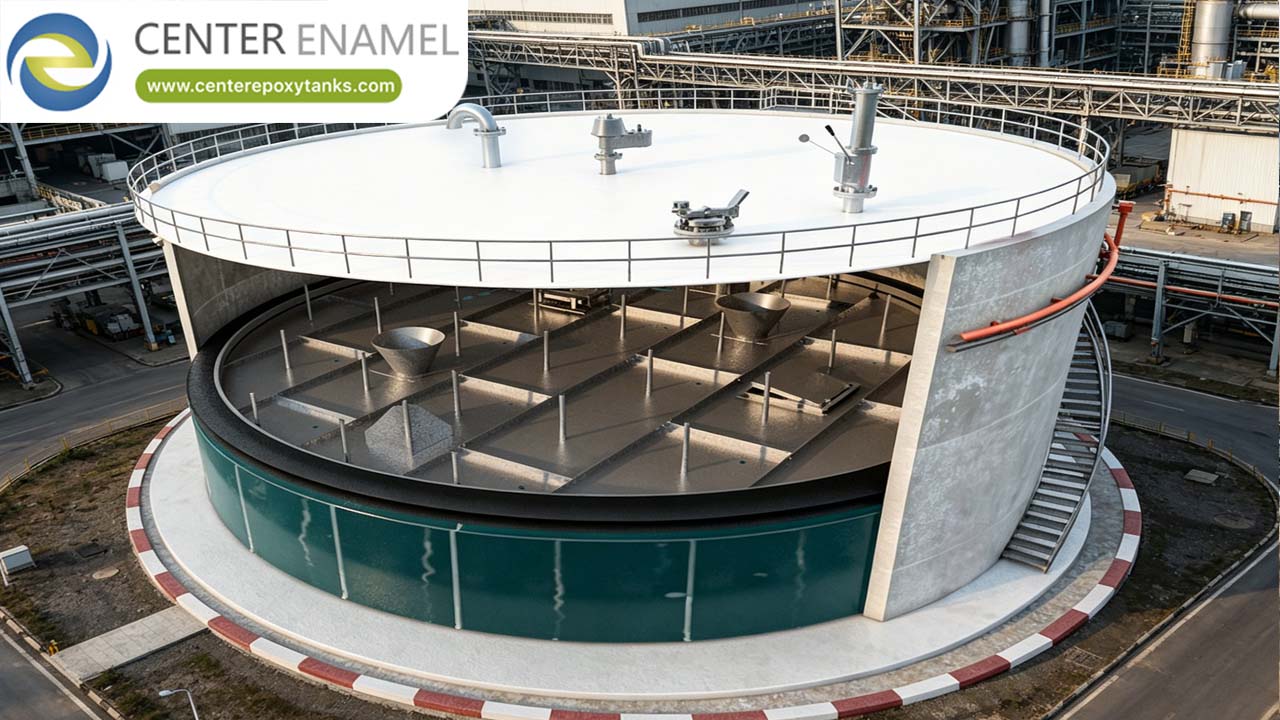

Center Enamel’s Internal Floating Roofs directly solve these structural vulnerabilities. By engineering a buoyant, liquid-tight deck that sits inside a fixed-roof tank, resting directly on the fluid surface and tracking vertically with liquid level shifts, the vapor headspace is effectively isolated from the liquid. This system suppresses up to 95% to 99% of VOC breathing losses, preserving inventory yield while eliminating the flammable air-vapor mixture required to support high-intensity internal tank explosions.

2. Advanced Structural Configurations for Heavy Crude & Refined Storage

Under API 650 Annex H guidelines, Center Enamel utilizes advanced Finite Element Analysis (FEA) to pre-fabricate custom internal floating roof structures capable of handling structural pressures and localized stresses:

A. Skin-and-Pontoon Aluminum IFRs

An economical, highly efficient, and structurally rigid option featuring a series of interconnected, liquid-tight perimeter and internal buoyancy pontoons supporting a continuous thin aluminum sheet skin.

● Optimized Buoyancy Margins: In strict compliance with international standards, Center Enamel's designs guarantee the roof remains safely afloat even if the primary center deck skin and any two adjacent pontoon compartments suffer physical punctures or fluid breaches.

● Corrosion Resistance: Constructed using marine-grade aluminum alloys, these roofs are highly resistant to volatile hydrocarbon vapors and humid environments.

B. Full Contact Honeycomb IFRs

For applications requiring maximum emission mitigation, Center Enamel provides panelized full-contact floating decks.

● Zero Vapor Space: Because the entire bottom surface of the floating deck remains in direct contact with the stored liquid, it completely eliminates the shallow vapor space found beneath standard pontoon decks, offering the ultimate level of VOC containment.

3. High-Performance Rim Seals and Boundary Integrity

The boundary where a dynamic floating deck meets a static vertical tank shell requires robust engineering to prevent vapor leakage and handle operational irregularities:

● The "Zero-Gap" Sealing Protocol: The perimeter gap is protected by premium mechanical shoe primary seals coupled with multi-layered fluoroelastomer (PTFE/Viton) secondary wiper seals. These systems maintain continuous contact along the interior wall, easily accommodating out-of-round shell irregularities to form an airtight barrier.

● Anti-Rotation and Guide Systems: To prevent the internal floating deck from rotating or shifting due to liquid turbulence during filling or emptying cycles, Center Enamel integrates robust guide poles and anti-rotation cables, ensuring smooth, vertical tracking.

● Static Dissipation and Earthing: Static electricity buildup poses a significant ignition risk during fluid movement. Center Enamel IFRs feature code-compliant grounding shunts and stainless steel cables that safely discharge static electricity directly to the tank shell structure, eliminating electrical arcing risks near the rim space.

4. Technical Specification & Performance Framework

5. The Ultimate Containment Shield: The Aluminum Dome Integration

For existing open-top tanks or new installations located in coastal corridors subject to high humidity and salt spray, or inland desert regions subject to intense sandstorms, deploying a basic external floating roof brings major maintenance challenges. Blowing sand and fine dust accumulate on an exposed deck, clogging drainage systems and causing mechanical seal abrasion, while the extreme sun forces rapid degradation of exposed seals.

To overcome these environmental bottlenecks, Center Enamel offers the ultimate conversion: retrofitting or building a self-supporting Aluminum Geodesic Dome Roof directly over the tank shell, paired with an internal floating roof.

By placing an API 650 Appendix G compliant aluminum dome over the tank shell, the asset is converted into a highly protected internal floating roof environment. This configuration provides distinct operational advantages:

● Atmospheric and Dust Isolation: Completely seals the tank interior from corrosive maritime air, rainfall, and blowing desert dust, protecting the underlying dynamic rim seals from abrasion and maintaining fluid purity.

● Elimination of Rainwater Concerns: Blocks rainwater and sand from accumulating on the floating deck, entirely removing the operational risk of standing water sinking the roof structure and eliminating the need for complex open-deck storm drains.

● No Hot-Work Field Assembly: The modular aluminum components are secured mechanically using structural bolts and premium silicone gaskets. This eliminates the need for open-flame field welding or hot-work permits, allowing safe installation inside active, high-risk terminal zones.

6. A Unified Turnkey Containment Ecosystem Partner

Managing major energy and petrochemical infrastructure projects can suffer from procurement fragmentation when the tank shell is sourced from one fabricator, the internal floating roof from another, and the protective dome from a third. This often leads to field alignment errors and split-warranty disputes.

Center Enamel removes this risk by acting as a single-source turnkey containment ecosystem provider. Holding nearly 200 proprietary patents and operating state-of-the-art automated manufacturing facilities certified to ISO 9001:2015, Center Enamel designs, manufactures, and supplies the entire asset stack simultaneously under strict factory quality control.

Whether integrated with our field-welded steel tanks or paired with our premium Glass-Fused-to-Steel (GFS) and Fusion Bonded Epoxy (FBE) bolted vessels—which are highly utilized across global industrial water and renewable energy grids—Center Enamel ensures that the internal floating roof matches perfectly in engineering tolerance and structural load distribution.

Capital-Efficient, Future-Proof Infrastructure

As the UAE continues to expand its refining capacity, oil terminals, and strategic bulk storage networks, investing in durable, code-compliant infrastructure is vital. Center Enamel's Internal Floating Roofs provide UAE customers with an ideal balance of evaporation control, operational safety, and structural longevity. By matching advanced material science with single-source horizontal integration and protective aluminum domes, Center Enamel helps industrial operators protect inventory, reduce emissions, and secure decades of reliable asset service life.

Protect your industrial assets, reduce product yield loss, and maintain strict safety standards. Contact Center Enamel today for an expert technical engineering consultation and a code-compliant project quote for your facility.
