Center Enamel Supplies Advanced Floating Roof Tanks for Saudi Arabia’s Energy and Industrial Infrastructure

As the Kingdom of Saudi Arabia advances its massive infrastructure goals under Vision 2030, engineering procurement firms, EPC contractors, and refinery operators face unique engineering challenges. Downstream oil and gas assets, petrochemical plants, and major industrial hubs—such as Jubail, Yanbu, Ras Tanura, and the specialized energy initiatives within NEOM—must operate reliably under some of the harshest environmental conditions on earth. Ambient summer temperatures regularly exceed 50°C, and equipment is subject to extreme ultraviolet (UV) exposure, intense solar radiation, and abrasive desert sandstorms.

To protect high-value petroleum assets, maintain product purity, and eliminate hazardous vapor buildup, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) offers world-class, custom-engineered Internal and External Floating Roof Tanks (IFRT / EFRT) tailored for the Saudi Arabian market. With over 30 years of advanced manufacturing experience and thousands of successful projects worldwide, Center Enamel delivers complete containment ecosystems in strict compliance with international engineering codes like API Standard 650 and AWWA D103-09.

1. The Critical Need for Floating Roof Technology in Saudi Arabia's Hydrocarbon Sector

Traditional fixed-cone or dome-roof storage tanks maintain a permanent air-gas headspace (ullage) above the stored liquid line. When storing volatile hydrocarbons—such as crude oil, gasoline, diesel, and refined chemical intermediates—under the intense Saudi sun, the liquid surface rapidly flashes into gas. This causes two major operational threats:

1. Aggressive Evaporative Product Loss: Continuous daily thermal cycles drive "breathing losses," venting valuable evaporated product yield straight into the atmosphere.

2. Explosion and Environmental Hazards: The continuous accumulation of Volatile Organic Compounds (VOCs) and hazardous gases like hydrogen sulfide ($H_2S$) creates highly combustible internal atmospheres.

Center Enamel’s floating roof systems eliminate these risks. By engineering a structural deck that rests directly on the liquid surface and tracks vertically as fluid levels fluctuate, the vapor headspace is completely removed. This system suppresses up to 95% to 99%+ of evaporative product loss, preserving inventory yield while eliminating the medium required to support a catastrophic tank fire.

2. Technical Specializations: Center Enamel's Product Lineup

Center Enamel provides versatile, application-specific materials and configurations optimized to survive rigorous industrial operating parameters:

A. Internal Floating Roof Tanks (IFRT) – API 650 Annex H

Operating inside a fixed outer shell cover, Center Enamel's internal floating decks are completely isolated from desert wind currents and ambient sand dust.

● Full Contact Aluminum Honeycomb Decks: Constructed from a high-buoyancy, modular panelized aluminum honeycomb matrix, the entire surface area of the deck rests in direct, continuous contact with the stored liquid. By physically displacing the air-vapor interface, it leaves no underlying space where volatile gases can separate from the fluid, providing maximum emission mitigation.

● Skin-and-Pontoon IFR Configurations: A highly cost-effective yet structurally rigid alternative featuring 10-inch tubular aluminum pontoons that support an overlapping aluminum deck skin. This lightweight, modular framework provides excellent buoyancy and ease of field assembly.

B. External Floating Roof Tanks (EFRT) – API 650 Annex C

For ultra-large-diameter bulk terminal storage (such as massive crude oil reserves), Center Enamel designs heavy-gauge, field-welded carbon steel external roofs.

● Double-Deck Welded Steel EFR: Features top and bottom steel plates enclosing a compartmentalized dead-air insulation layer. This structural dead-air zone acts as a powerful thermal barrier, preventing solar radiation from heating the underlying crude oil and causing center-deck vapor "ballooning."

C. Heavy-Duty Stainless Steel Variants

For aggressive refinery wastewater, sour crude handling, or processing lines with high chemical reactivity, Center Enamel manufactures robust IFRs utilizing premium Grade 304 or 316L Stainless Steel. This ensures total immunity against acid pitting and hydrogen sulfide corrosion.

3. High-Performance Rim Seals and Safety Engineering

The boundary where a dynamic floating deck meets a static vertical tank shell requires robust engineering to prevent vapor leakage and manage environmental stresses:

● Vapor-Tight Rim Seals: The perimeter gap is protected by premium metallic mechanical shoe primary seals coupled with multi-layered fluoroelastomer (PTFE/Viton) secondary wiper seals. These systems maintain continuous contact along the interior wall, easily accommodating out-of-round shell irregularities to form an airtight barrier.

● Static Control & Lightning Protection: In strict compliance with API standards, Center Enamel roofs are equipped with low-impedance continuous stainless steel grounding shunts and multi-strand electrical bonding cables. This provides a direct path to ground, safely dissipating static charges generated during high-velocity filling operations and eliminating electrical arcing.

● High-Capacity Storm Drainage (for EFRTs): To prevent heavy flash rains from overloading an open deck, Center Enamel integrates premium internal drainage networks. Utilizing either articulated steel pipes with mechanical swivel joints or high-strength flexible hoses, these lines rapidly discharge water from the deck surface to the outside of the tank shell at rates up to 250mm/hour, preventing roof submergence.

4. Technical Performance and Compliance Framework

5. Overcoming Sandstorms and Intense Heat: The Aluminum Dome Shield

For Saudi Arabian operations located in heavy desert sandstorm corridors or coastal zones, deploying an exposed open-top tank brings significant maintenance challenges. Sand and dust accumulate on the exposed deck, clogging center drainage screens and causing mechanical seal abrasion.

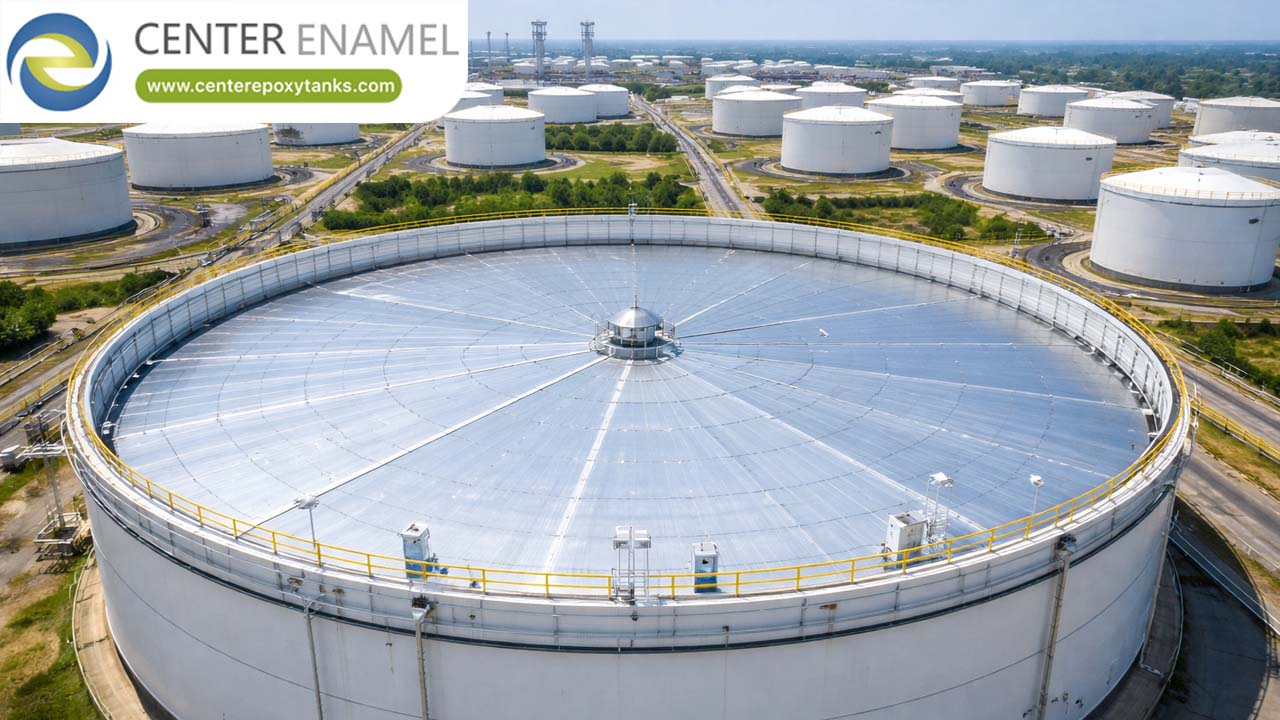

To overcome this environmental bottleneck, Center Enamel offers the ultimate protection upgrade: retrofitting or building an Aluminum Geodesic Dome Roof directly over an external floating roof tank.

By placing an API 650 Appendix G compliant aluminum dome over the tank shell, the asset is converted into an internal floating roof environment. This configuration provides distinct operational advantages:

● Sand and Dust Isolation: Completely seals the tank interior from airborne sand ingress, protecting the underlying dynamic rim seals from abrasion and maintaining fluid purity.

● Elimination of Rainwater Drainage Risks: Blocks rainwater from accumulating on the floating deck, entirely removing the operational risk of a drainage hose failure or a jammed swivel joint sinking the roof structure.

● No Hot-Work Field Assembly: The modular aluminum components are secured mechanically using structural bolts and premium silicone gaskets. This eliminates the need for open-flame field welding or hot-work permits, allowing safe installation inside active, high-risk refinery zones.

6. A Unified Turnkey Containment Ecosystem Partner

Managing major energy or water purification projects can suffer from procurement fragmentation when the tank shell is sourced from one fabricator, the floating deck from another, and the environmental roof from a third. This often leads to field alignment errors and split-warranty disputes.

Center Enamel removes this risk by acting as a single-source turnkey containment ecosystem provider. Holding nearly 200 proprietary patents and operating state-of-the-art automated manufacturing facilities certified to ISO 9001:2015, Center Enamel designs, manufactures, and supplies the entire asset stack simultaneously under strict factory quality control.

Whether integrated with our field-welded steel tanks or paired with our premium Glass-Fused-to-Steel (GFS) and Fusion Bonded Epoxy (FBE) bolted vessels—which have already been successfully deployed across wastewater and water supply projects in Saudi Arabia—Center Enamel ensures that the floating roof matches perfectly in engineering tolerance and structural load distribution.

Capital-Efficient, Future-Proof Infrastructure

As Saudi Arabia continues to expand its energy processing and strategic water supply networks under Vision 2030, investing in durable, code-compliant infrastructure is vital. Center Enamel's Internal and External Floating Roof Tanks provide Saudi Arabian customers with an ideal balance of evaporation control, operational safety, and structural longevity. By matching advanced material science with single-source horizontal integration and sandstorm-resistant aluminum domes, Center Enamel helps industrial operators protect inventory, reduce emissions, and secure decades of reliable asset service life.

Protect your industrial assets, reduce product yield loss, and maintain strict safety standards. Contact Center Enamel today for an expert technical engineering consultation and a code-compliant project quote for your Saudi Arabian facility.
