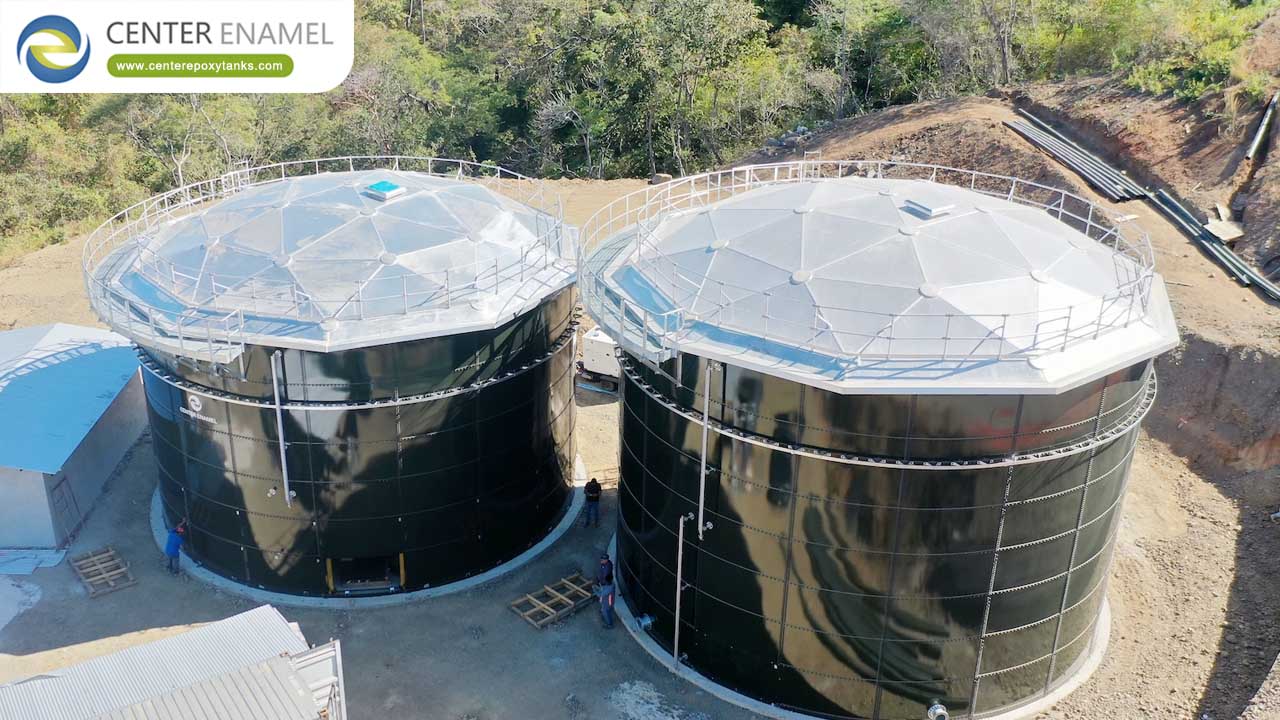

Aluminum geodesic domes are the premier clear-span covering solution for large-diameter storage tanks, offering superior strength-to-weight ratios and total corrosion resistance. Center Enamel, a leading manufacturer, engineers domes compliant with AWWA D108, API 650, and ASCE 7 standards. Utilizing high-strength 6000-series aluminum alloys, our domes eliminate the need for internal support columns, reduce evaporative loss in petroleum applications, and provide a 50-year maintenance-free service life for water, wastewater, and bulk storage projects worldwide.
Feature | Technical Specification | Strategic Reliability Value |
Material Grade | Aluminum Alloy 6061-T6 / 6063-T5 | Marine-grade corrosion resistance; no painting required. |
Design Standards | AWWA D108, API 650 (App. G), ADM | Ensures structural compliance for global industrial codes. |
Load Capacity | **Snow: 300+ kg/m² | Wind: 240+ km/h** |
Clear Span | Up to 120+ Meters | Column-free interior optimizes storage volume and mixing. |
Seal Integrity | Silicone / EPDM Gaskets (UV Resistant) | 100% gastight and watertight batten bar systems. |
Compatibility | GFS, Welded Steel, Concrete Tanks | Versatile mounting for new builds or retrofits. |
The geodesic dome utilizes a network of great circles (geodesics) on the surface of a sphere. This triangular space-frame distributes stress throughout the entire structure.
● Self-Supporting: By eliminating internal columns, the dome provides an unobstructed interior, which is critical for Wastewater Treatment (clarifiers) and Bulk Material Handling (stockpiles) where equipment movement is required.
● Lightweight Advantage: Aluminum domes weigh approximately 1/3 of a comparable steel fixed roof. This lower dead load reduces the structural requirements for the tank shell and foundation, significantly lowering overall CAPEX.
● Petroleum & Finished Fuels: When used as a "weather shield" over internal floating roofs, aluminum domes protect seal systems from UV and rain, reducing VOC emissions and preventing water contamination.
● Municipal Water & Wastewater: Domes provide an odor-control barrier for anaerobic digesters and protect potable water from airborne contaminants and wildlife.
● Bulk Science & Agriculture: Protecting dry bulk (cement, grain, salt) from moisture ingress while allowing for high-volume aeration and natural lighting through optional skylights.
As Asia’s most experienced bolted tank and cover manufacturer, Center Enamel provides a unique engineering advantage:
● Advanced FEA Modeling: Every dome is subjected to Finite Element Analysis (FEA) to simulate localized environmental loads (seismic, wind, and snow), ensuring the structure exceeds local building codes.
● Precision Fabrication: Components are CNC-machined in a factory-controlled environment, ensuring 100% fitment on-site. This modular "kit" approach allows for rapid installation without specialized heavy lifting equipment.
● Total System Integration: We provide comprehensive solutions, pairing our domes with Glass-Fused-to-Steel (GFS) or Fusion Bonded Epoxy (FBE) tanks for a seamless, single-source storage asset.
Q: Does an aluminum dome require periodic painting or coating?
A: No. Aluminum forms a natural, protective oxide layer. Unlike steel roofs, there is no risk of rust or peel, making it the most cost-effective long-term solution for corrosive environments like coastal sites or wastewater plants.
Q: Can the dome be installed while the tank is in operation?
A: Often, yes. Because the components are lightweight and require no welding ("hot work"), domes can frequently be assembled on the ground and craned into place, or built in-situ with minimal operational downtime.
Q: How do you ensure the dome is watertight?
A: We utilize a proprietary batten bar sealing system with high-grade EPDM gaskets. The panels are mechanically fastened to the space frame, creating a continuous, leak-proof shield against the elements.
