Center Enamel Delivers Energy-Efficient Double Membrane Gas Holders for Your Biogas Systems
As the global transition toward circular bioeconomies and green energy accelerates, anaerobic digestion (AD) has become a cornerstone technology for converting organic waste into clean power, heat, and biomethane. However, because biological digestion operates as a continuous 24/7 biological process while energy consumption and upgrading schedules fluctuate dynamically, facilities require reliable intermediate gas containment.

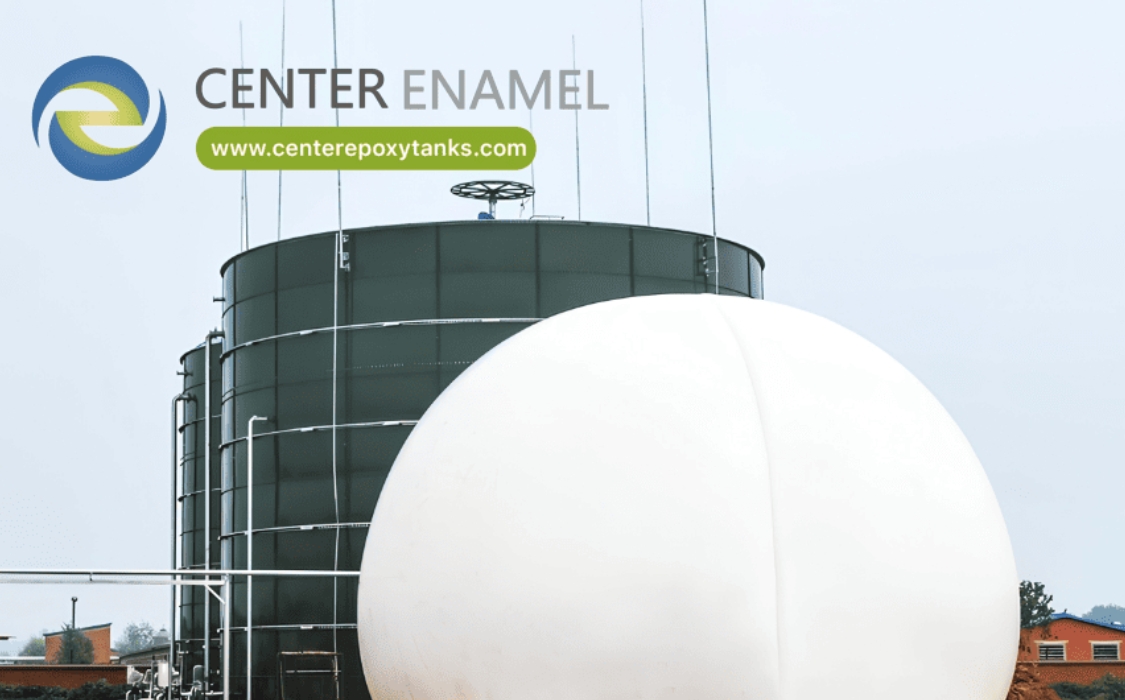

To bridge this operational gap, Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) delivers world-class, energy-efficient double membrane gas holders engineered to optimize pressure stability, maximize methane recovery, and ensure long-term asset reliability for biogas systems worldwide.
The Engineering Mechanics of Double Membrane Biogas Storage
Center Enamel’s double membrane gas holders utilize a sophisticated multi-layer flexible architecture designed to isolate biogas safely while providing dynamic volume adaptation:
Outer Weather Shield: Manufactured from high-tenacity polyester fabric coated with specialized PVDF (Polyvinylidene Fluoride), the outer membrane maintains constant positive air pressure via an automated blower system. This shields the inner gas storage bladder from extreme environmental loads, wind shear up to 150 km/h, and UV degradation.
Inner Gas Containment Bladder: Directly housing the raw biogas, the inner membrane expands and contracts dynamically like a "variable lung," absorbing shifts in biological gas production without inducing back-pressure on the anaerobic digesters.

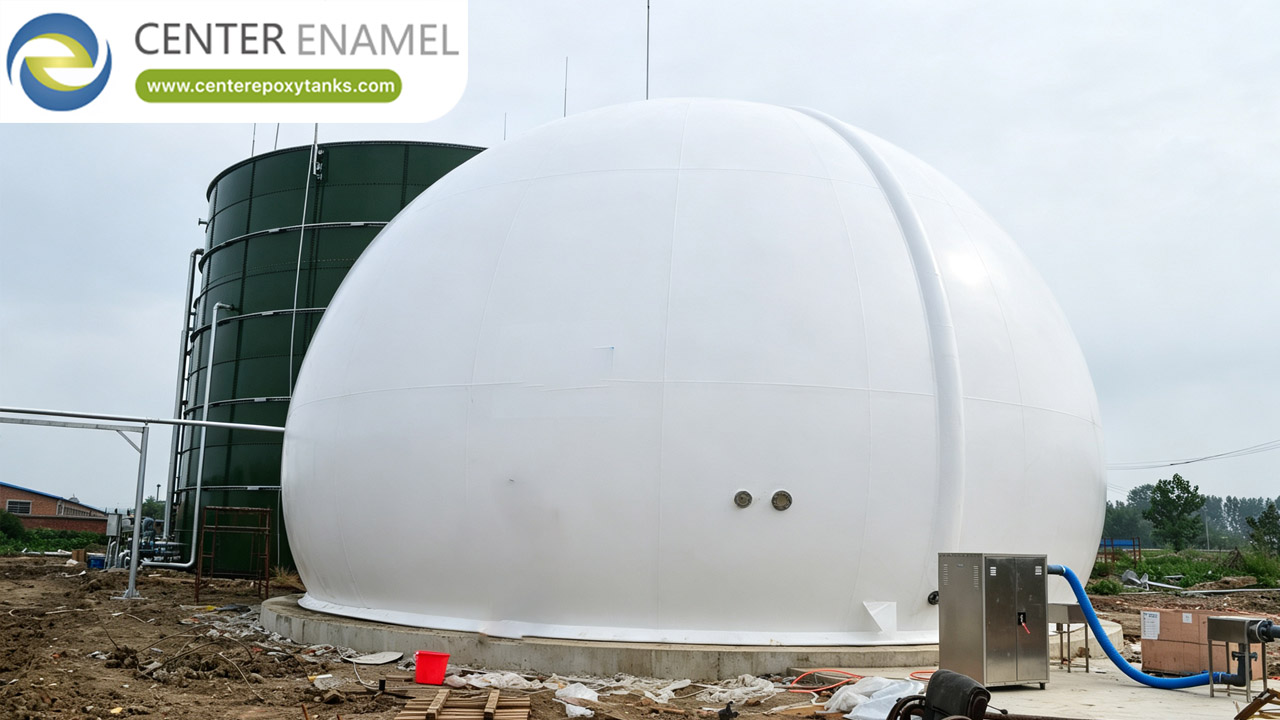

Bottom Sealing Membrane: For ground-mounted installations, a robust base membrane hermetically seals the storage volume against the concrete foundation. Alternatively, systems can be mounted directly onto existing GFS or epoxy-coated steel tanks.
High-Frequency Seam Welding: Membrane panels are fused using advanced high-frequency welding technology, producing molecular bonds that exceed the tensile strength of the base fabric and guarantee 100% gas-tight integrity.
Technical Performance Matrix: Biogas Storage Technologies
Technical Parameter | Center Enamel Double Membrane Gas Holder | Traditional Rigid Steel Gas Holder | Underground Concrete Biogas Pits |
Methane Permeability & Sealing | Ultra-low permeability (< 400 cm3/m2); zero gas loss | Rigid steel joints prone to micro-cracks and gas leakage over time | High risk of gas seepage through porous concrete walls |
Corrosion & Chemical Resistance | Superior; chemically inert to biogenic hydrogen sulfide (H2S) and CO2 | Low; highly vulnerable to internal oxidation and H2S corrosion | Moderate; susceptible to acid attack from wet biogas condensate |
Volume Flexibility & Efficiency | Dynamic "variable lung" expansion matches fluctuating gas generation | Fixed volume storage requiring external pressure compensation | Rigid volume capacity with no operational buffering flexibility |
Installation Velocity & Agility | Rapid modular erection (days to 1-2 weeks) with minimal foundation work | Slow, labor-intensive field welding and heavy civil construction | Extremely slow civil construction and multi-week concrete curing |
Key Advantages for Modern Biogas Plants
1. Superior Material Science and PVDF Surface Protection
A gas holder's lifespan is heavily determined by its resistance to external weathering and internal chemical attack from biogenic gases. Center Enamel integrates a premium PVDF topcoat that naturally sheds dust and organic debris with rainwater while providing total chemical immunity against sulfur compounds (H2S) and ammonia.
2. Seamless Integration with Anaerobic Digesters
Whether deployed as standalone ground-mounted gasometers or mounted directly on top of Glass-Fused-to-Steel (GFS) anaerobic digesters, Center Enamel's systems feature precise clearance engineering, vibration isolation, and optimized volume geometries to interface safely with internal mixing agitators.
3. Compliance with Rigorous Global Standards
Center Enamel manufactures its biogas storage systems under strict quality management frameworks compliant with ISO 9001, EN 13782, and ATEX safety protocols, ensuring absolute operational safety and regulatory peace of mind.
Frequently Asked Questions (FAQ)
Q: What makes Center Enamel double membrane gas holders energy-efficient?
A: Center Enamel's gas holders maintain stable internal operating pressures through automated, energy-optimized air-support blowers and ultra-low methane permeability membranes (< 400 cm3/m2), eliminating gas loss and reducing parasitic energy loads.
Q: What is the expected service life of a Center Enamel PVDF-coated gas holder?
A: With proper pressure management and UV-stabilized PVDF surface protection, Center Enamel's double membrane gas holders are engineered for a reliable service life of 15 to 20 years.
Q: Can these gas holders be retrofitted onto existing biogas tanks?
A: Yes. The modular design and flexible anchoring profiles allow Center Enamel's double membrane systems to be retrofitted seamlessly onto existing concrete, GFS, or epoxy-coated steel tanks, provided the structural rim is sound.
Q: How do the gas holders handle extreme wind and snow loads?
A: The outer membrane is stabilized by continuous positive air pressure and spherical engineering geometry, allowing the system to withstand wind speeds up to 150 km/h and snow loads up to 1.5 kN/m2.
