Biogas Holders for Food Processing Plants: Advanced Energy Recovery and Wastewater Management
Food and beverage processing facilities—including breweries, dairies, meat processing plants, fruit and vegetable packaging operations, and starch manufacturing units—generate massive volumes of high-strength organic wastewater. Characterized by elevated Chemical Oxygen Demand (COD), suspended solids, and fluctuating biological loads, untreated effluent poses severe environmental and regulatory challenges.
To meet stringent discharge mandates while reducing utility overhead, modern food processing plants increasingly deploy anaerobic digestion systems to break down organic pollutants. However, capturing, buffering, and utilizing the resulting methane-rich biogas safely requires robust containment infrastructure. Advanced biogas holders—specifically engineered with double-membrane architecture—provide an optimal, highly reliable storage solution tailored for the food and beverage sector.
1. The Challenges of Food Processing Wastewater and Biogas Buffering
Effluents from food and beverage plants present distinct biochemical dynamics that demand specialized engineering:
High Organic Loading Fluctuations: Production schedules, cleaning cycles, and seasonal shifts cause rapid variations in daily biogas generation rates. Direct combustion without intermediate buffer storage often leads to boiler instability or burner shut-off.
Corrosive Gas Constituents: Anaerobic breakdown of protein- and sugar-rich food waste generates moisture-laden biogas containing trace levels of hydrogen sulfide , which can rapidly corrode standard metal gas storage tanks.
Strict Pressure Regulation Needs: Downstream combined heat and power (CHP) engines or thermal boilers require a steady, uniform delivery pressure regardless of production peaks or troughs.
2. Advanced Double-Membrane Biogas Holder Technology
Modern membrane gas holders solve these operational hurdles through an advanced multi-layer, pressure-stabilized design:
Inner Membrane (Gas Containment): Fabricated from specialized, high-tenacity polyester fabrics coated with premium PVC/PVDF polymers, the inner bladder securely houses the biogas, offering high resistance to permeation, UV degradation, and biological corrosion.
Outer Membrane (Environmental Shield): Maintained continuously under positive pressure by an energy-efficient auxiliary air blower, the outer shell forms a robust protective dome that safeguards against wind loads, heavy snow, and weathering.
Interstitial Air-Pressure Buffer: The space between the inner and outer layers acts as a regulation chamber, automatically adjusting air volume to ensure a constant, reliable output pressure for downstream energy equipment.
Data Table: Biogas Storage Solution Comparison for Food Processing Plants
Technical Parameter | Double-Membrane Gas Holder | Traditional Low-Pressure Steel Holder | High-Pressure Steel Gas Cylinder |
Volumetric Adaptability | Dynamic expansion and contraction based on real-time biogas flow | Fixed operating volume with heavy mechanical counterweights | Fixed volumetric capacity requiring intensive gas compression |
Corrosion Resistance | High (Chemically inert PVC/PVDF fabrics resistant to H2S and moisture) | Moderate (Subject to internal rust and moisture degradation) | Moderate (Requires periodic interior protective recoating) |
Installation Footprint | Lightweight, modular design mounted on concrete pads or digester tanks | Heavy civil construction and deep foundation piles | Heavy skid mounts and thick-walled steel cylinders |
Maintenance Profile | Minimal upkeep with automated pressure monitoring | High (Requires frequent manual inspections and paint maintenance) | High (Requires strict pressure-vessel recertification audits) |
3. Operational and Environmental Benefits
Integrating a high-performance biogas holder into a food processing wastewater treatment plant delivers substantial strategic advantages:
Maximized Energy Self-Sufficiency: Storing and burning captured methane in CHP units generates electricity and thermal energy, significantly lowering facility utility costs and carbon footprints.
Odor and Emission Control: Fully sealed membrane systems eliminate fugitive biogas leaks, ensuring complete odor containment and strict compliance with local environmental air quality mandates.

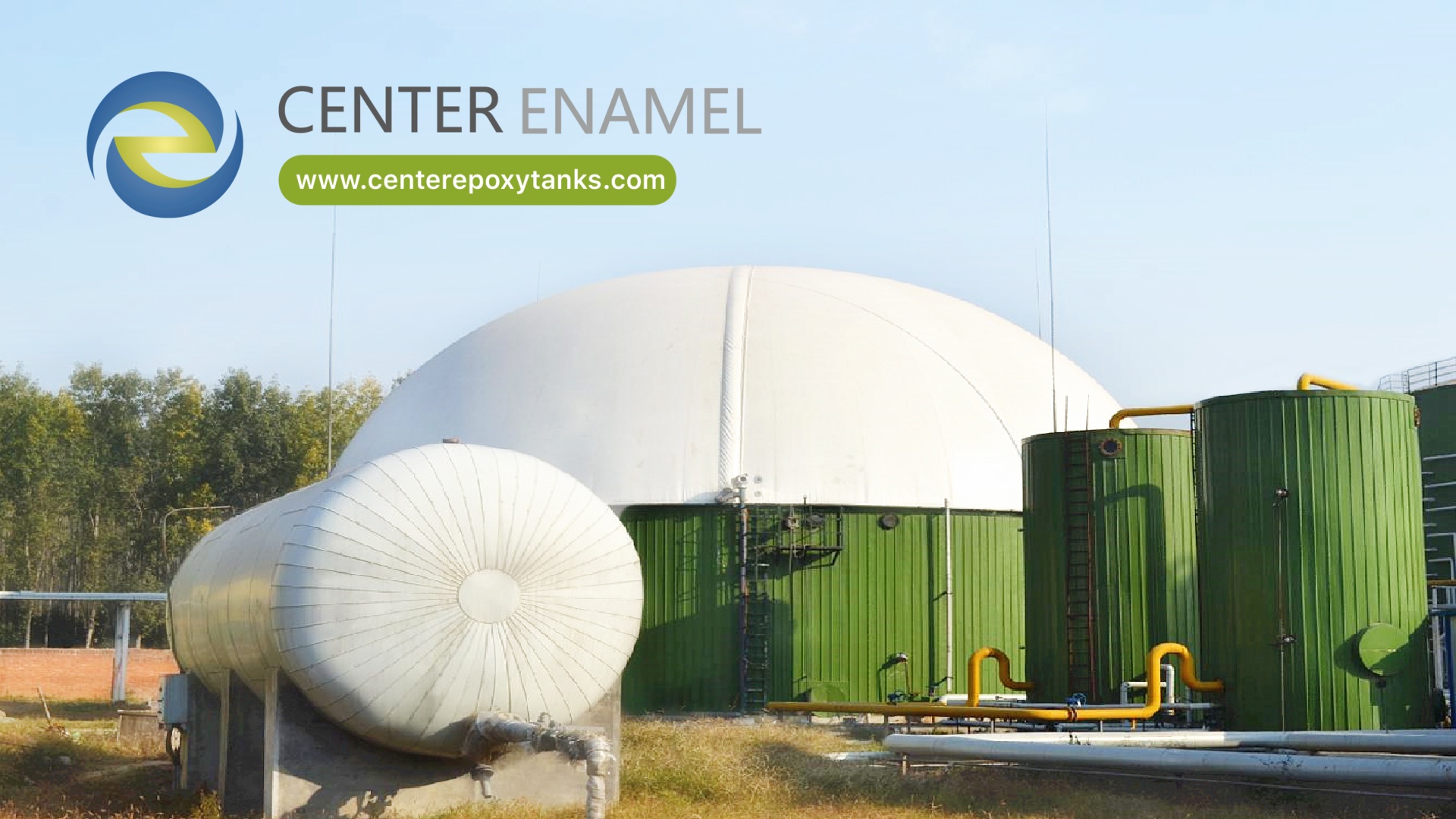

Flexible Integration Options: Biogas holders can be installed either as standalone ground-mounted units on concrete pads or integrated directly atop circular anaerobic digester tanks (such as Glass-Fused-to-Steel or welded steel tanks) to minimize spatial footprint.
Frequently Asked Questions (FAQ)
Q: Why are biogas holders essential for food processing plants?
A: Food processing wastewater has a high organic content that produces large volumes of biogas during anaerobic digestion. Biogas holders safely buffer fluctuations in gas generation, ensuring a steady fuel supply and stable pressure for boilers or CHP engines.
Q: How does the double-membrane system maintain a constant gas output pressure?
A: An automated auxiliary air blower system continuously pressurizes the space between the inner and outer membranes, exerting a uniform downward force on the inner gas containment bladder to guarantee stable delivery pressure.
Q: Can biogas holders be mounted directly onto anaerobic digester tanks?
A: Yes. Biogas holders can be configured either as standalone ground-mounted units or installed directly on top of circular anaerobic digestion tanks as tank-mounted covers, saving valuable space within the processing plant.
Q: What materials are used to manufacture industrial double-membrane gas holders?
A: They are fabricated using high-tenacity polyester base fabrics coated with specialized PVC/PVDF formulations treated with anti-fungal and UV-resistant compounds, ensuring long service life in demanding industrial environments.
