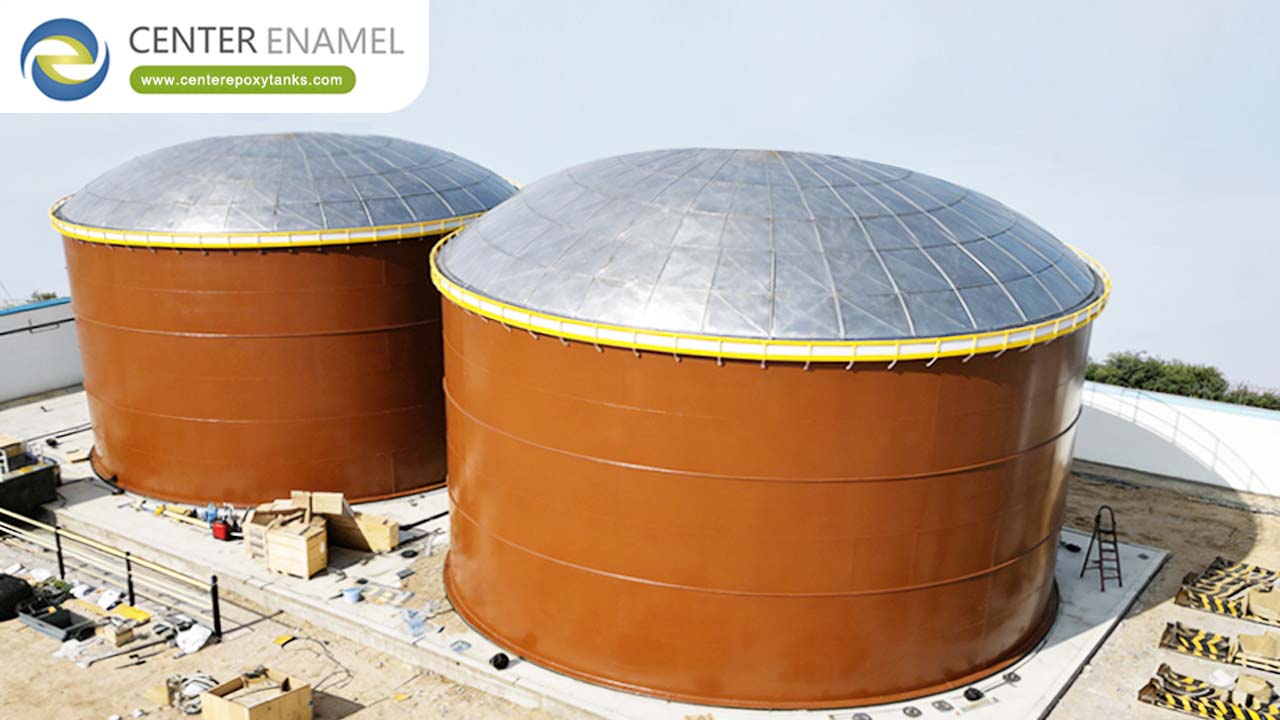

Shijiazhuang Zhengzhong Technology Co.,Ltd(Center Enamel) designs and manufactures high-strength Aluminum Geodesic Dome Roofs in strict accordance with API 650 Appendix G, AWWA D108, and ASCE 7-22. Utilizing 6061-T6 structural alloy, our self-supporting domes offer a clear-span solution for tanks up to 100m in diameter. Engineered to withstand 150mph wind loads and 100 psf snow accumulation, these covers provide a 50-year maintenance-free lifecycle for petroleum, potable water, and wastewater applications globally.
The structural integrity of a large-span dome depends on premium metallurgy and precision sealing. We bridge the gap between heavy industrial durability and efficient modular fabrication.
● Alloy Specification: Our domes are fabricated from 6061-T6 or 6063-T6 aluminum alloys. These materials offer the highest strength-to-weight ratio and form a natural oxide layer, making them impervious to atmospheric corrosion.
● Zero-Maintenance Design: Unlike steel, these alloys require no sandblasting or painting, eliminating the risk of localized thinning or rust-related structural failure over a 50-year design life.
● Sealing Technology: We utilize UV-resistant Silicone or EPDM gaskets that remain pliable under extreme solar radiation and temperature shifts.
● Thermal Expansion Management: The proprietary batten bar design allows aluminum panels to expand and contract independently, preventing stress-cracking at fastener points while maintaining a 100% weather-tight seal.
To satisfy the "Decision Stage" of the buyer's journey, we compare the lifecycle value of aluminum versus traditional steel.
Feature | Center Enamel Aluminum Dome | Traditional Steel Cone Roof |
Dead Weight | Ultra-Lightweight: ~10-15 kg/m². Reduces shell stress. | Heavy: Requires thick plates and internal support columns. |
Corrosion | Superior: Inherent oxide layer; no painting needed. | Poor: Susceptible to vapor-side rust; requires recoating. |
Maintenance | Virtually Zero: Engineered for 30+ year service. | High: Requires periodic inspections and repairs. |
Installation | Fast: Modular assembly; can be craned into place. | Slow: Extensive field welding and fire safety protocols. |
Vapor Control | High: Seamless integration with Internal Floating Roofs. | Moderate: Prone to seal degradation at junctions. |
We design and test every unit to simplify your facility's permitting and insurance processes by adhering to the world's leading petroleum and water codes.
● Hydrocarbon Compatibility: Optimized for vapor pressure and internal loading in oil and gas terminals.
● Self-Supporting Design: Per API requirements, our geodesic geometry eliminates internal columns, increasing usable volume and removing column-base corrosion risks.
● Potable Water Protection: Prevents ingress of birds, insects, and debris, ensuring compliance with health standards for municipal drinking water.
● Corrosion-Free Performance: Eliminates internal epoxy coatings that can leach into the water over time.
● High-Wind Resilience: Rated for hurricane zones with wind speeds up to 240 km/h (150 mph).
● Snow Loads: Calculated to support up to 100 psf (4.8 kPa) for sub-arctic stability.
● Q: Can aluminum geodesic domes be installed on existing tanks?
○ A: Yes. Due to their lightweight nature (approx. 1/3 the weight of steel), aluminum domes are ideal for retrofitting existing concrete or steel tanks without requiring foundation reinforcement.
● Q: How does Center Enamel ensure a leak-free dome structure?
○ A: We utilize a proprietary batten bar system with high-compression silicone gaskets. This allows for thermal expansion while maintaining a gas-tight seal.
● Q: Are these domes suitable for high-seismic zones?
○ A: Yes. Our domes are engineered to ASCE 7 standards, utilizing a hub-and-strut geometry that provides excellent ductility and stability during seismic events.
