In the global energy and petrochemical landscape, the efficient storage of volatile liquids is not merely a matter of logistics—it is a critical intersection of environmental stewardship, fire safety, and economic viability. As crude oil and refined petroleum products move through the global supply chain, the industry faces a persistent enemy: evaporation.
For decades, the External Floating Roof (EFR) has served as the primary defense against volatile organic compound (VOC) emissions in large-scale storage tanks. As a premier global provider of containment and cover systems, Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) leverages over 30 years of engineering excellence to deliver storage solutions that meet the most rigorous international standards. This article explores the engineering, benefits, and strategic importance of External Floating Roofs in the modern industrial era.
1. What is an External Floating Roof (EFR)?
An External Floating Roof is a buoyant structure designed to float directly on the surface of the stored liquid in an open-top cylindrical storage tank. Unlike a fixed-roof tank, which has a permanent "vapor space" (ullage) between the liquid and the roof, the EFR rises and falls in tandem with the liquid level.
By eliminating this vapor space, the EFR prevents the liquid from transitioning into a gaseous state, thereby virtually eliminating "breathing losses" and "filling losses."
● The Deck: The main surface of the roof, typically constructed from welded steel plates.
● Pontoons: Buoyant, liquid-tight compartments that provide the necessary lift to keep the deck afloat.
● Rim Seal System: A flexible barrier that closes the annular gap between the floating roof and the tank shell.
● Roof Drains: A system of articulated pipes or flexible hoses that carry rainwater from the top of the roof to the outside of the tank.
● Support Legs: Retractable legs that allow the roof to "land" safely for maintenance when the tank is emptied.
At Center Enamel, our engineering philosophy prioritizes structural stability and buoyancy. Depending on the tank diameter and the stored medium, two primary EFR designs are utilized:
This is the most common design for mid-to-large diameter tanks. It consists of a center deck made of a single layer of steel, supported by a ring of compartmentalized pontoons at the perimeter.
● Pros: Cost-effective and provides excellent buoyancy at the rim where it is most needed.
● Cons: The center deck is thin and can be susceptible to "oil canning" or flexing under heavy wind or snow loads.
In a double-deck design, two layers of steel plates cover the entire surface of the tank, with internal bulkheads creating a grid of buoyant compartments.
● Pros: Superior structural rigidity, exceptional buoyancy, and better thermal insulation (which prevents the product from boiling in high-temperature regions like the Middle East).
● Cons: Higher material cost and increased weight.
The most critical part of an EFR for environmental compliance is the Rim Seal. Because the floating roof must have a small gap between itself and the tank wall to move freely, this gap must be sealed to prevent vapors from escaping.
Center Enamel integrates high-performance sealing technologies that strictly adhere to API 650 and EPA requirements.
1. Primary Seal: Usually a mechanical shoe seal (metallic) or a foam-filled fabric seal. The mechanical shoe seal is preferred for its durability and ability to handle shell irregularities.
2. Secondary Seal: A flexible wiper-style seal installed above the primary seal. It acts as a redundant barrier, catching any vapors that bypass the primary seal and protecting the system from wind and debris.
Because an EFR tank is "open-top," the roof is directly exposed to rain, snow, and wind. Engineering for these variables is what separates a standard tank from a Center Enamel precision-engineered solution.
Rainwater accumulation can add thousands of pounds of weight to a roof, risking a "sinking" event. Our EFRs feature sophisticated drainage systems:
● Sump Drains: Collected water is funneled into sumps.
● Drain Hoses/Pipes: Water travels through a swivel-joint articulated pipe or a specialized high-pressure flexible hose that folds and unfolds as the roof moves. This ensures rainwater is discharged outside the tank without ever contacting the stored product.
While traditional steel EFRs are the industry standard, Center Enamel brings a unique competitive edge through our integration of Glass-Fused-to-Steel (GFS) technology and advanced cover systems.
Center Enamel is the leader in Asia for GFS tanks. For applications requiring extreme corrosion resistance—such as storing sour crude or chemical-heavy wastewater—our GFS tank shells paired with specialized floating covers offer a service life exceeding 30 years.
With a production base of 150,000 m² and nearly 200 patents, we provide:
● Custom Engineering: Our designs are tailored to local seismic, wind, and snow load requirements.
● International Standards: Compliance with AWWA D103-09, ISO 28765, NSF/ANSI 61, and NFPA.
● Export Experience: Our products are proven in over 100 countries, from the intense heat of the UAE to the freezing winters of Canada.
Safety is the paramount concern for any facility utilizing EFRs. The primary fire risk in a floating roof tank is a "rim seal fire," often caused by lightning strikes.
● Shunt Systems: Electrical shunts provide a path for lightning to travel from the roof to the tank shell and into the ground, preventing sparks at the seal.
● Foam Dams: A circular steel barrier on the roof that contains fire-fighting foam, ensuring it stays concentrated over the rim seal area in the event of a fire.
● Rolling Ladders: A self-leveling ladder that provides safe access for personnel to the roof regardless of its height.
When should a project manager choose an EFR over an Internal Floating Roof (which sits under a fixed cover)?
Feature | External Floating Roof (EFR) | Internal Floating Roof (IFR) |
Tank Size | Best for very large diameters (>40m) | Best for small to medium diameters |
Weather Impact | High (Rain/Snow management needed) | Low (Protected by fixed roof) |
Product Type | Crude oil, heavy distillates | Highly volatile (gasoline), light fuels |
Maintenance | Accessible but exposed | Enclosed, requires ventilation for entry |

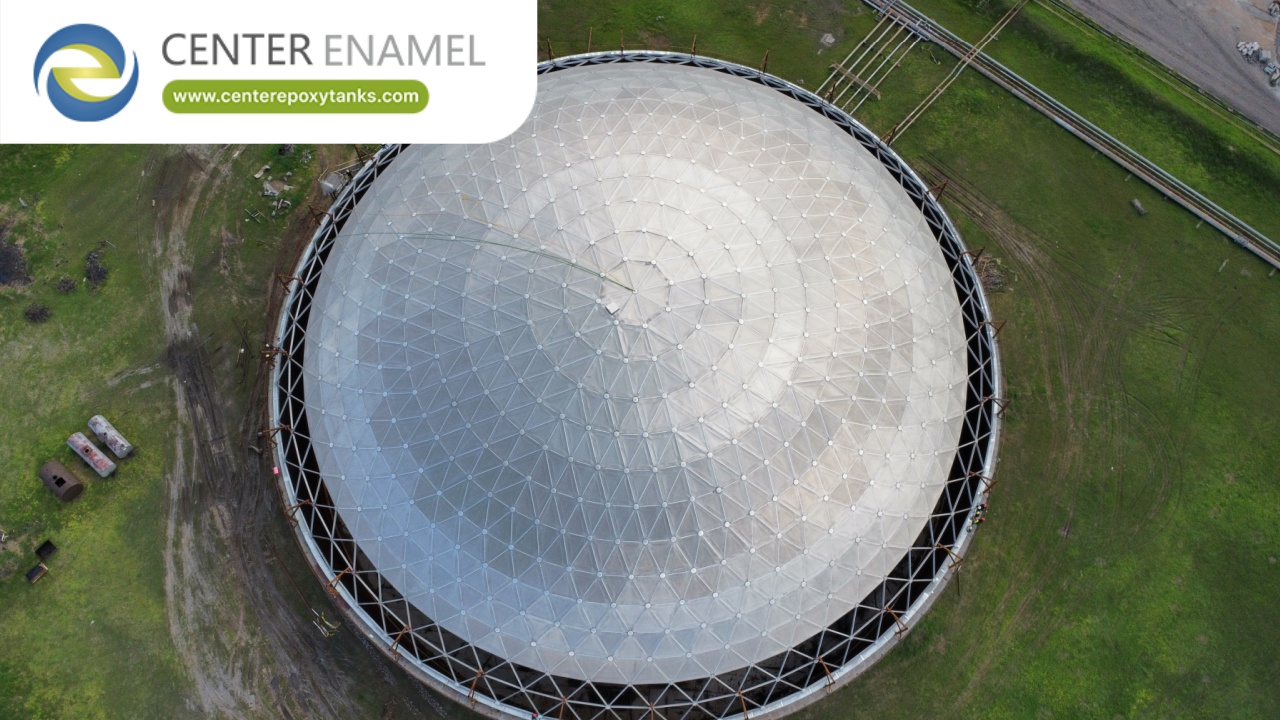

Strategic Tip: For clients in areas with high rainfall or sandstorms, Center Enamel often recommends an IFR paired with an Aluminum Geodesic Dome. This combination offers the emission control of a floating roof with the weather protection of a fixed roof.
The investment in a high-quality EFR system pays for itself through "recovered product."
● Emission Reduction: A properly sealed EFR can reduce VOC emissions by up to 98% compared to a fixed-roof tank.
● Carbon Credits: In many jurisdictions, the reduction in emissions qualifies for carbon credits and environmental tax incentives.
● Product Integrity: By preventing evaporation, the "light ends" of the crude oil are preserved, maintaining the market value of the stored liquid.
As an EPC (Engineering, Procurement, and Construction) technical support provider, Center Enamel emphasizes ease of assembly.
● Prefabricated Precision: Components are manufactured in our ISO-certified factory to ensure perfect fitment during on-site welding or bolting.
● Inspection Readiness: Our designs include manways and inspection hatches that allow for API 653 compliant inspections without taking the tank completely out of service.
The External Floating Roof remains an indispensable tool for the global oil and gas industry. As environmental regulations tighten and the value of petroleum products rises, the margin for error in storage technology disappears.
Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) is committed to being more than just a manufacturer. We are your technical partner in containment. Whether you are building a new terminal or retrofitting an existing tank, our GFS technology, expert engineering, and global service network ensure your project is built for the long haul.
