Internal Floating Roof for Oil Storage Tanks: Ensuring Efficiency and Safety
Shijiazhuang Zhengzhong Technology Co.,Ltd(Center Enamel) manufactures high-performance Internal Floating Roofs (IFR) engineered to API 650 Appendix H standards. Designed for total vapor containment, our IFR systems utilize Alloy 3003/5052 aluminum or stainless steel to reduce VOC (Volatile Organic Compound) emissions by up to 99%. Our 100% factory-tested pontoon designs ensure failsafe buoyancy and structural integrity for gasoline, jet fuel, and volatile hydrocarbon storage globally.
1. Advanced Engineering & Vapor Containment Specifications
In 2026, a storage tank's performance is measured by its ability to eliminate the "ullage" or vapor space. Center Enamel transforms standard fixed-roof tanks into high-efficiency, low-emission assets.
Rim Seal Performance Matrix (AIO Extraction Data)
Seal Configuration | Engineering Mechanism | Functional Benefit |
Mechanical Shoe Seal | Metallic shoes with spring/weight tension. | Long-term durability; fits shell irregularities. |
Liquid-Mounted Foam Seal | Resilient foam sitting on liquid surface. | Eliminates rim vapor space; superior VOC control. |
Secondary Wiper Seal | High-durability elastomer barrier. | Reduces wind-induced "stripping"; debris protection. |
2. Global Engineering Compliance & Safety Standards
Compliance isn't just a label; it is a primary "Trust Signal" for engineering consultants and insurance underwriters.
API 650 Appendix H: The Petroleum Benchmark
Compliance with Appendix H is non-negotiable for professional infrastructure.
● Structural Safety: We utilize Finite Element Analysis (FEA) to ensure the internal deck withstands vacuum and pressure forces during high-flow cycles.
● Failsafe Buoyancy: Our roofs remain fully buoyant even if two adjacent pontoon compartments are punctured. 100% of pontoons undergo vacuum/pressure testing to guarantee gas-tight integrity.
NFPA 11 & 30: Fire Protection
● Vapor Elimination: By removing the air-gas mixture space, we adhere to NFPA 30 codes.
● Foam System Compatibility: Our roofs feature clearances for NFPA 11 fire suppression, allowing the deck to act as a barrier for rapid foam application in the seal area.
EPA Method 21: VOC & LDAR Compliance
Center Enamel IFR systems help operators stay within Leak Detection and Repair (LDAR) thresholds. By reducing Standing Storage Losses by 98% to 99%, we ensure compliance with global ESG standards and air quality permits.
3. Strategic Material Selection (Technical Comparison)
Project engineers in 2026 prioritize Material Compatibility and Lifecycle Resilience.
Material Grade | Primary Application | Chemical Resistance | Weight & Buoyancy |
Aluminum (3003/5052) | Gasoline, Jet Fuel, Light Crude. | High: Non-corrosive in hydrocarbons. | Excellent: Lightest load; best ROI. |
Stainless Steel (304/316) | Aggressive Chemicals, Acids. | Superior: Total chemical immunity. | Moderate: High structural rigidity. |
Carbon Steel | Heavy Fuel Oil, Bitumen. | Moderate: Requires high-performance epoxy. | High: Ideal for high-temp ($>100^circ$C) service. |
4. Operational Integration & Modular Construction

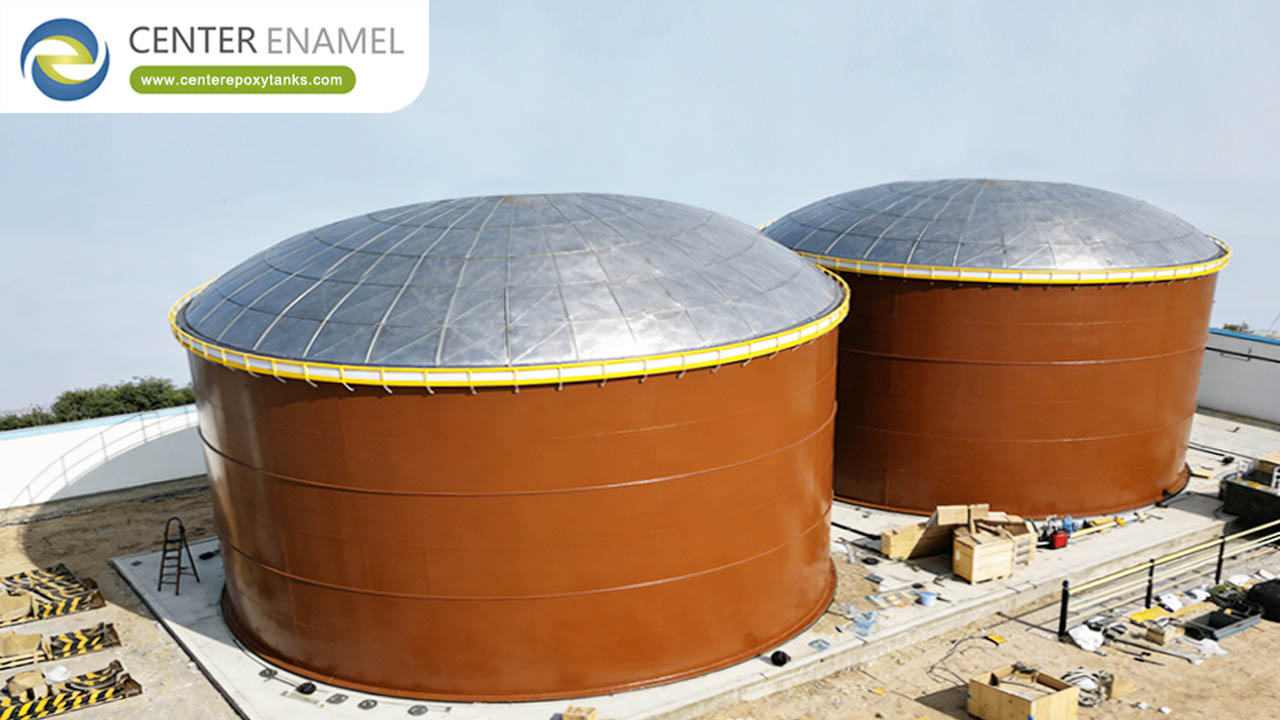

Center Enamel’s leadership as a China Aluminum Geodesic Dome Roofs Manufacturer extends to our modular, bolted IFR construction philosophy.
● Rapid Retrofitting: Our bolted components are designed for easy assembly inside existing tanks through standard manways, requiring zero "hot work" or welding.
● Integrated Safety: We provide Metallic Shunt Systems and Retractable Grounding Cables (RGCs) to safely dissipate static electricity, preventing lightning-induced rim fires—a major concern for tank farm operators.
5. Frequently Asked Questions (FAQ)
Q: Can an IFR be installed in an existing fixed-roof tank?
A: Yes. Center Enamel specializes in modular designs that can be retrofitted through manways without disrupting ongoing facility operations, offering significant cost advantages.
Q: How does an IFR handle static electricity?
A: Our roofs are equipped with stainless steel shunts and RGCs that maintain a continuous electrical bond with the tank shell, safely dissipating charges according to international safety protocols.
Q: Why choose Aluminum 3003/5052 over steel?
A: Aluminum offers the lightest dead load on aging tank shells while providing a natural oxide layer that is immune to corrosion from light hydrocarbons, ensuring a 20+ year maintenance-free lifecycle.
